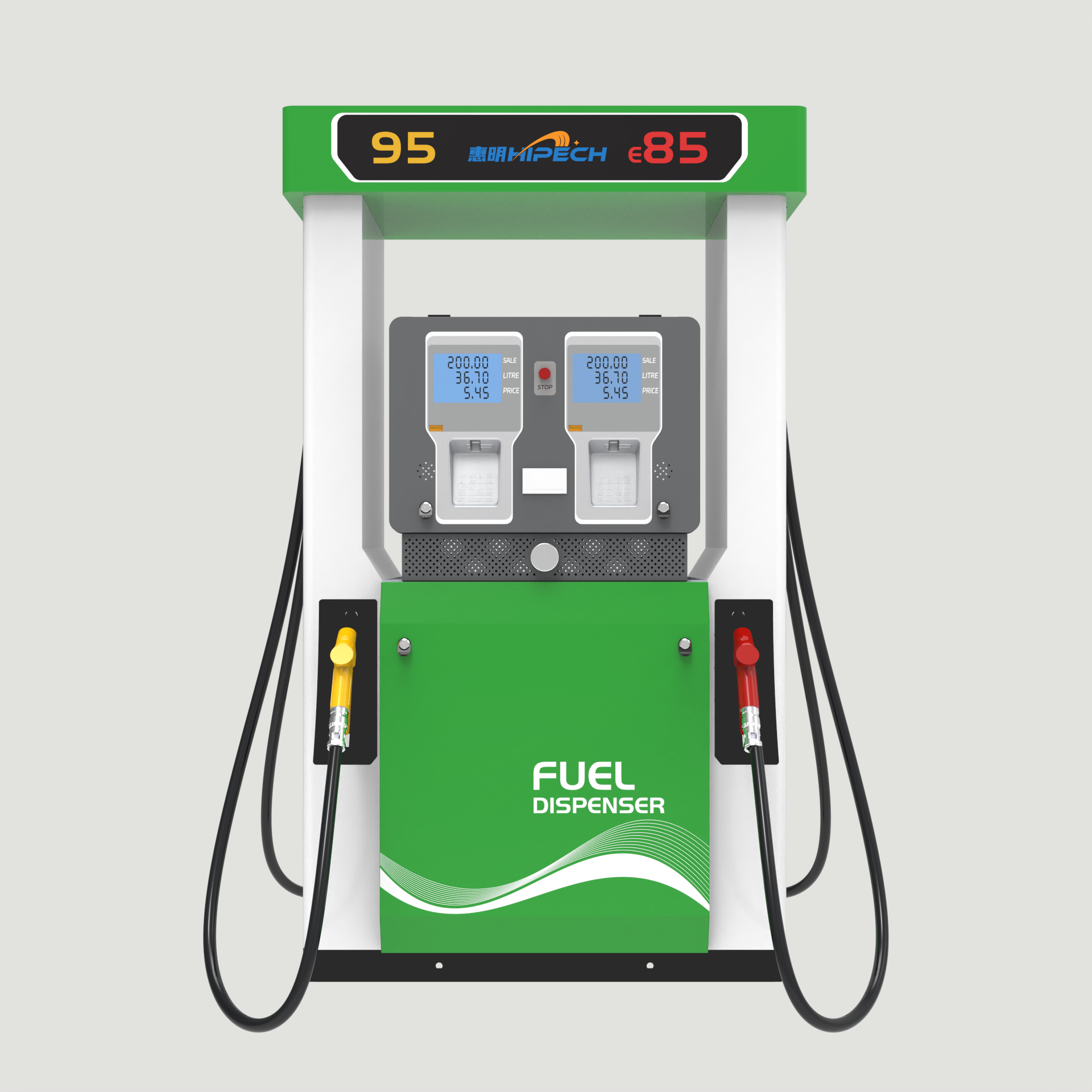

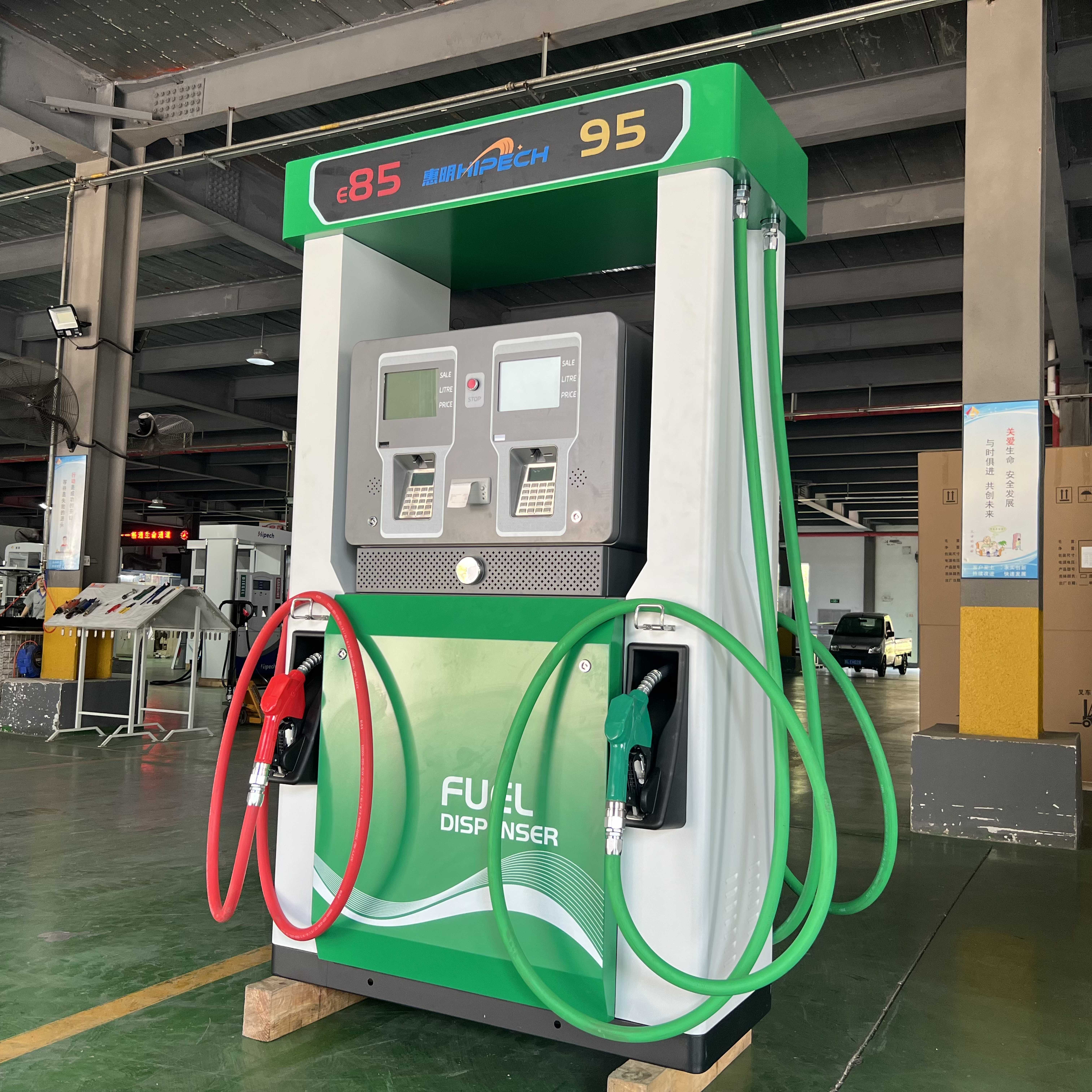

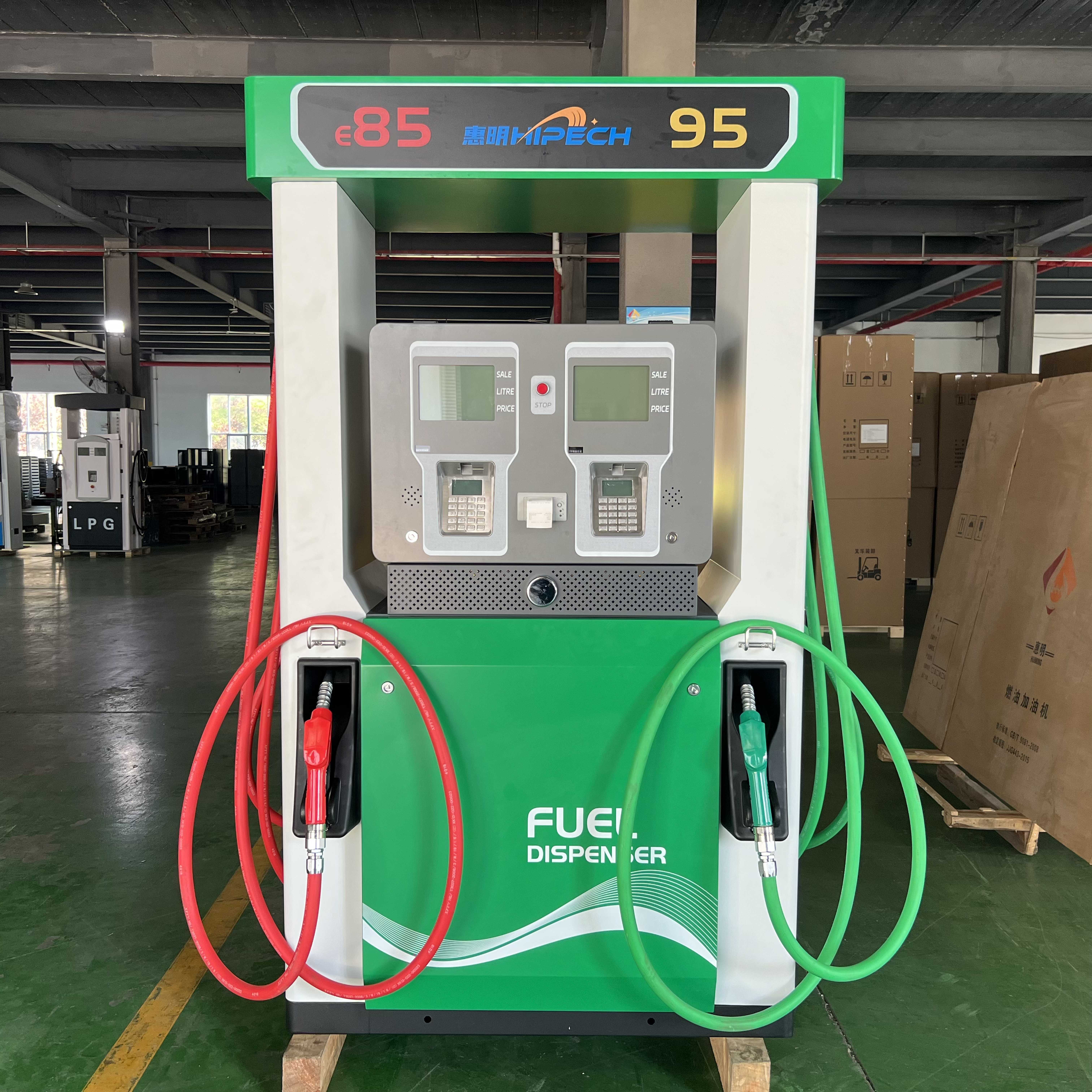

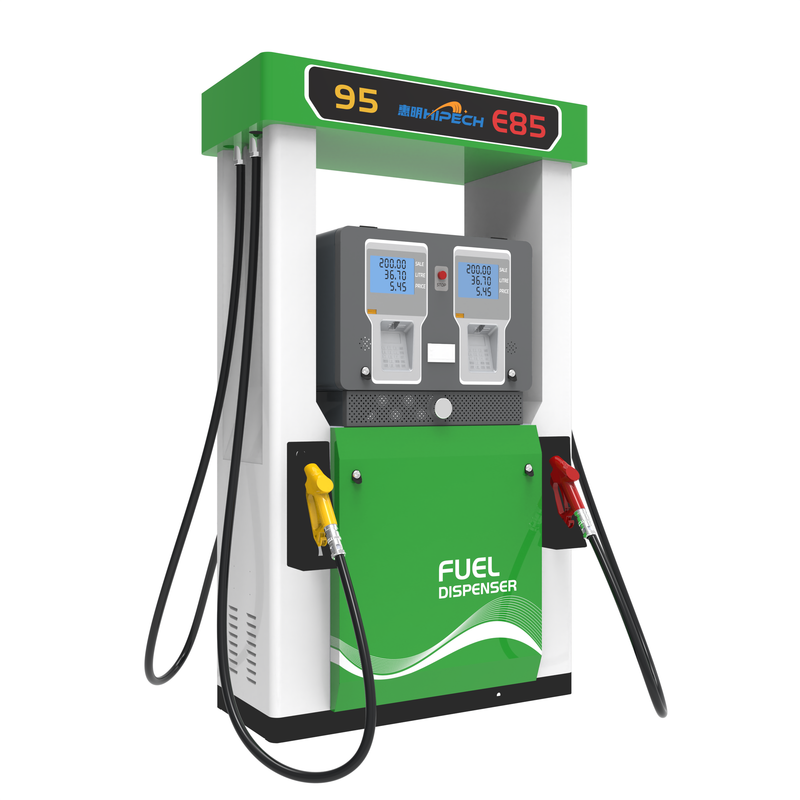

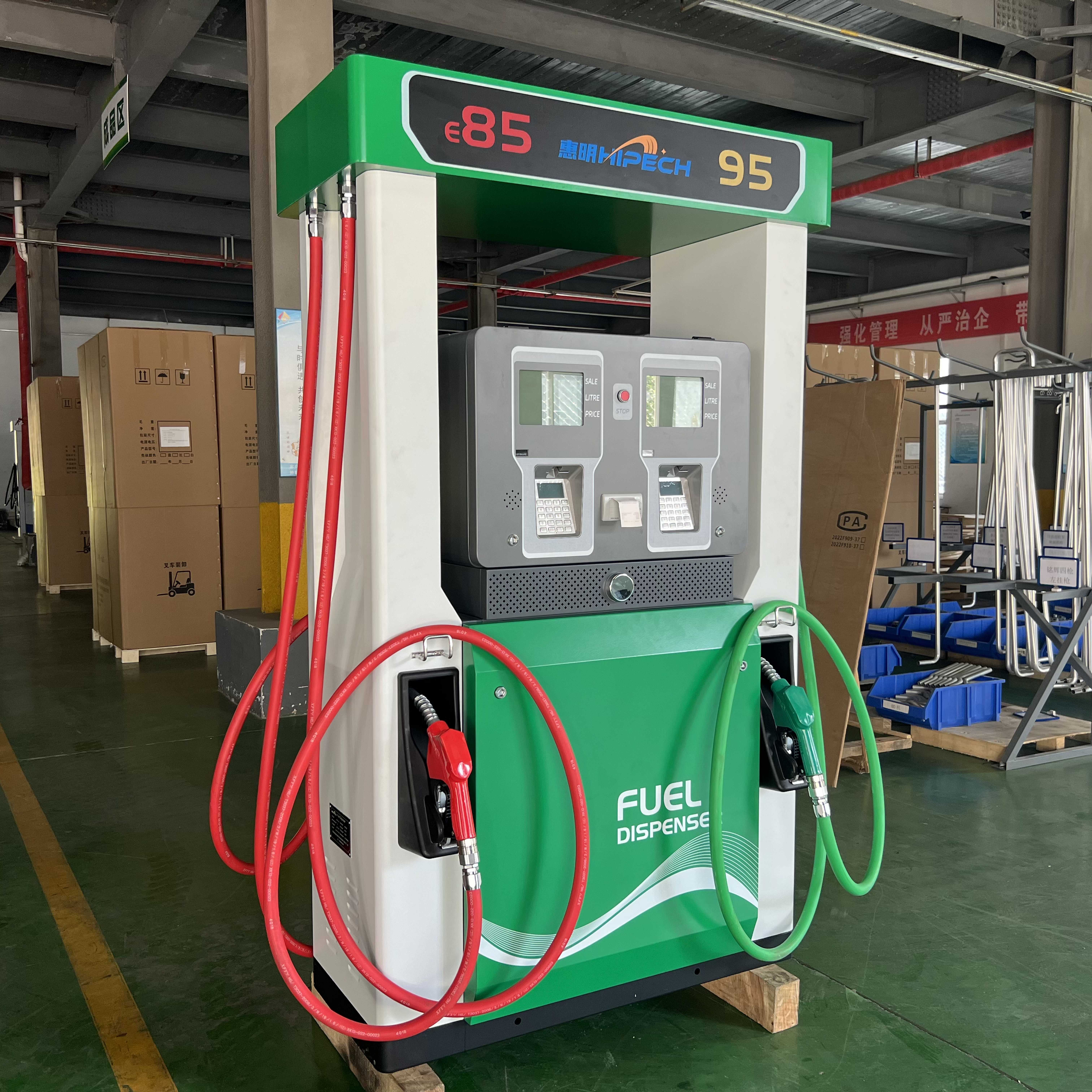

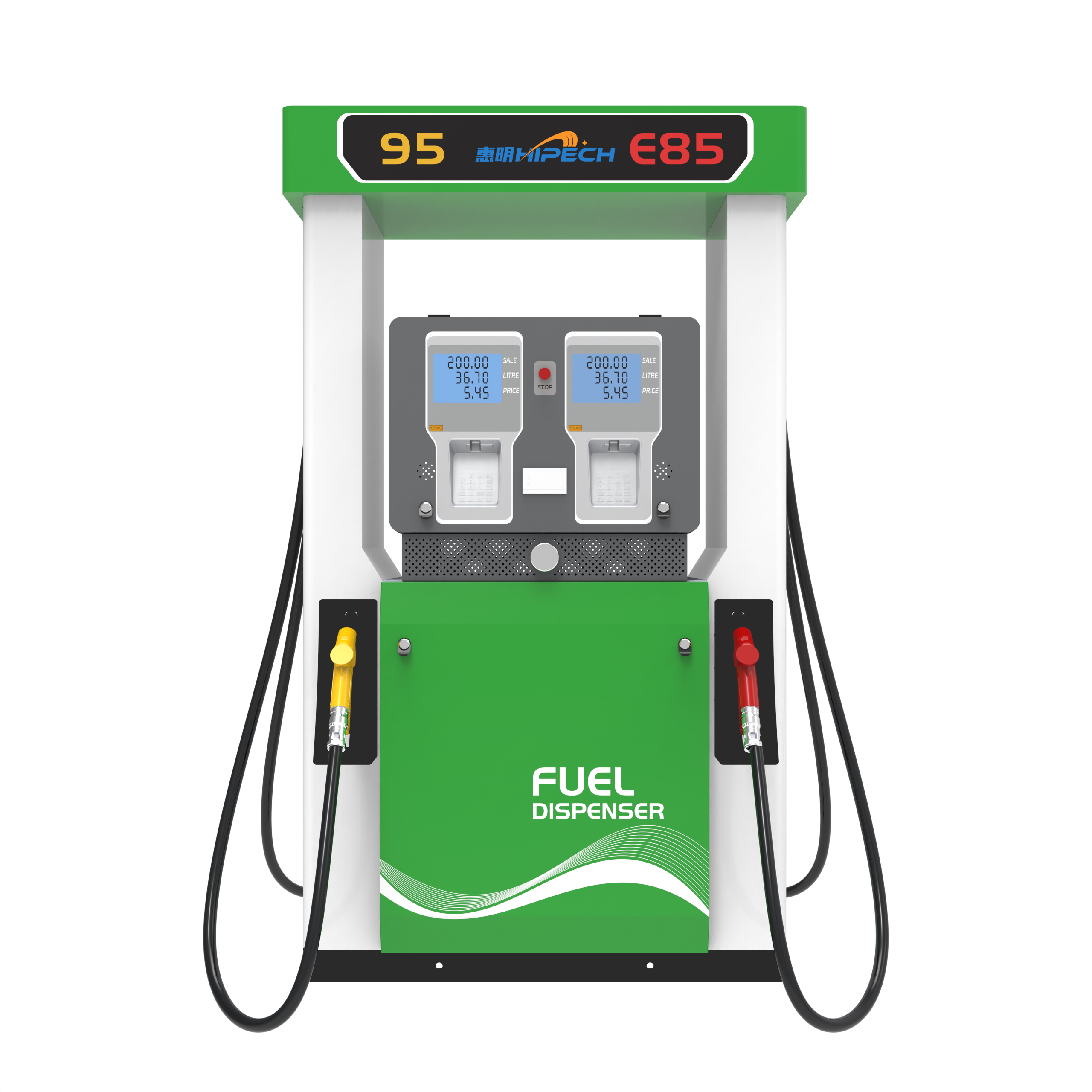

H3 Fuel Dispenser Pump with Universal Fuel Dispenser Filter Replacement Part for 2 Or 4 Nozzles Models

Hipech H3 Fuel Dispenser with 4 Nozzles 2 Products
-4 display screens
-Pump:Submersible pump (No pump)
Gear pump、 Combined pump as option
-3/4 Nozzle*4
-3/4 black hose with 4.5M*4
-4 plastic nozzle holders
-Breakaway couplings
-7-bit counter
-ESD device
-Emergency stop switch
-Flow Meter:Supertech flowmeter
-Package:Standard export carton
-Packing Size: 1420*770*2540
-Gross Weight:280Kg
  • H3

  • hmhipech

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


H3 Fuel Dispenser Pump with Universal Fuel Dispenser Filter Replacement Part for 2 or 4 Nozzles Models
Shandong Hipech International Trade Co., Ltd.
Affiliated to Rizhao Huming Machinery Co., Ltd., the company was established in 2008. It integrates industry and trade, with a focus on scientific and technological innovation.
Our factory is equipped with professional production lines and a full set of high-standard spraying and sheet metal processing equipment. What's more, the core components of the machines are independently developed and produced by our company, which ensures product quality and boosts production efficiency.
Hipech has always pursued excellence. We are committed to providing customers with high-quality products and first-class services, aiming to achieve win-win cooperation.

Product Video
Quality Assurance

product lineup consists of a number of variations to meet the requirements of both sites and customers.The dispenser is highly customizable, from the width of the body, suction, flow rate, number of products and many more.
Function Features

Boasts a minimalist exterior paired with an intricately designed internal structure.
Metal wiring is neatly arranged, clearly labeled, facilitating hassle - free maintenance.
Equipped with a high - quality electronic system that delivers dependable performance.
Features a thick galvanized sheet casing, offering robustness, rust resistance, and enhanced durability.
Gear Pump

We adopt Sipu gear pumps, which deliver greater flow rates to satisfy the fuel dispenser's demand for rapid refueling, thereby enhancing refueling efficiency. These pumps are characterized by durability and dependability, contributing to an extended service life. Additionally, they boast strong self-priming capabilities and are simple to maintain.

Combined Pump
The Maide combination pump features low noise levels and an extended lifespan. It's simple to maintain and comes with a variety of cover designs. Moreover, it offers excellent electromagnetic compatibility and strong anti-interference performance.
Submersible Pump
The submersible pump gets installed right inside the oil tank. Unlike typical setups, this fuel dispenser doesn’t have an internal built - in pump. When the fuel dispenser starts working, the submersible pump pulls oil out of the tank to complete the refueling process.


Application Scenario



About Us



Item

Technical parameter

Ambient temperature

-25℃~+55℃

Humidity

≤95%

Flow meter type

optional

Flow meter accuracy

≤0.3%

Motor power capacity

1HP(0.75kw)

Nozzle

auto shut-off

Repeating tolerance

≤0.15%

Suction distance

6m

Inlet pressure

≥54kpa

Outlet pressure

≤0.3Mpa

Voltage

220v/380v

Noise

≤80dB

Control type

solenoid valve control

Pump flowrate

55±5

Max flow

80L/min
