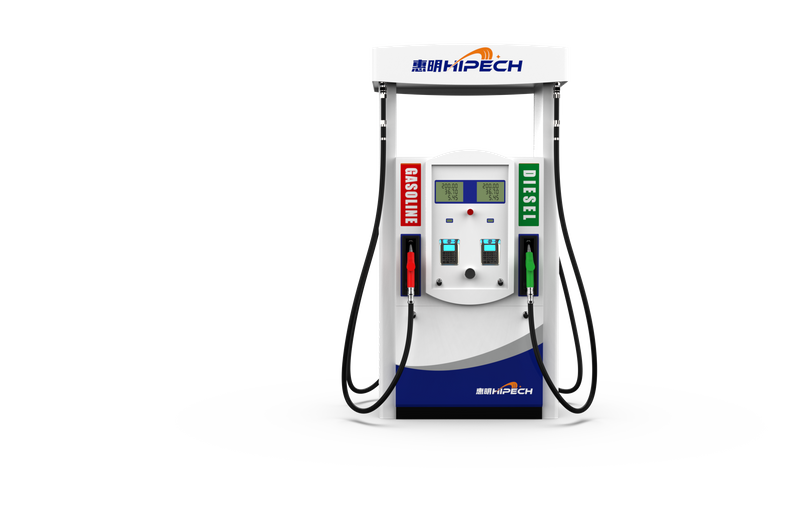

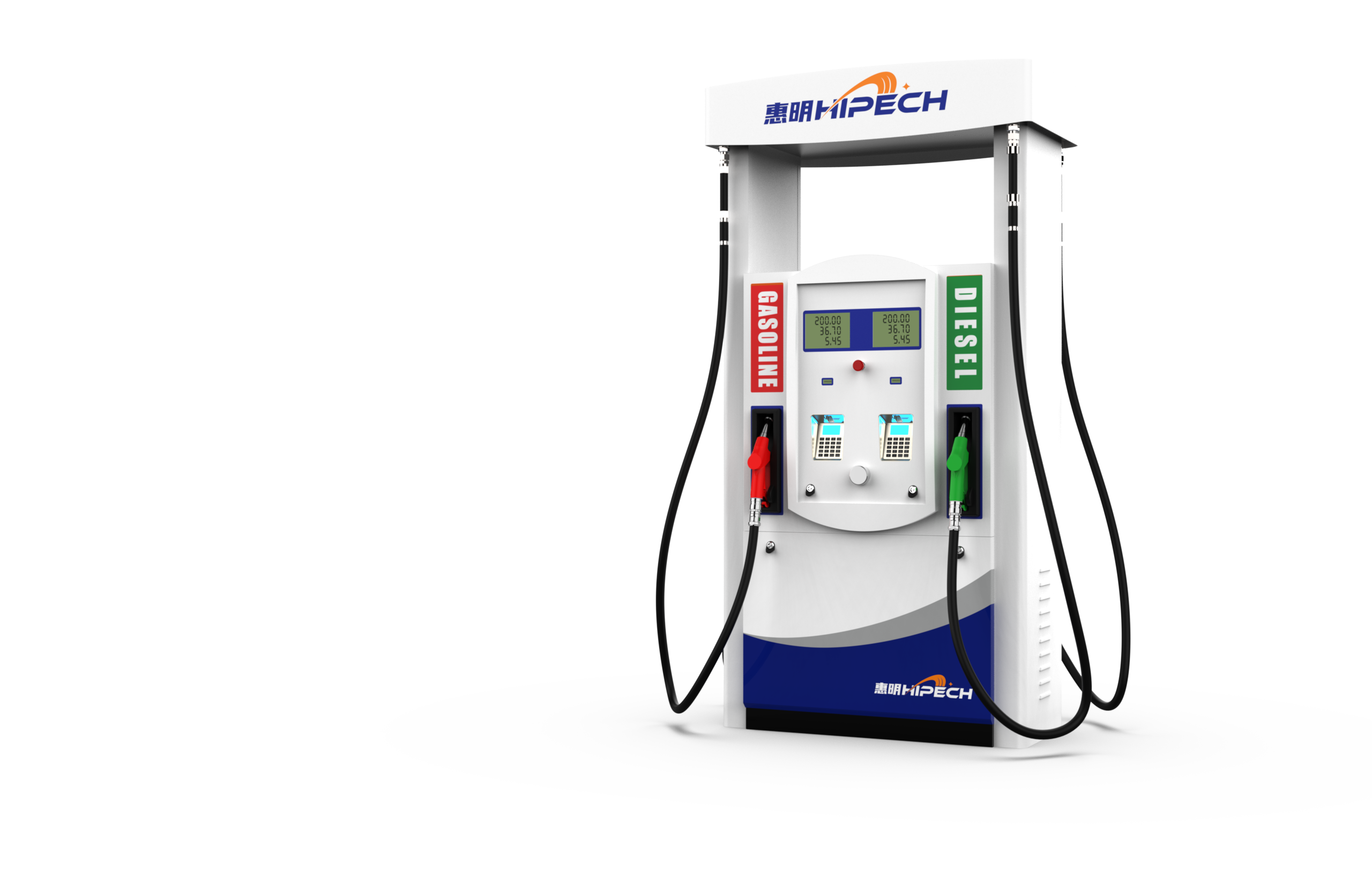

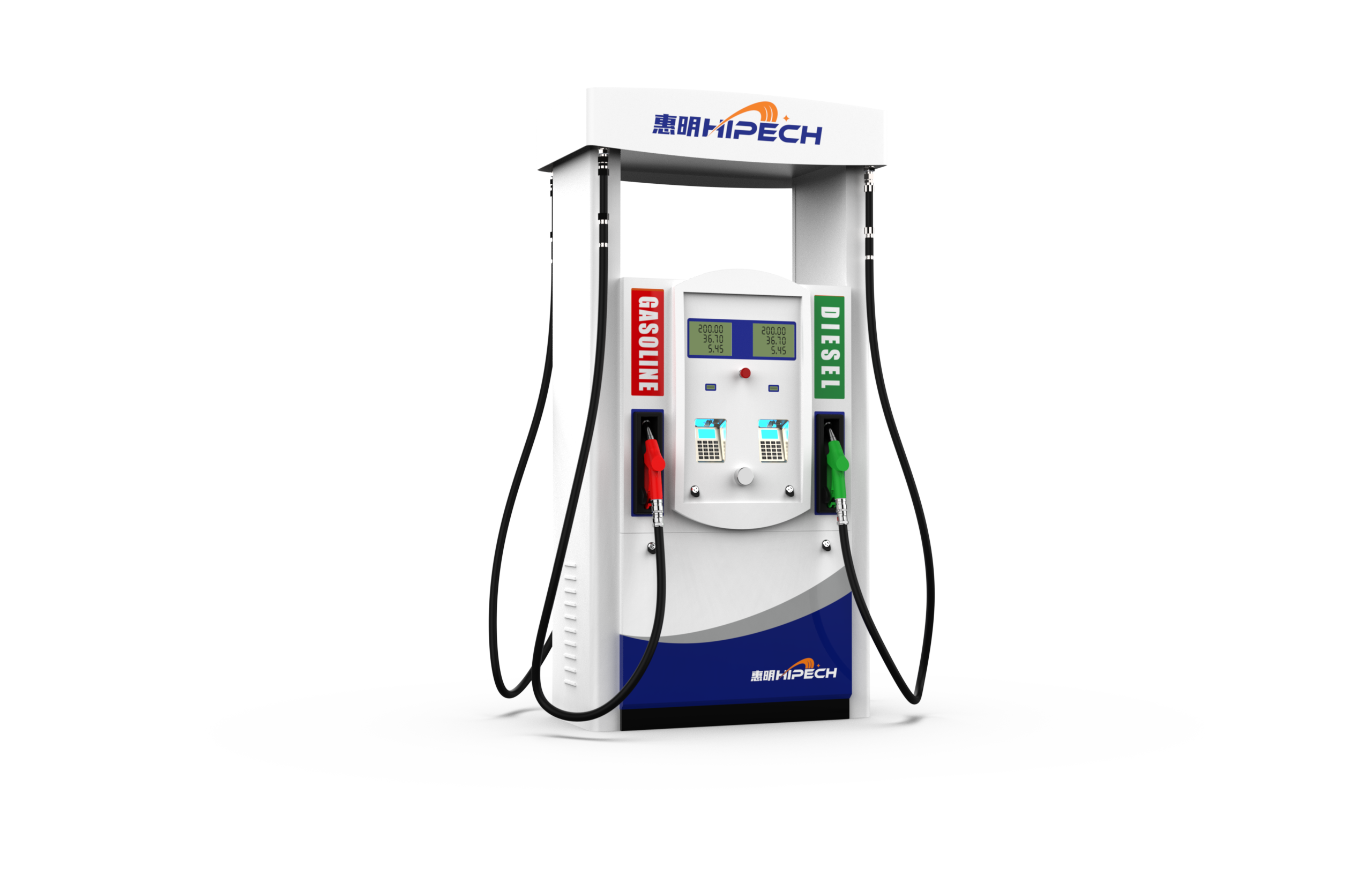

Hipech 2 Hoses Stainless Steel Fuel Dispenser Pump for Gas Station Forecourt Equipment

Hipech 2 Hoses Stainless Steel Fuel Dispenser Pump for Gas Station Forecourt Equipment
 Display and Metering Components

- 1-4 display screens
- 7-bit counter
- Supertech flowmeter
Pump Options
- Standard: No submersible pump
- Optional: Gear pump, combined pump
 Fuel Nozzles and Accessories
- 4 pcs of 3/4 inch nozzles
- 4 pcs of 3/4 inch black hoses (4.5m each)
- 4 plastic nozzle holders
- Breakaway couplings
 Safety Devices
- ESD (Electrostatic Discharge) device
- Emergency stop switch
Packaging Information
- Packaging method: Standard export carton
- Packing size: 1610*890*2540 (unit not specified, usually mm)
- Gross weight: 481Kg
  • H5 fuel dispenser

  • hmhipech

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Hipech 2 Hoses Stainless Steel Fuel Dispenser Pump for Gas Station Forecourt Equipment


Shandong Hipech International Trade Co., Ltd.
  Affiliated to Rizhao Huming Machinery Co., Ltd., Shandong Hipech International Trade Co., Ltd. was established in 2008. It is an integrated industrial and trade enterprise focusing on scientific and technological innovation.
  Our factory is equipped with a professional production line, as well as a full set of high-standard spraying and sheet metal processing equipment. Notably, the core components of our machines are independently developed and manufactured in-house. This not only guarantees product quality but also enhances production efficiency.
  Pursuing excellence is Hipech's enduring goal. We are committed to providing customers with high-quality products and top-tier services, aiming to achieve mutually beneficial cooperation.

Product Video
Operational Advantages

Support multiple cards for diverse customer groups.
Enable fast, convenient payment with optional handheld POS, compatible with UnionPay, credit/debit cards, and IC cards. Multimedia payments like WeChat, Alipay are also supported.
Feature simple yet refined appearance and structure, neat metal wiring for easy maintenance.
Functional Configurations

Complete functions: emergency stop, ESD, hose balancer/hook, etc.
Durable build: thick galvanized sheet shell, rust - resistant.
Expandable design: Symmetrical, modular, extendable from 4 to 8 nozzles.
Equipped with a 15 - inch multimedia screen.
Gear Pump

We employ Sipu gear pumps, which offer higher flow rates to meet the fuel dispenser's need for quick refueling, thus boosting refueling efficiency. These pumps are noted for their sturdiness and reliability, helping to prolong service life. What's more, they feature powerful self-priming performance and are easy to maintain.

Combined Pump
The Maide combination pump stands out with low noise and a long service life. Maintenance is hassle - free, and it has diverse cover designs. Additionally, it exhibits outstanding electromagnetic compatibility and robust anti - interference capabilities.
Submersible Pump
Submersible pumps are installed directly inside oil tanks. Unlike conventional configurations, this fuel dispenser lacks an internal built-in pump. During operation, the submersible pump draws oil from the tank to facilitate the refueling process.


Application Scenario



About Us



Item

Technical parameter

Ambient temperature

-25℃~+55℃

Humidity

≤95%

Flow meter type

optional

Flow meter accuracy

≤0.3%

Motor power capacity

1HP(0.75kw)

Nozzle

auto shut-off

Repeating tolerance

≤0.15%

Suction distance

6m

Inlet pressure

≥54kpa

Outlet pressure

≤0.3Mpa

Voltage

220v/380v

Noise

≤80dB

Control type

solenoid valve control

Pump flowrate

55±5

Max flow

80L/min
