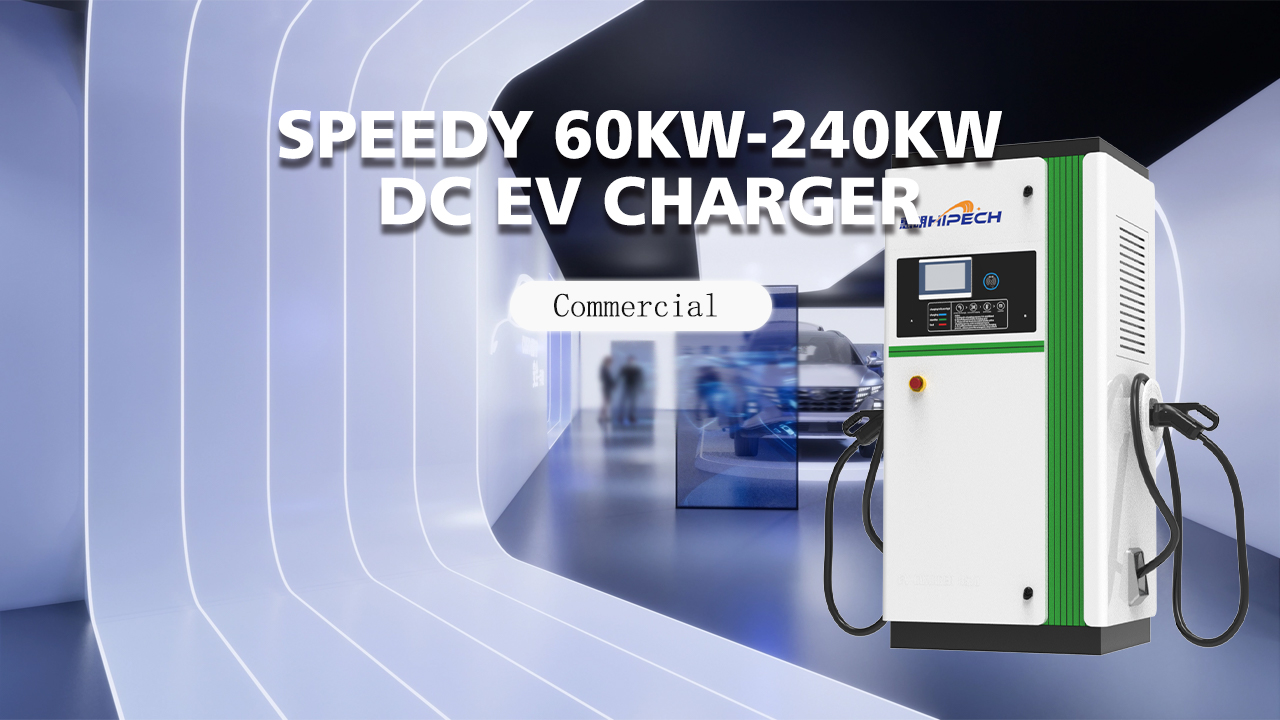

Speedy 60-240 KW DC EV Charger Station – Modular High-Power Fast Charger

1. Product name: DC EV Charging Station
2. Application:Electric Car Charging
3. Output Current:160A(230A/320A/360A/480A optional)
4. Charging Mode:Dc Fast
5. Warranty:1 years
6. Lead time:10-30 days
7. Color:White, gray, Customized Color
Boasting our own manufacturing facility along with a seasoned team spanning design, pre-sales, and after-sales services, we're fully equipped to offer tailor-made solutions based on clients' specific needs. This includes personalized touches like custom logos, color adjustments, and size modifications, among other possibilities.
  • Speedy charging station

  • hmhipech

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Speedy 60-240 KW DC EV Charger Station – Modular High-Power Fast Charger
  •

  • Modular DC fast charger with configurable power output from 60 kW to 240 kW

  • High-efficiency conversion (> 95%) and optimized for low standby power

  • Supports major EV charging protocols (CCS, CHAdeMO, GB/T)

  • Robust safety protection: over-current, over-voltage, temperature, leakage, surge

  • Networked management via OCPP, 4G / Ethernet / Wi-Fi, remote diagnostics

  • Flexible payment options: RFID, App, QR code, POS

  • Durable outdoor design, IP-rated enclosure, supports harsh environments


Product Video
Use Cases:
  • Public fast-charging stations at transit hubs

  • Highway service areas / EV rest stops

  • Fleet depots (logistics, buses, commercial EV fleets)

  • Shopping mall EV charging zones

  • Smart city charging infrastructure

Benefits for Operators:

  • Scalable Deployment: Start at 60 kW, expand to 240 kW with modular upgrades

  • High ROI: High efficiency + low standby loss + networked management

  • Reliable Service: Remote diagnostics reduce downtime; safety features ensure longevity

  • User Satisfaction: Fast charging, payment flexibility, and standardized protocols

Pulg And Charger
By supporting both CCS2 and GB/T DC charging standards, the charger can serve a broader range of EV models from different regions. This increases usability, makes the charger suitable for various markets, and ensures customers can charge more vehicle types with a single device.
App Control
By supporting OCPP 1.6, the charger can communicate seamlessly with the customer’s charging management system. Users can control charging, make payments, and monitor equipment status directly from their mobile app, improving convenience and operational efficiency.
Ocpp System
The charger communicates via OCPP 1.6, allowing users to operate the device directly on the built-in 7-inch touch display or remotely through their OCPP mobile application. This provides flexible control, easier operation, and a more user-friendly charging experience.


Application Scenario



About Us



ModelHM60DCD1、HM80DCE1、HM120DCF1、HM160DCG1、HM180DCH1、HM240DCI1
Prower380Vac+10%(L1+L2+L3+N+PE)
Current60~240A
ColorWhite , gray
Temperature-20~50℃/5%~95%
Protection level≥IP54
ProtectionOvervoltage, undervoltage, overcurrent, adhesion detection, insulation , lightning , emergency stop
EnvironmentNo pollution, such as salt, acid, smoke, etc
Storage temperature-40~80℃
Altitude<2000m
Cable length5m(Optional)
Size768mm*665mm*1800mm
Weight325KG
AuthenticationThird party type testing
