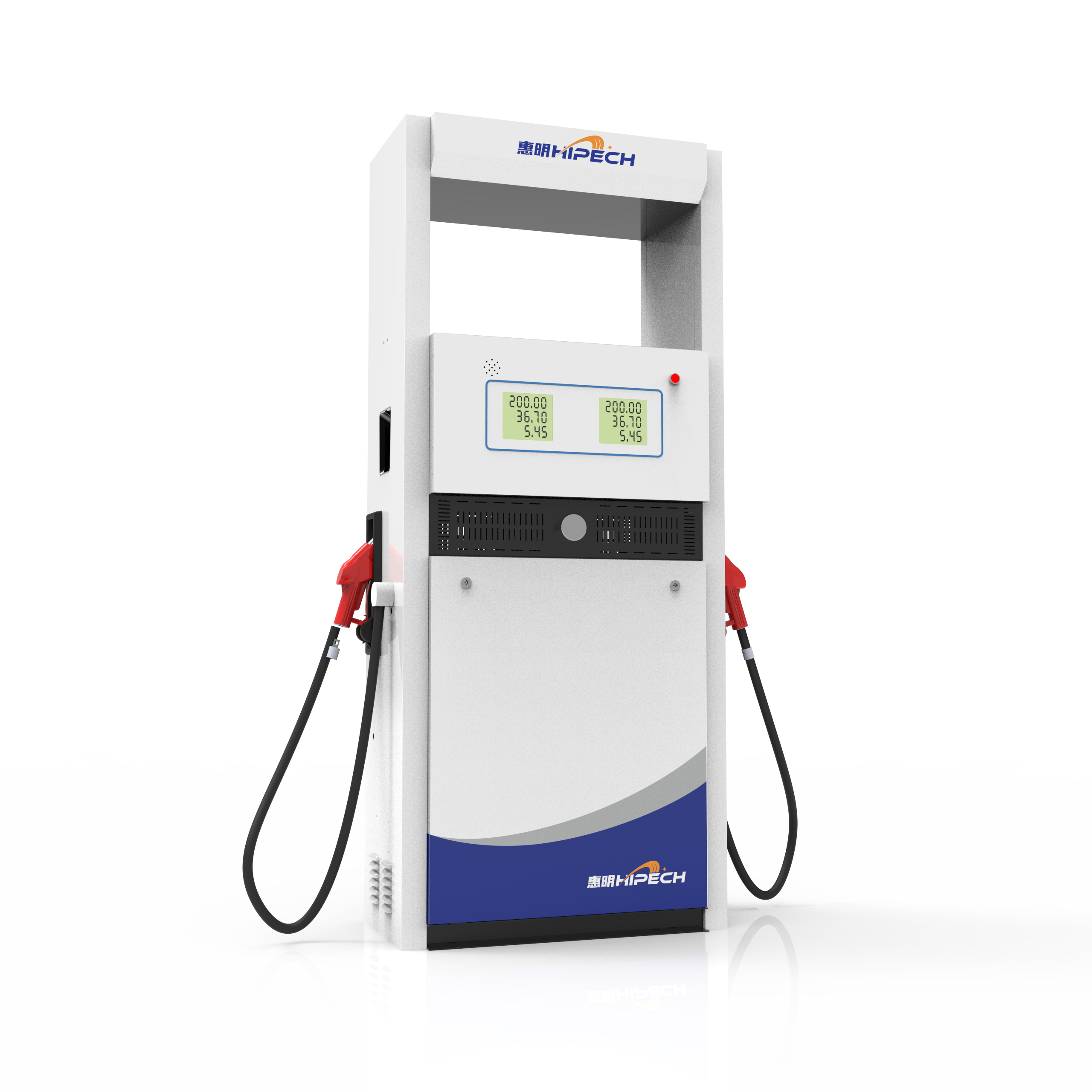

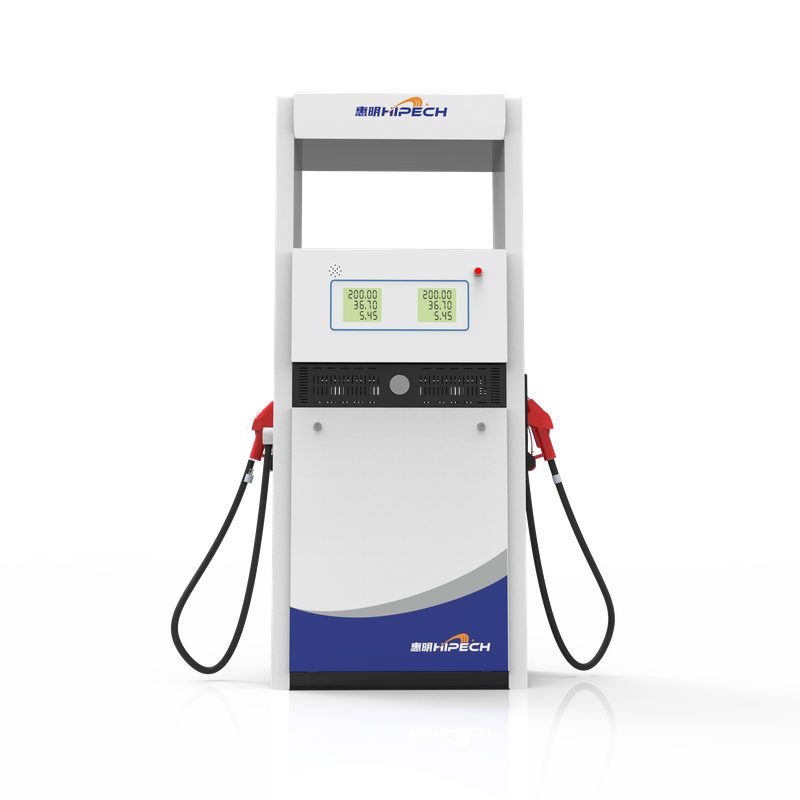

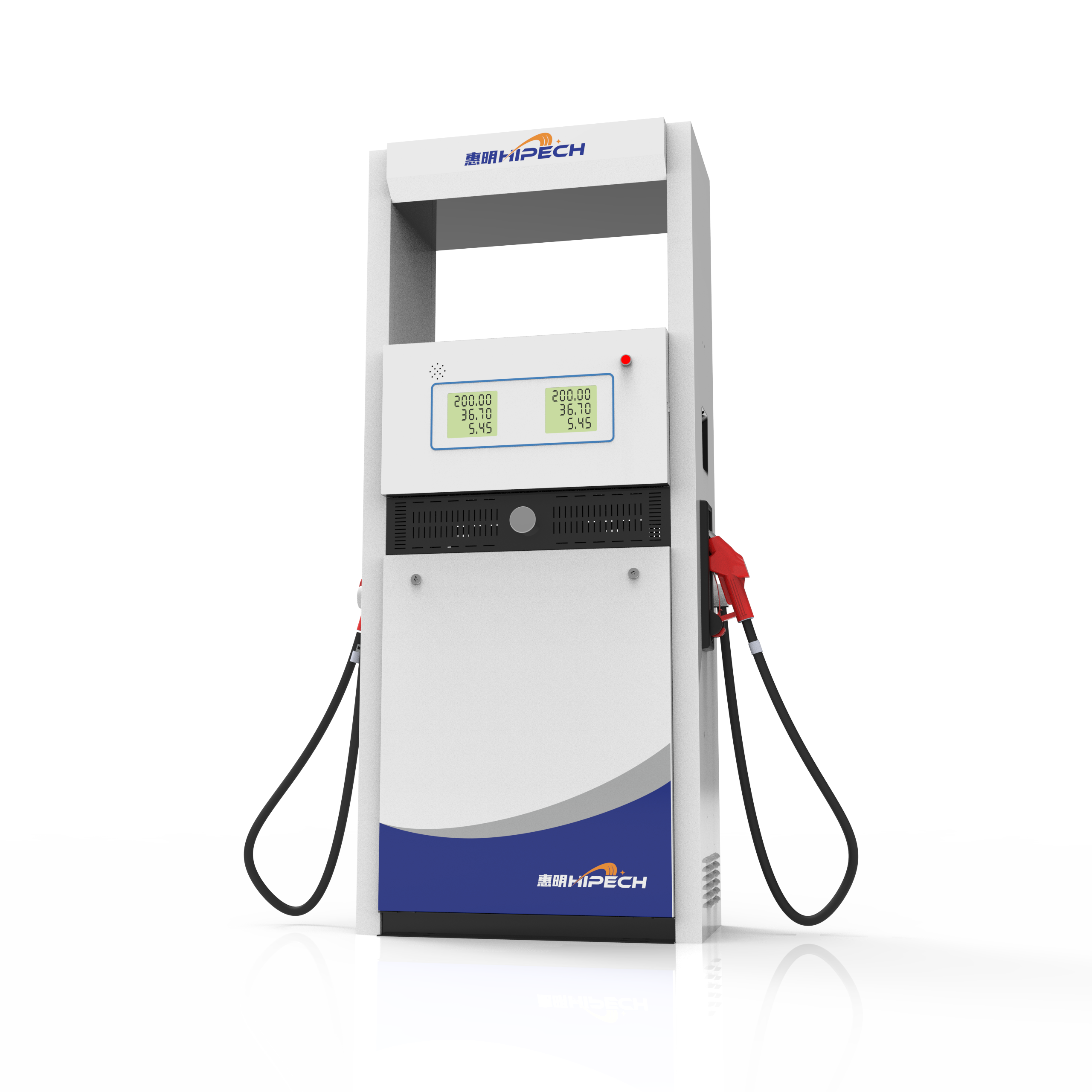

H2 Fuel Dispenser Pump for Filling Station with 2 Nozzies 2 Producls

H2 Fuel Dispenser Pump for Filling Station with 2 Nozzies 2 Producls
1.-4 display screens
2.-Pump:Submersible pump (No pump)Gear pump、Combined pump as option
3.-314 Nozzle'2
4.-3/4 black hose with 4.5M*2
5.-2 aluminum nozzle holders.
6.-Breakaway couplings
7.-7-bit counter
8.-ESD device
9.-Emergency stop switch
10.-Flow Meter:Supertech flowmeter
11.-Package:Standard export carton
12.-Packing Size:560*1020*2230
13.Gross Weight168Kg
  • H2 fuel dispenser

  • hmhipech

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


H2 Fuel Dispenser Pump for Filling Station with 2 Nozzies 2 Producls


Shandong Hipech international Trade Company Limited belongs to Rizhao HuimingMachineryCompany Limited, founded in 2008, is an industrial and trade integrationof scientific and technological innovation company.Our factory also has a professional production line, a complete set of high standardsspraying andsheet metal manufacturing equipment, and the core parts of themachine are also developed and manufactured by our own company , to ensure theproduct quality of the machine, and improve the production efficiency.Striving for perfection is theeternal pursuit of Hipech, we will always strive to providecustomers with high-quality products andbest service to achieve the win-win cooperation.

Product Video
Functional Advantages

Merges a sleek look with an elaborate internal layout.
Equipped with a comprehensive configuration, including emergency stop, electrostatic discharge, and hose - related tools (balancer & hook) for user - centric service.
Delivers economic practicality, being simple and easy to operate.
Structural & Durability Traits

Allows flexible conversion to a broad spectrum of models.
Built with a thick galvanized sheet shell, ensuring strength, rust prevention, and long - term durability.
Gear Pump

We utilize Sipu gear pumps, which deliver high flow rates to enable quick refueling and enhance efficiency. These pumps are robust, dependable, and long-lived, boasting strong self-priming capability and straightforward maintenance.

Combined Pump
The Maide combination pump features low noise, a lengthy service life, simple maintenance, and a variety of cover designs. Additionally, it excels in electromagnetic compatibility and offers strong anti-interference capabilities.
Submersible Pump
Submersible pumps are placed inside oil tanks. Unlike conventional configurations, this fuel dispenser lacks an internal built-in pump; during operation, the submersible pump draws fuel from the tank to complete refueling.


Application Scenario



About Us



Item

Technical parameter

Ambient temperature

-25℃~+55℃

Humidity

≤95%

Flow meter type

optional

Flow meter accuracy

≤0.3%

Motor power capacity

1HP(0.75kw)

Nozzle

auto shut-off

Repeating tolerance

≤0.15%

Suction distance

6m

Inlet pressure

≥54kpa

Outlet pressure

≤0.3Mpa

Voltage

220v/380v

Noise

≤80dB

Control type

solenoid valve control

Pump flowrate

55±5

Max flow

80L/min
