HMhipech 60kw-240kW EV DC Fast Charging Station CCS1 CCS2 GBT Electric Car Fast Charger EV Charging Station

1. Product name:SMART DC EV Charging Station
2. Application:Electric Car Charging Station
3. Output Current:160A(230A/320A/360A/480A optional)
4. Charging Mode:Dc Fast
5. Warranty:1 years
6. Lead time:10-30 days
7. Color:White, gray, Customized Color
We have our own production factory and a mature design and pre-sales and after-sales team. We can provide customization according to customer requirements, such as logo, color, size, etc.
  • SMART

  • hmhipech

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


HMhipech 60kw-240kW EV DC Fast Charging Station CCS1 CCS2 GBT Electric Car Fast Charger EV Charging Station


Supports power range from 60kW to 320kW with a modular structure, allowing quick installation and flexible power upgrades.
Compatible with CCS2 and GBT DC charging, as well as TYPE2 and GBT AC standards, offering 1 to 3 integrated connector options for versatile charging solutions.
Specifically engineered for overseas premium markets, featuring a refined sheet metal process and reinforced structure for enhanced durability.
Rated IP65 for superior protection against dust and water, ensuring reliable operation in various environments.
Built with industrial-grade components and comprehensive safety protections for greater peace of mind.
Equipped with automatic cable management reels to keep charging cables neat, clean, and easy to handle.

Product Video
Fast Charging

Energy-saving and efficient: features a wide output voltage range, superior conversion efficiency, low standby energy consumption, and significantly lower operating costs.

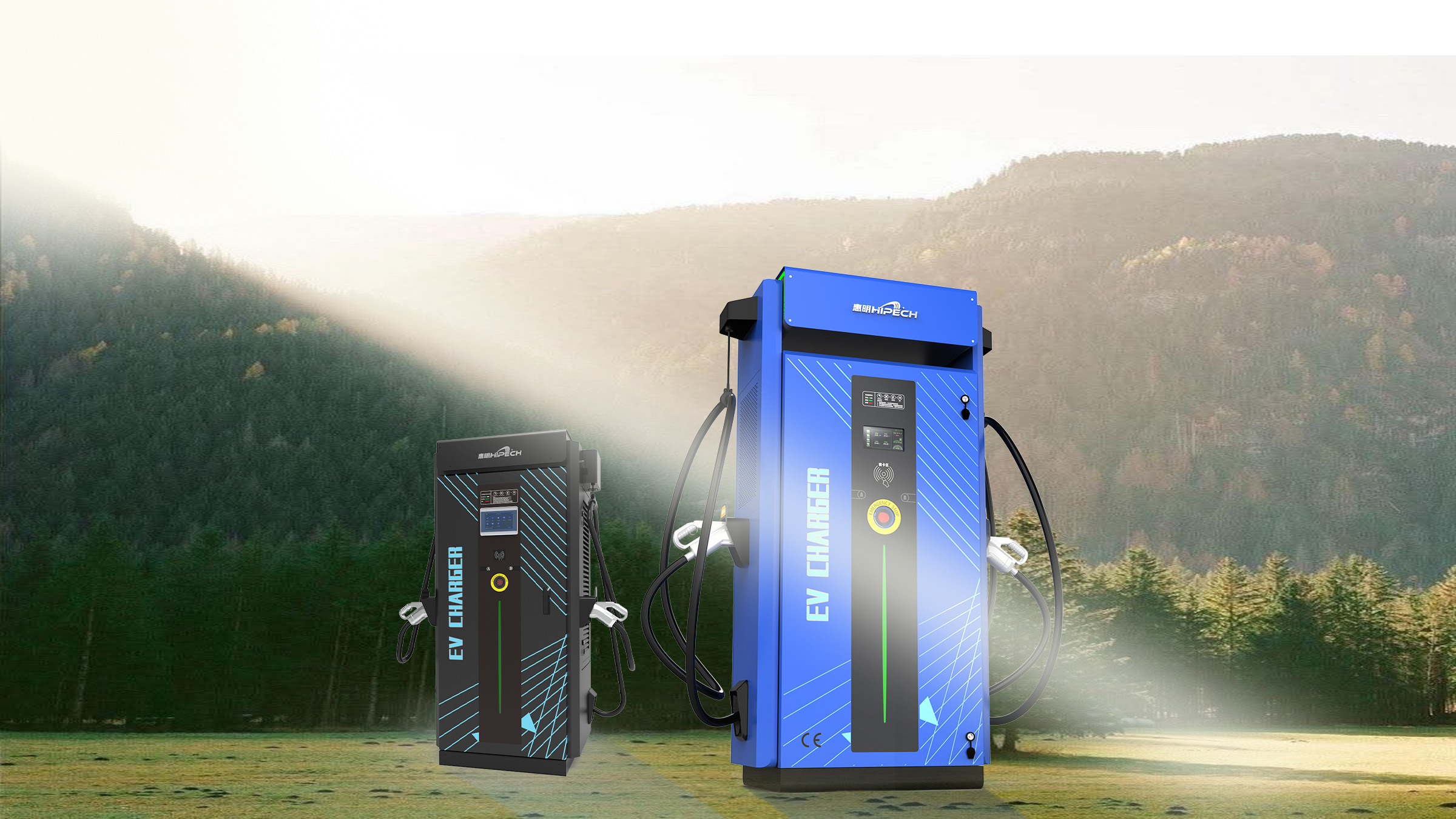

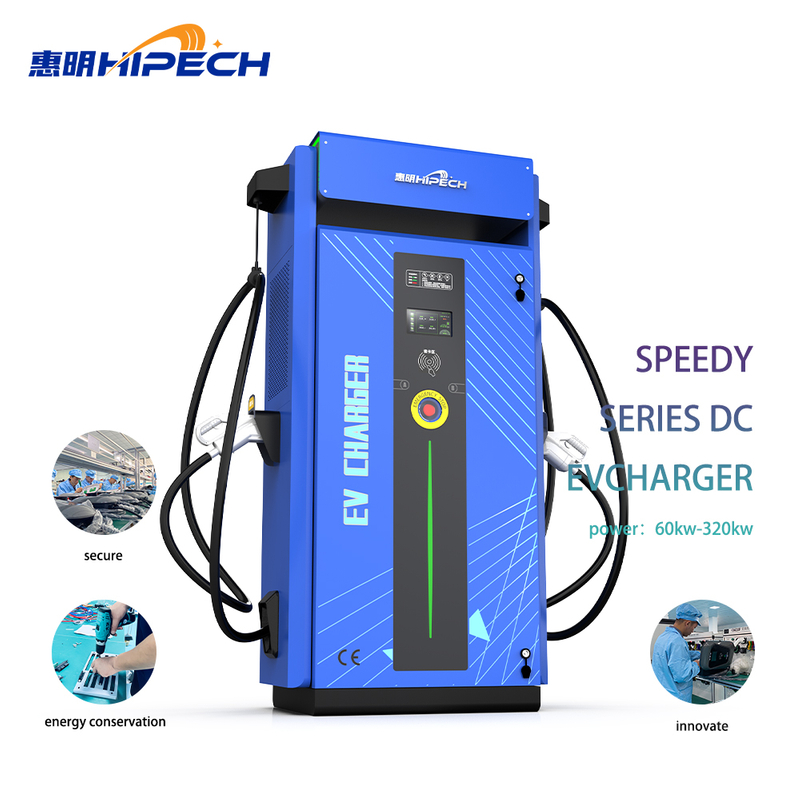

60KW-320KW SMART DC EV Charger

Premium quality and elegant design: Incorporates the signature Zhenxuan series style — minimalist, modern, and finely crafted — achieving a perfect balance between aesthetics and performance.

Safety and durability: Equipped with comprehensive protection features, including safeguards against short circuits, overheating, and emergency shutdowns. Built with high-grade galvanized steel and an anti-rust dual-layer coating for long-term outdoor use. The IP54 protection rating ensures reliable performance even in harsh weather. A well-organized internal layout and optimized airflow design minimize failure rates and enhance stability.

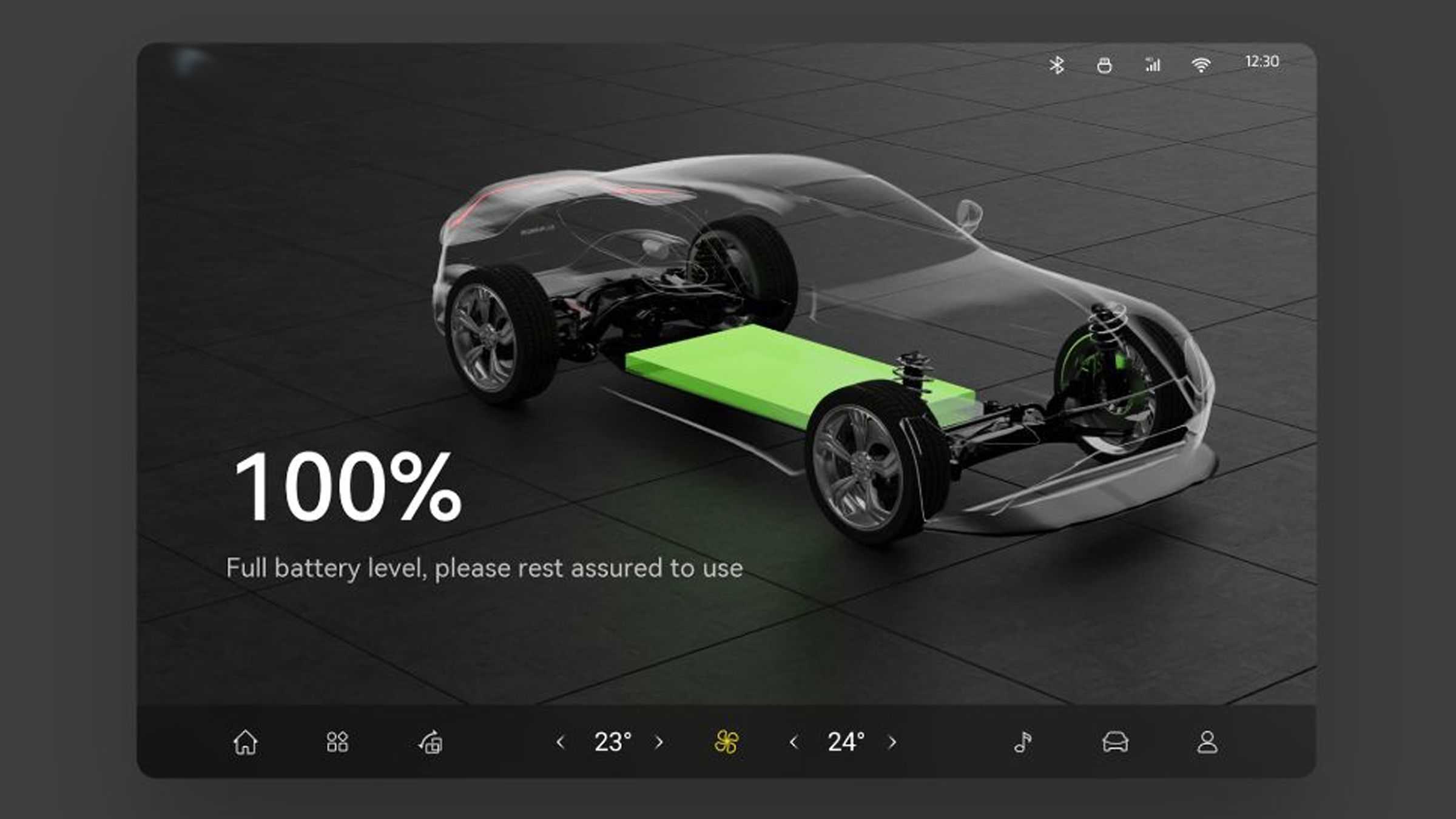

Smart interaction: Features a 7-inch full-color touchscreen for intuitive operation and intelligent human–machine interaction. Supports both Ethernet and 4G communication options. Multiple activation methods are available, including QR code scanning, RFID card, POS terminal, and VIN recognition. Offers flexible charging modes such as automatic full charge and battery-level-based charging.
Pulg And Charger
This DC EV charging station supports both CCS2 and GBT DC standards, providing versatile and flexible charging options for different vehicles.
App Control
The system integrates with the client’s OCPP 1.6 application, allowing mobile apps to control functions like initiating charging and handling payments seamlessly.
Ocpp System
Supporting OCPP 1.6, the system allows user interaction through a 7-inch touchscreen or the dedicated OCPP mobile application.


Application Scenario



About Us



ModelHM60DCD1、HM80DCE1、HM120DCF1、HM160DCG1、HM180DCH1、HM240DCI1
Prower380Vac+10%(L1+L2+L3+N+PE)
Current60~240A
Colorblue, orange,White , gray
Temperature-20~50℃/5%~95%
Protection level≥IP54
ProtectionOvervoltage, undervoltage, overcurrent, adhesion detection, insulation , lightning , emergency stop
EnvironmentNo pollution, such as salt, acid, smoke, etc
Storage temperature-40~80℃
Altitude<2000m
Cable length5m(Optional)
Size768mm*665mm*1800mm
Weight325KG
AuthenticationThird party type testing
