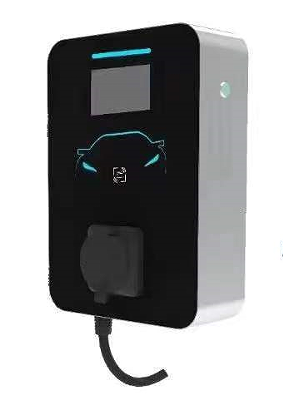

Hot Sale 11kw 22kw AC EV Charger Electric Vehicle Charging Pile 4.3-inch Touch Screen

Name: Hot Sale 11kw 22kw AC EV Charger Electric Vehicle Charging Pile 4.3-inch Touch Screen
Brand: hipech
Rating: 5.0 (59 reviews)

1、Product Model: 11kw 22kw ac ev charger
2、Design standard: GB/T 18487. 1-2015, GB/T 20234-2015;

3、Input voltage: 340-460v;
4、Charging gun: single gun;
5、Rated charging current: 16A,32A;
6、Optional color: star gray,black;
7、Display interface: LED lights;
8、Operating temperature / humidity: -20 ~ 55 ℃ / 5% ~ 95%;
9、Protection grade: ≥ IP54;

The AC charging pile is easy to operate. Users only need to plug in the charging gun, start charging through the mobile phone APP or swipe the card, and they can easily recharge their car.

Model:
HA3 ac ev charger
Brand:
hipech

Quantity:
Availability:





Inquire Add to Basket

11kw 22kw AC EV Charger Electric Vehicle Charging Pile 4.3-inch Touch Screen

In the thriving era of new energy vehicles, AC charging stations—key energy replenishment facilities—provide strong support for green travel. Operating on AC power output, they connect to a vehicle’s charging port, then intelligently control and efficiently transfer power to the vehicle battery for safe, stable charging. Compatible with a broad range of vehicle models, they cater to charging needs for daily commutes and short trips.

The HA3 11kw 22kw AC EV Charger is user-friendly: just plug in the charger, and start charging via a mobile app or card swipe for easy recharging. AC charging stations are widely located in residential communities, shopping malls, and office buildings, offering flexible charging options that let you top up energy for green travel anytime, anywhere. Choose an AC charging station to embrace a low-carbon lifestyle and enjoy a hassle-free journey!

The HIPECH 11KW/22KW AC EV Charger is a high-performance charging unit designed for residential, commercial, and public charging scenarios. It supports power outputs of 11KW (3-phase, 16A) and 22KW (3-phase, 32A), is compatible with the vast majority of new energy vehicles on the market, and provides users with an efficient, stable AC charging solution.
The unit features a 4.3-inch high-definition color touchscreen that displays key information—such as charging status, energy level, voltage, current, and cost—at a glance, ensuring intuitive and convenient operation. Users can start or stop charging and view records directly on the screen, or utilize flexible access methods including RFID cards, mobile app QR code scanning, and Bluetooth/WiFi connectivity to suit various usage habits.
The housing boasts an IP65 ingress protection rating and an IK08 impact resistance rating. It incorporates ten layers of safety protection—including safeguards against over-voltage, over-current, over-temperature, leakage, short circuits, and surges—and operates reliably in temperatures ranging from -30°C to +55°C, making it suitable for harsh outdoor weather. It supports the OCPP 1.6J protocol and offers 4G/Ethernet remote communication and OTA upgrade capabilities, allowing for easy integration with major charging operation platforms.
Designed for either wall-mounted or pedestal installation, the charger features a compact footprint and comes standard with a 5-meter charging cable, enabling rapid deployment in homes, residential communities, office buildings, and shopping mall parking lots. The product holds international certifications such as TUV CE and TR25, complies with IEC 61851 series standards, and offers reliable quality suitable for global use.

Product Video

Current Leak Protection

First-rate >
Leakage Ground

First-rate >
Over Current Protection

First-rate >
Over Temperature Protection

First-rate >

Lightning Protection

First-rate >
Over Voltage Protection

First-rate >
Short Circuit Protection

First-rate >
Voltage Fluctuation Protection

First-rate >

Multiple Installation Options

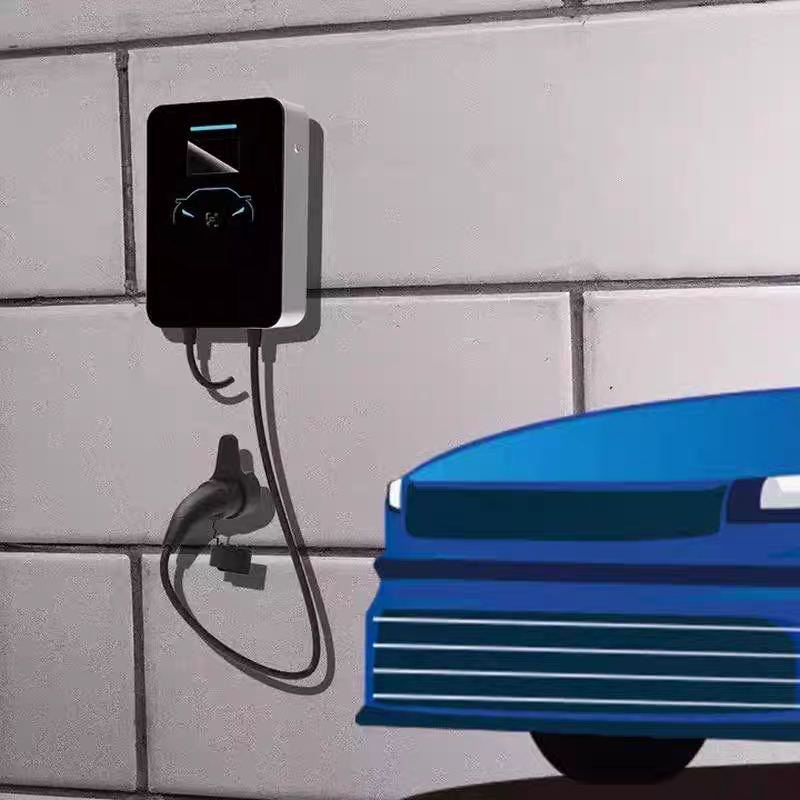

Wall-mounted: Perfect for space-constrained areas like underground parking garages and residential carports. This type of charging station not only saves space effectively but also simplifies management and maintenance work.
Pole-mounted: Suited for open locations such as commercial parking lots and highway service areas. Pole-mounted charging stations stand out with high visibility and user-friendliness, allowing users to easily locate and operate them.

Charging Activation Methods

Card Activation: Charging can be activated via a prepaid card or membership card. This straightforward, fast method is ideal for fixed user groups, including residential residents and corporate employees.
Bluetooth Activation: Users can connect their phones to the charging station via Bluetooth to start charging, eliminating the need for card contact. This approach offers greater convenience and caters to those who prioritize a tech-savvy experience.
QR Code Activation: Simply scanning the QR code on the charging station with a phone enables charging activation. This simple method is well-suited for temporary parking and charging scenarios.

Pulg And Charger

The 11kW–22kW single-gun AC charger is designed to meet the charging needs of new energy vehicles. With excellent compatibility, it can be widely applied in diverse scenarios including residential areas, business parking facilities, office complexes, and hotels, while also being well-suited for industrial parks and other applicable sites.

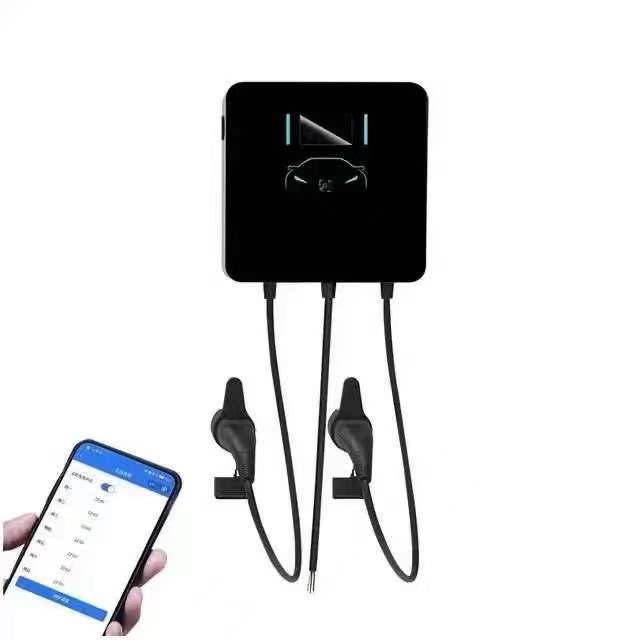

App Control

The OCPP protocol, with its open and standardized design, enables seamless compatibility between charging stations and management platforms from various manufacturers, offering users a more adaptable and efficient charging experience.

Ocpp System

Featuring versatile installation options, user-friendly operation, and robust support for the OCPP protocol, AC chargers deliver smart and efficient charging services, effectively addressing energy needs across various usage scenarios.

Application Scenario

About Us

11kw 22kw AC EV Charger Advantages

1. Flexible Power Options for Diverse Scenarios

Dual power options (11KW/22KW) with three-phase input (400VAC) to meet various vehicle and charging needs.

11KW is ideal for daily top-ups at home or in residential complexes; 22KW suits commercial sites and high-frequency usage, boosting charging efficiency by approximately 50%–100%.

Power factor >0.99 ensures high efficiency and energy savings; standby power consumption is less than 10W.

2. Comprehensive Safety Protection for Peace of Mind

IP65 ingress protection and IK54/IK08 impact resistance; withstands outdoor wind, rain, dust, and accidental impacts.

Type A + DC 6mA leakage protection for precise detection of AC and DC leakage currents.

10-layer safety protection: over-voltage, over-current, over-power, over-temperature, under-voltage, short-circuit, emergency stop, residual current detection, surge protection, and grounding protection.

Wide operating temperature range (-30°C to +55°C) ensures stable performance in extreme cold and heat.

3. Smart Connectivity and Convenient Control

Multiple communication methods: 4G, Ethernet, Wi-Fi, and Bluetooth for remote management anytime, anywhere.

OCPP 1.6J protocol ensures seamless compatibility with mainstream charging operation platforms.

Flexible startup options: App (scan/schedule), RFID card (ISO 14443), or Plug & Play.

OTA remote upgrades allow for continuous feature updates without the need for on-site maintenance.

4. Flexible Installation and Minimalist Design

Supports both wall-mounted and pedestal installation; suitable for residential, commercial, and parking lot applications.

Compact and lightweight unit (≤7kg, 277.5×135×408mm) saves space.

Sleek, professional appearance with customizable panels to match various environmental styles.

Standard 5m charging cable (optional 8m/10m) covers most parking scenarios.

5. International Certification and Quality Assurance

CE certified for hassle-free export to the EU and global markets.

Suitable for altitudes up to 2,500 meters; usable in most regions worldwide.

Summary

HIPECH The 11kW/22kW AC charging station features high-efficiency three-phase fast charging, military-grade protection, fully intelligent control, and internationally certified quality, making it a cost-effective choice for installations in homes, residential communities, and commercial parking lots.

11kw 22kw AC EV Charger Electric Vehicle Charging Pile EV Charger with 4.3-inch Touch Screen Dual Guns AC EV Charger Car Charging Station Electric Vehicle Charging Pile with Type 2 Hot Sale 11kw 22kw AC EV Charger

Related Products

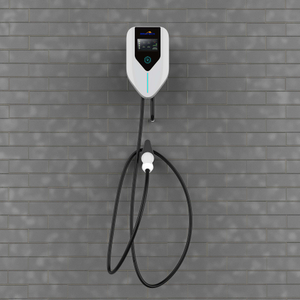

Portable Electric Vehicle Charger 32A 7KW Ev Charging Station with Screen And Bluetooth

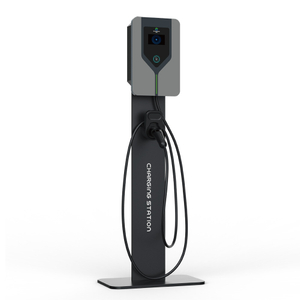

Quality AC EV Charger Station Electric Vehicle Charging Pile 14KW EV AC Charger for Sale
