We use Sipu gear pumps, which offer high flow rates for fast refueling, boosting efficiency. They are durable, reliable, long-lasting, with strong self-priming ability and easy maintenance.

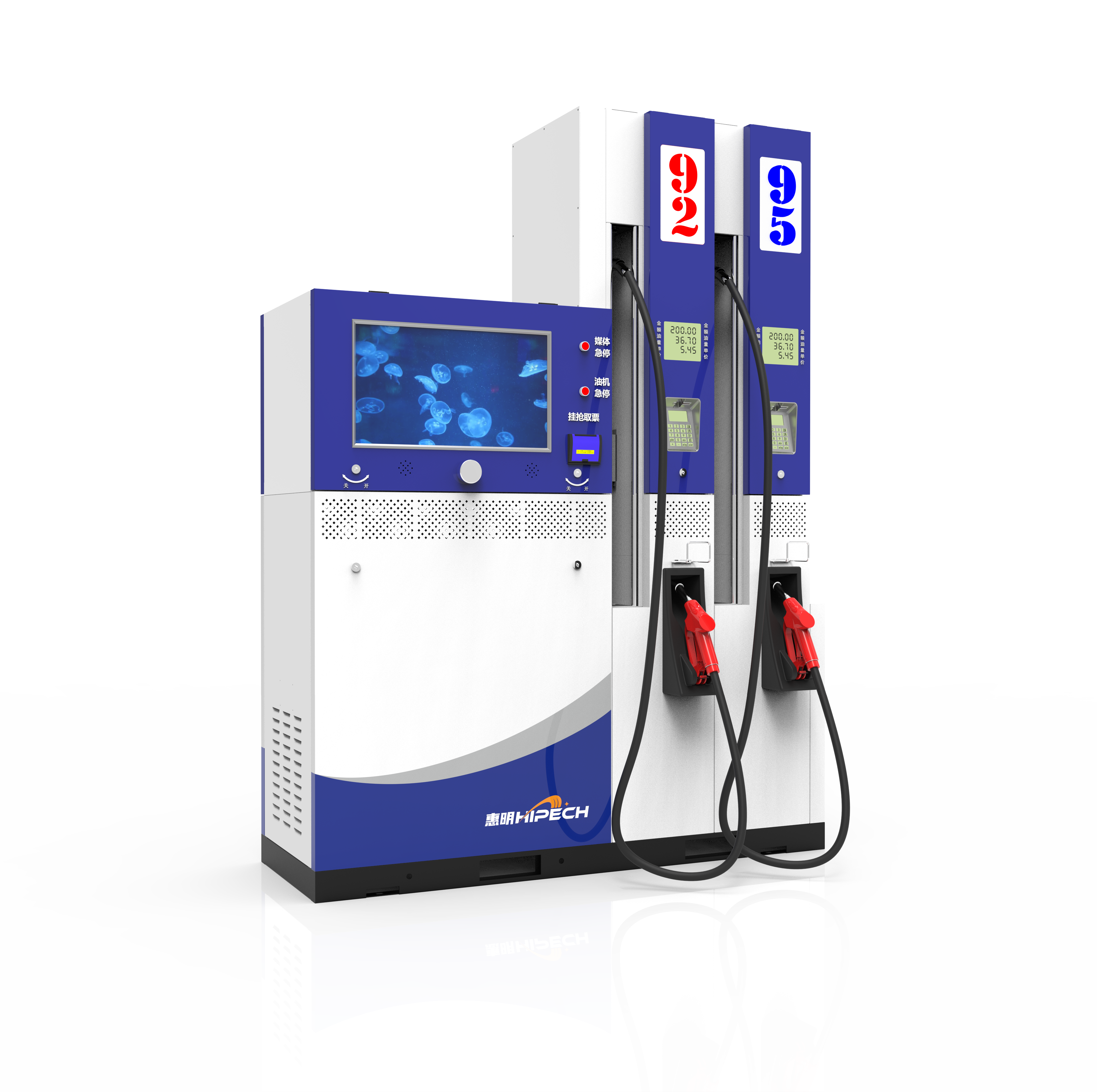

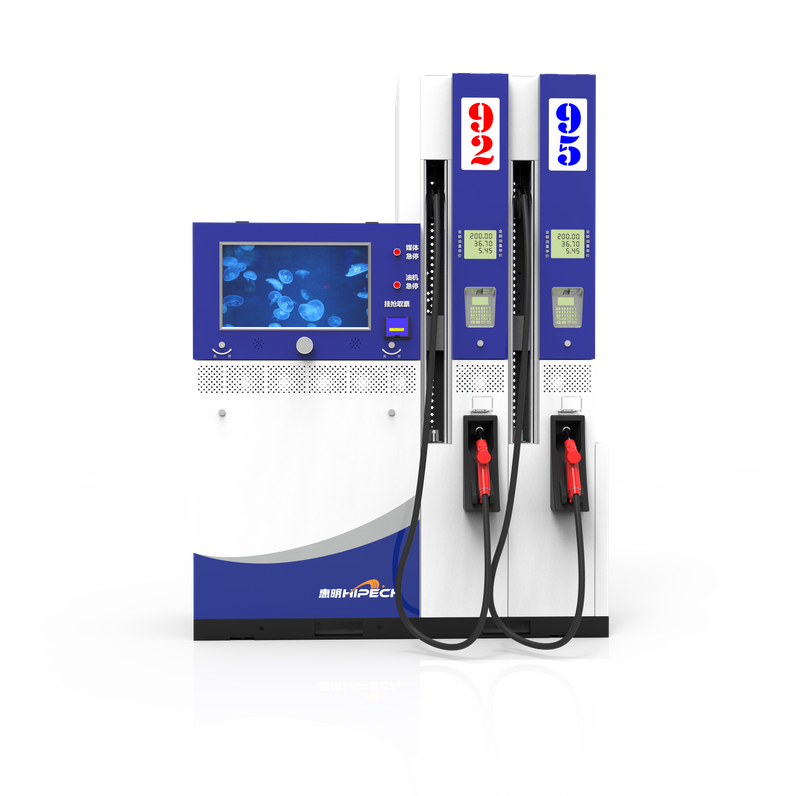

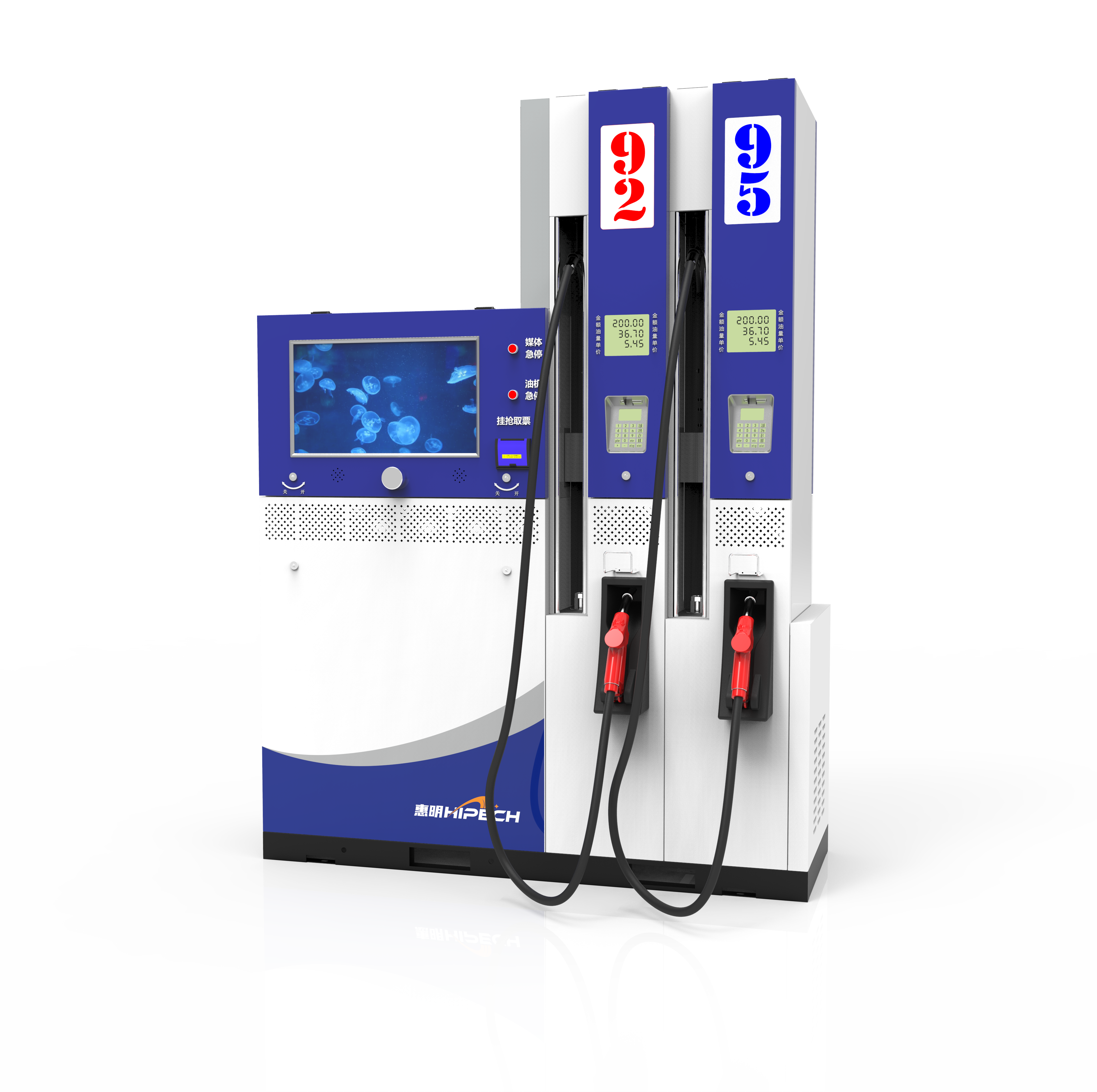

H7 fuel dispenser
hmhipech
| Availability: | |
|---|---|
| Quantity: | |
We use Sipu gear pumps, which offer high flow rates for fast refueling, boosting efficiency. They are durable, reliable, long-lasting, with strong self-priming ability and easy maintenance.
Item | Technical parameter |
Ambient temperature | -25℃~+55℃ |
Humidity | ≤95% |
Flow meter type | optional |
Flow meter accuracy | ≤0.3% |
Motor power capacity | 1HP(0.75kw) |
Nozzle | auto shut-off |
Repeating tolerance | ≤0.15% |
Suction distance | 6m |
Inlet pressure | ≥54kpa |
Outlet pressure | ≤0.3Mpa |
Voltage | 220v/380v |
Noise | ≤80dB |
Control type | solenoid valve control |
Pump flowrate | 55±5 |
Max flow | 80L/min |
