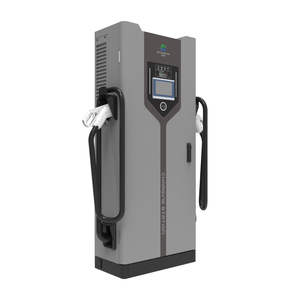

60 KW–320 KW Dual-Gun DC EV Charging Station / Waterproof, Customizable, Fast Charging

The THUNDER 60–320 kW DC EV Charging Station is a powerful, scalable fast-charging solution designed for high-traffic public parking lots, highway rest areas, commercial parking facilities, company fleets, and urban EV charging infrastructure.
With an adjustable output power from 60 kW up to 320 kW, the station can meet the charging needs of different EVs — from standard passenger cars to large-battery vehicles. Dual-gun configuration enables two vehicles to charge simultaneously, improving throughput and flexibility.
This station supports major DC protocols (e.g., CCS2, GB/T, CHAdeMO (as optional configuration)), offering broad compatibility for domestic and international EVs. Equipped with robust cooling, industrial-grade components, and a rugged, weather-resistant enclosure, the station is built for stable long-term operation even under continuous high load.
  • THUNDER

  • HMHIPECH

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
60 KW–320 KW Dual-Gun DC EV Charging Station / Waterproof, Customizable, Fast Charging
FAQ
Q1: Can this charging station charge two vehicles simultaneously?
A1: Yes, it adopts a dual-gun, dual-output design, allowing two vehicles to charge simultaneously, significantly improving efficiency.
Q2: Which electric vehicle charging standards does it support?
A2: It supports CCS2 and the national standard GB/T; if needed, it can also be configured to be compatible with CHAdeMO or other standards.
Q3: Is it suitable for outdoor/long-term continuous operation?
A3: Yes. The equipment has IP54/IP55 protection and an industrial-grade cooling and heat dissipation design, allowing for long-term stable operation outdoors or in public parking lots.
Q4: What payment/activation methods are supported?
A4: It supports multiple methods, including plug-and-charge, RFID card, mobile APP/QR code/backend system activation/payment, offering great flexibility.
Q5: What should I be aware of when deploying a fleet/commercial/high-speed charging station? A5: Ensure there is a three-phase 380V (or 400V) power supply on site, with safe power distribution and grounding. Installation should be performed by a professional electrician. It is recommended to select appropriate power and number of charging guns and customize payment and back-end management modules.

Product Video
Key Features & Benefits
From 60 kW up to 320 kW output — capable of handling large-capacity EVs and significantly reducing charging time compared to AC or lower-power chargers.
Two charging guns (connectors) allow two vehicles to charge simultaneously — improving utilization for public parking, service stations or fleet depots.
Supports CCS2, GB/T, CHAdeMO (if configured), making it suitable for a wide range of EVs across different regions.
Supports communication interfaces such as Ethernet / 4G / WiFi, compatible with common backend protocols like OCPP — enabling remote monitoring, management, billing, and integration with charging networks or fleet systems.
60KW-320KW THUNDER DC EV Charger
Large screen display + support for multiple start/authentication methods (plug & charge, RFID, app/mobile, QR code, card, etc.), convenient for public users, fleet operators or commercial deployment.
Designed for indoor or outdoor installation (parking lots, service areas, urban infrastructure), with robust enclosure, cooling, surge protection, and environmental resistance — suitable for long-term heavy-duty service.
Output power configurable within range, connector types, communication modules, screen/options, and payment/auth methods can be adjusted based on deployment context (fleet, public, commercial).
Pulg And Charger
This DC electric vehicle charging station works with both CCS2 and GBT DC standards, providing a wider range of flexible charging choices.
App Control
The system connects to the client's OCPP 1.6 app, allowing mobile applications to handle functions like initiating charging and processing payments.
Ocpp System
Compatible with OCPP 1.6, the system facilitates human-computer interaction through two channels: a 7-inch touch screen and the user’s dedicated OCPP app.


Application Scenario



About Us

Product model
SF4-080-2
SF4-120-2
SF4-160-2
SF4-180-2
SF4-240-2
Rated power
40kw
60kw
80kw
100kw
120kw
output current range
0-100A
0-125A
0-200A
0-250A
0-250A
Input voltage
380Vac±15%
380Vac±15%
380Vac±15%
380Vac±15%
380Vac±15%
ModelYH60DCD1、YH80DCE1、YH120DCF1、YH160DCG1、YH180DCH1、YH240DCI1
Prower380Vac+10%(L1+L2+L3+N+PE)
Current60~240A
ColorWhite , gray
Temperature-20~50℃/5%~95%
Protection level≥IP54
ProtectionOvervoltage, undervoltage, overcurrent, adhesion detection, insulation , lightning , emergency stop
EnvironmentNo pollution, such as salt, acid, smoke, etc
Storage temperature-40~80℃
Altitude<2000m
Cable length5m(Optional)
Size768mm*665mm*1800mm
Weight325KG
AuthenticationThird party type testing
