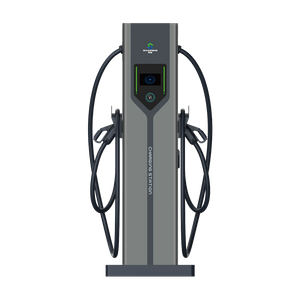

Speedy 60KW-240KW Double Charging Guns DC EV Charger Station

1. Product name: DC EV Charging Station
2. Application:Electric Car Charging
3. Output Current:160A(230A/320A/360A/480A optional)
4. Charging Mode:Dc Fast
5. Warranty:1 years
6. Lead time:10-30 days
7. Color:White, gray, Customized Color
We have our own production factory and a mature design and pre-sales and after-sales team. We can provide customization according to customer requirements, such as logo, color, size, etc.
  • Speedy

  • HMHIPECH

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Speedy 60KW-240KW Double Charging Guns DC EV Charger Station

Premium quality with sleek aesthetics: Incorporating the distinctive design features of the Zhenxuan series, the product boasts a minimalist, stylish look and exquisite craftsmanship, striking a perfect balance between quality and visual appeal.

Safety and reliability assured: It comes equipped with multiple protective functions like short-circuit prevention, overheating protection, and emergency shutdown, offering all-round safeguards. The dual-layer shell—made of high-grade galvanized steel with anti-rust coating—enhances durability. With an IP54 protection rating, it handles complex outdoor weather conditions effectively. Its well-thought-out structural layout and unique air duct design also contribute to a low failure rate.

Product Video
Fast Charger

Energy efficiency and cost-effectiveness: It features an extensive output voltage range, high operational efficiency, and minimal standby power usage, all of which help lower running costs.
Speedy 240kw DC EV Charger

Smart interaction features: A 7-inch color touchscreen ensures intuitive operation and smart human-machine engagement. It supports versatile communication via Ethernet and 4G, along with multiple activation ways like QR code scanning, card swiping, POS, and VIN. Moreover, it offers various charging modes, including automatic full charge and battery-level-based charging.
Pulg And Charger
This direct current electric vehicle charging station works with both CCS2 and GBT DC standards, presenting a broader selection of adaptable charging possibilities.
App Control
The system links up with the client's OCPP 1.6 application, letting mobile apps carry out tasks like initiating charging and handling settlements.
Ocpp System
Supporting OCPP 1.6, the system allows for human-computer interaction through two means: a 7-inch touch screen and the user's exclusive OCPP application.


Application Scenario



About Us



ModelHM60DCD1、HM80DCE1、HM120DCF1、HM160DCG1、HM180DCH1、HM240DCI1
Prower380Vac+10%(L1+L2+L3+N+PE)
Current60~240A
ColorWhite , gray
Temperature-20~50℃/5%~95%
Protection level≥IP54
ProtectionOvervoltage, undervoltage, overcurrent, adhesion detection, insulation , lightning , emergency stop
EnvironmentNo pollution, such as salt, acid, smoke, etc
Storage temperature-40~80℃
Altitude<2000m
Cable length5m(Optional)
Size768mm*665mm*1800mm
Weight325KG
AuthenticationThird party type testing
