Quality 7KW EV AC Charger Single-gun Charging Station EV AC Charger Electric

1、Product model:HA2-007A/007B
2、Design standard: GB/T 18487.1-2015、GB/T 20234-2015Input voltage: 220Vac+20%;
3、Input voltage: 220Vac±20%;
4、Gun: Single;
5、Rated charging current: 32A
6、Available colors: Star Grey;
7、Display interface: 4.3 inch LCD capacitive screen;
8、Operating temperature/Humidity: -20~55°C/5%~95%;
9、Level of protection: >lP54;
We own our production facility along with a well-established design team and pre-sales and after-sales teams. We are able to offer customization services based on customer needs, including logo, color, size, and more.
  • HA2-007A/007B

  • hmhipech

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

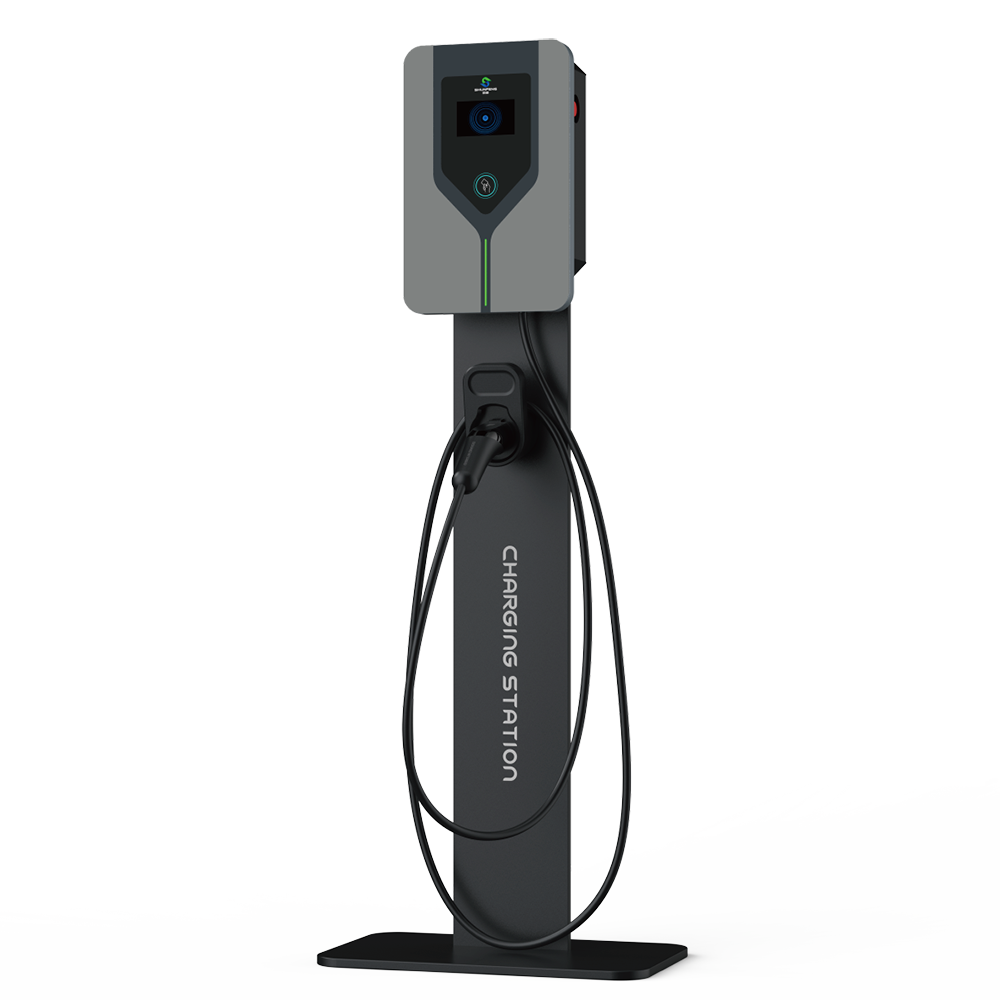

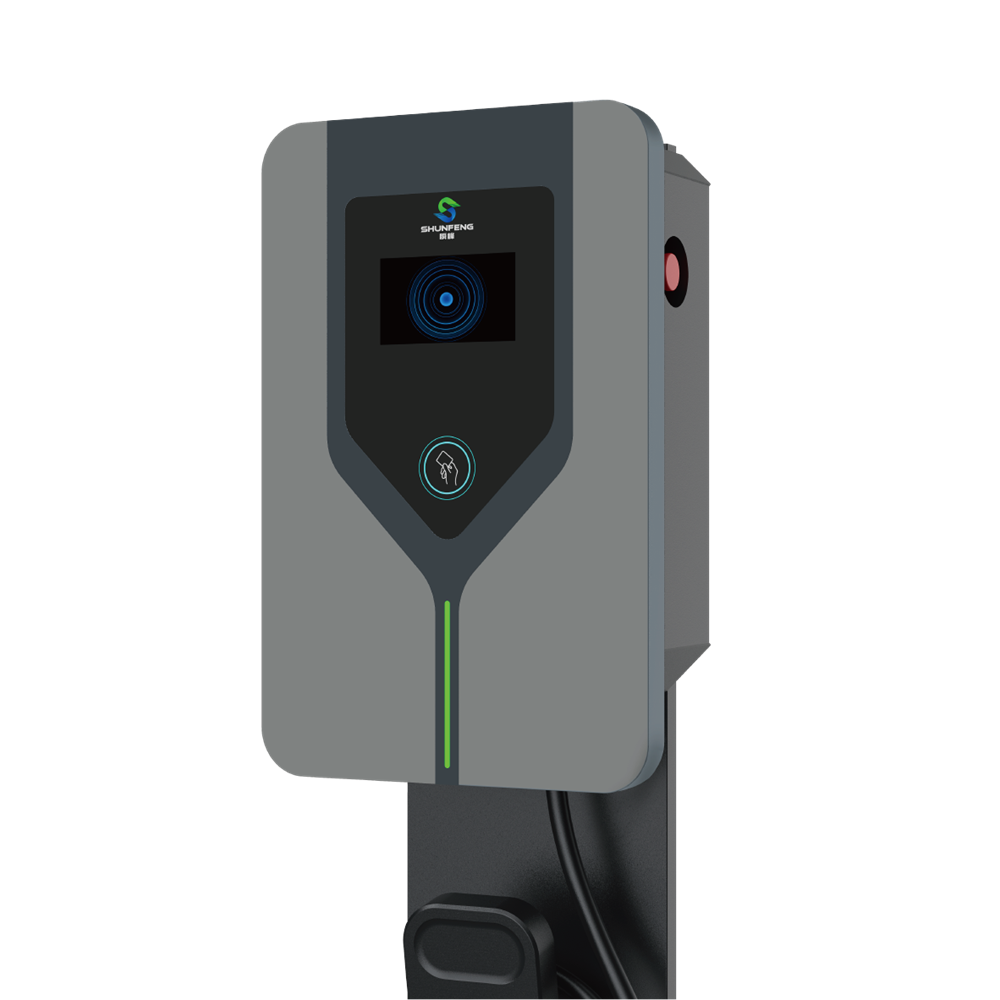

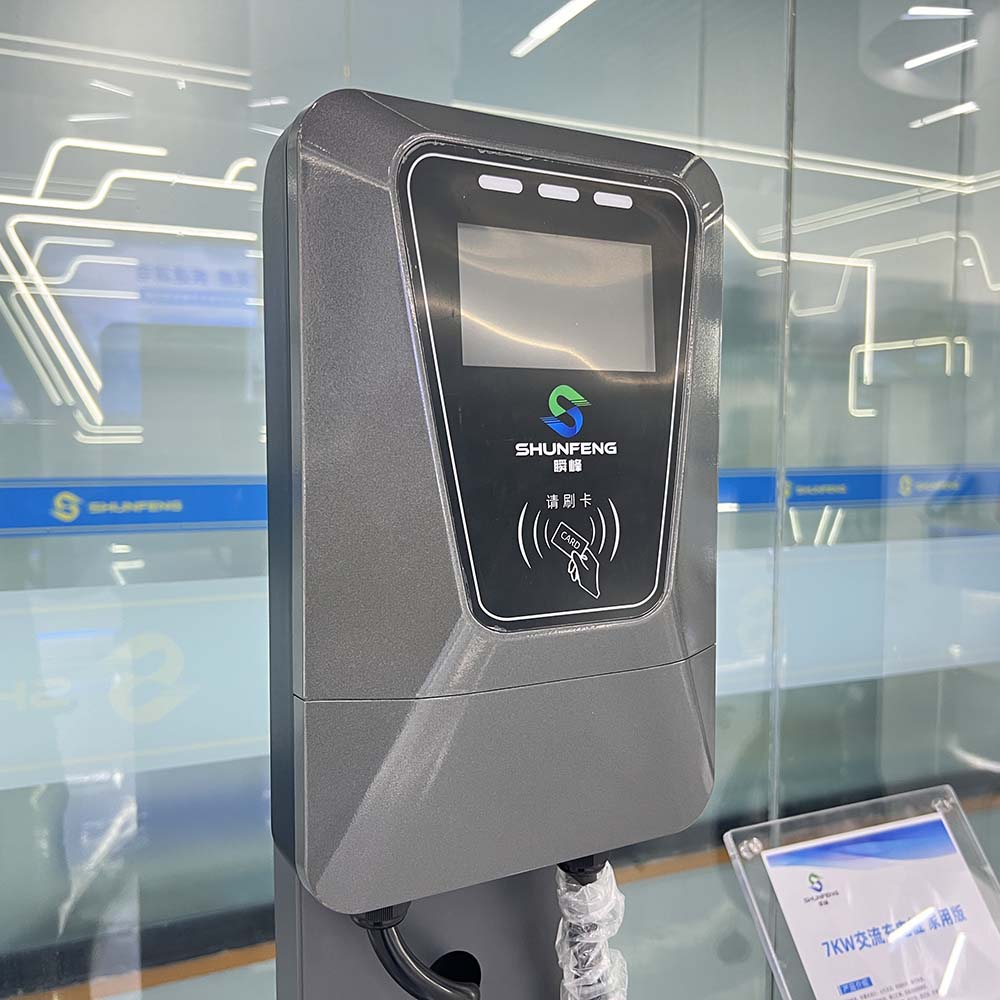

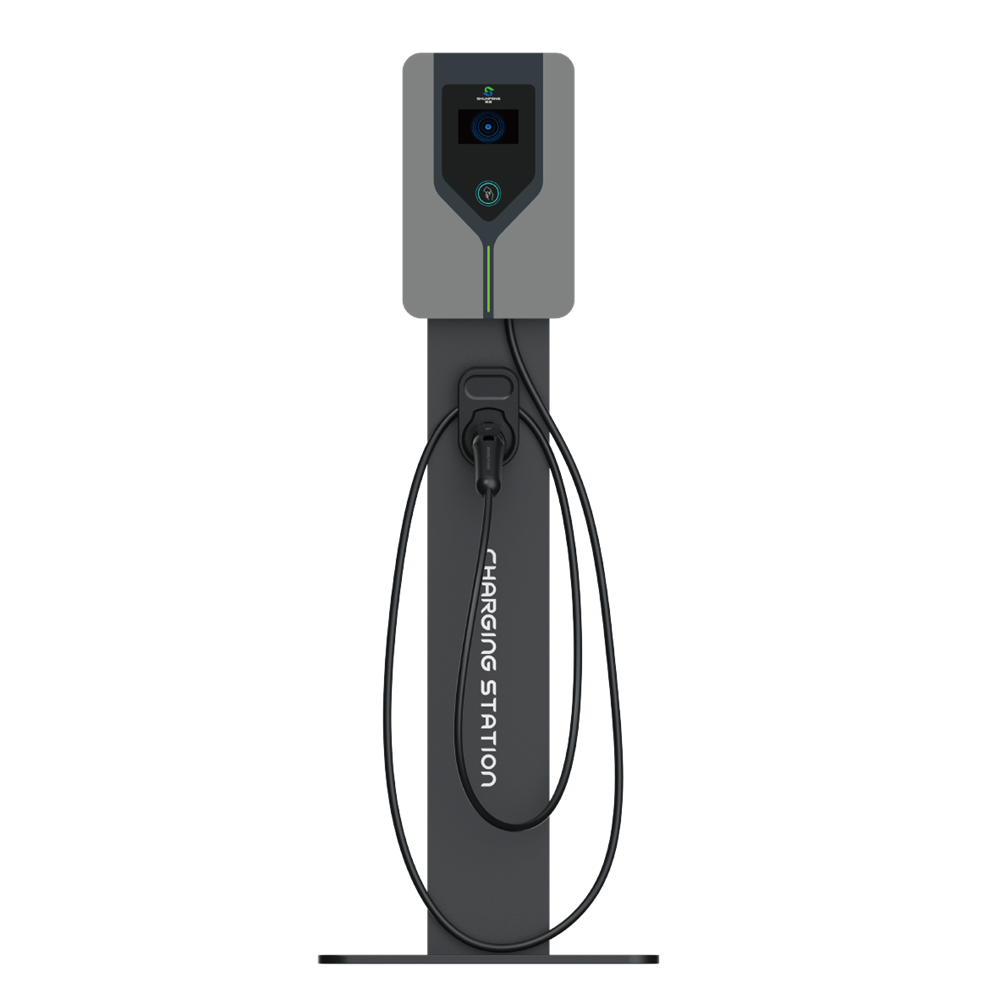

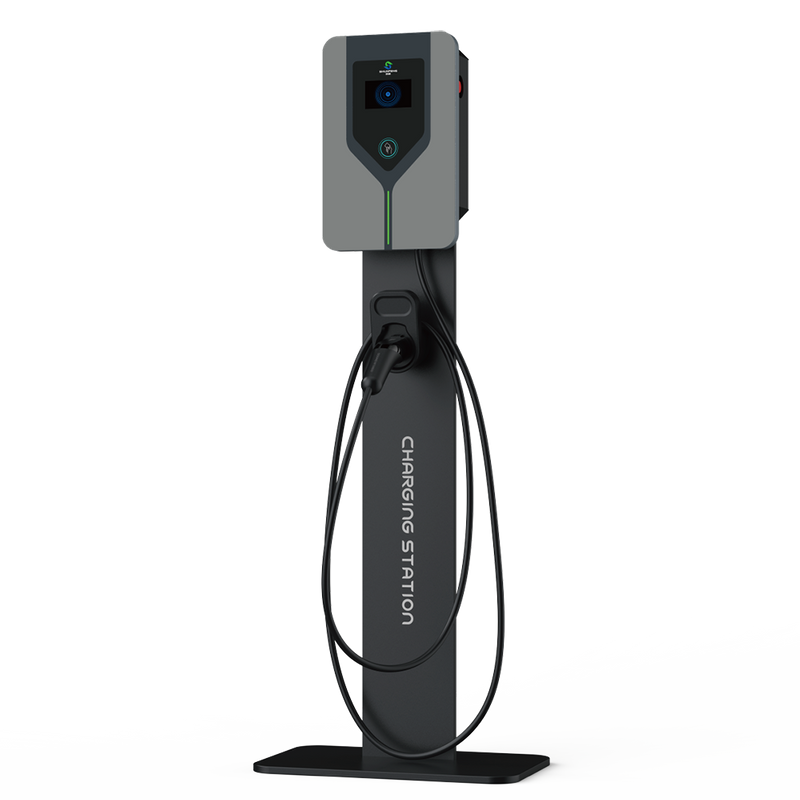

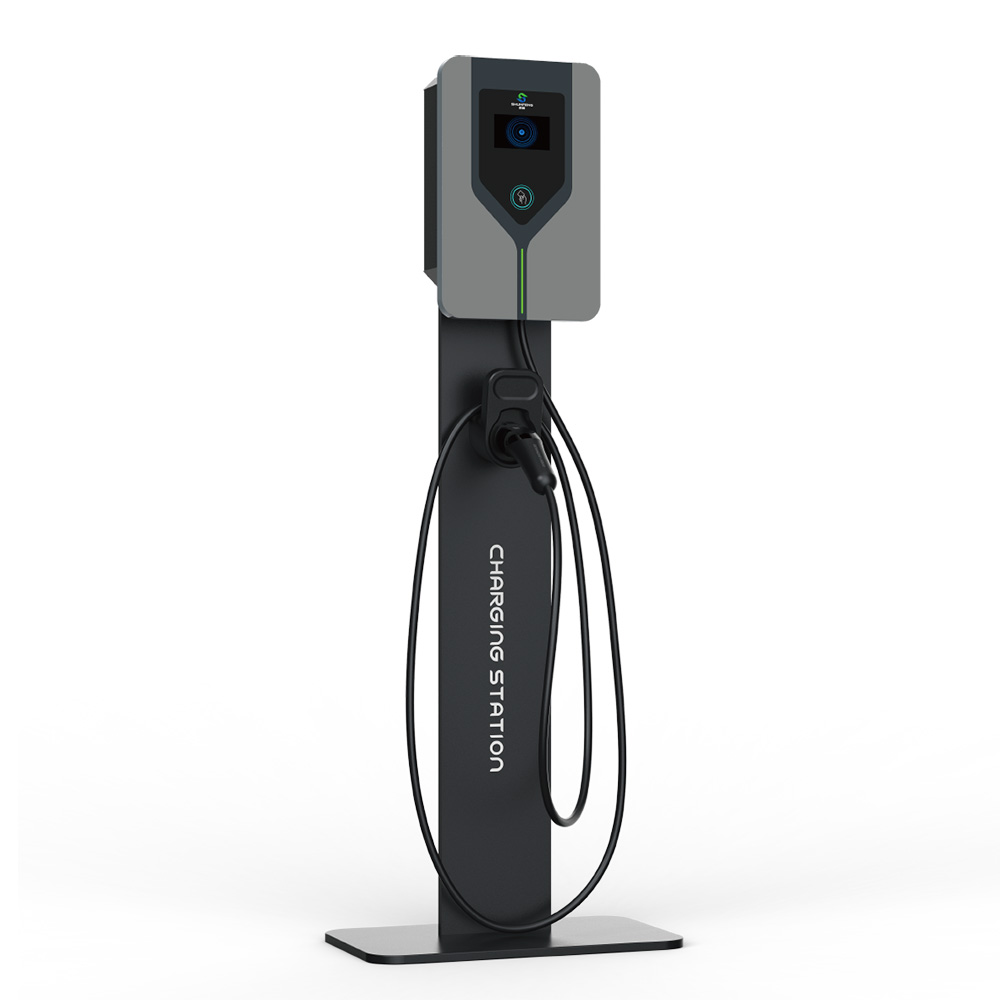

7KW EV AC Charger Single-gun Charging Station

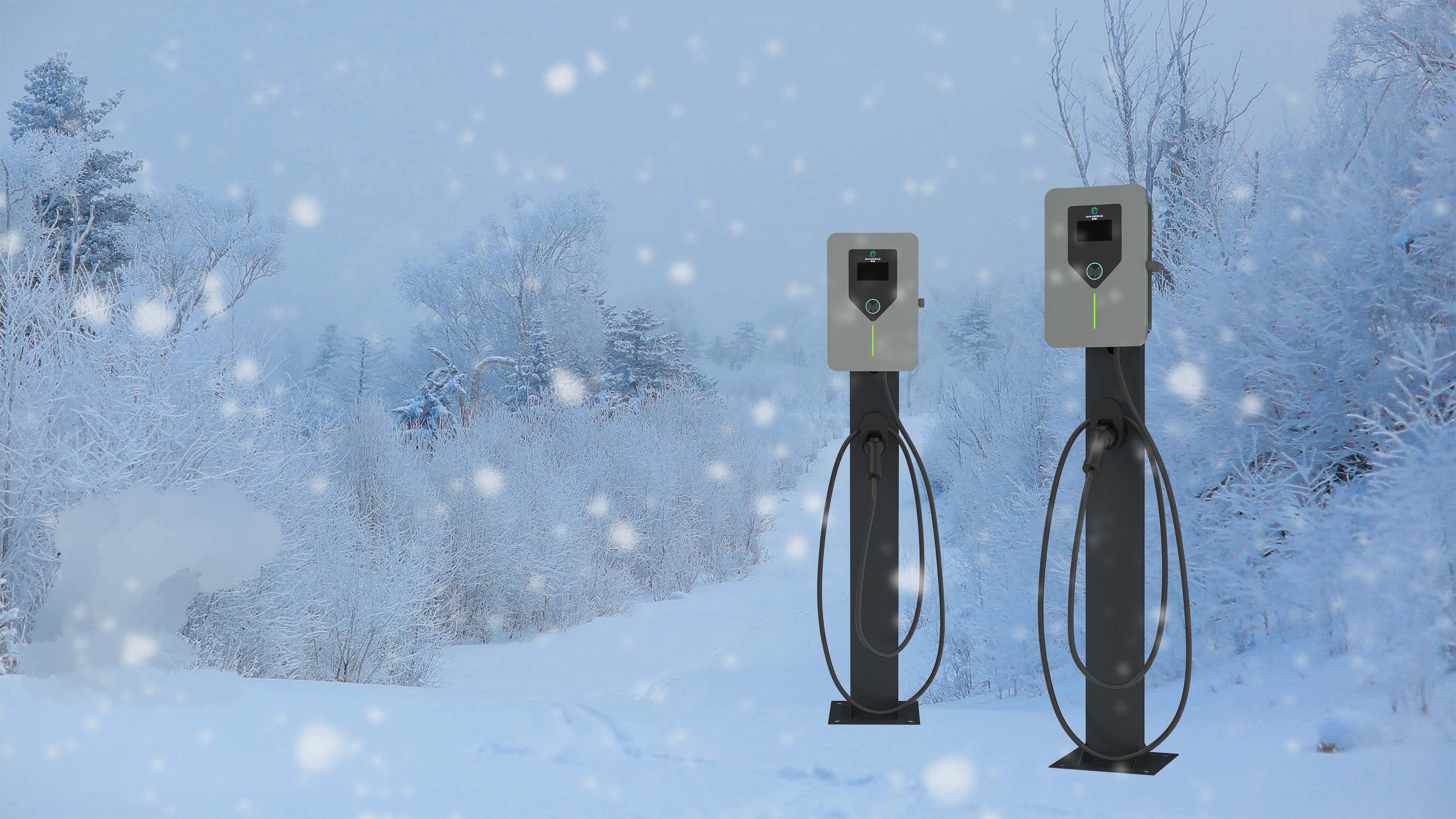

  Designed for durability and reliability, this AC EV charger enables electric vehicle charging stations to run efficiently in extreme conditions. Boasting an IP54 rating, it shields against dust and water splashes, ensuring outdoor durability. It maintains stable performance across a broad temperature span of -40°C to +80°C, offering a dependable charging solution for stations in diverse climates.

Product Video
Outstanding Basic Features​

The product has a simple design, combining texture and aesthetics. It occupies a small space, is convenient to install and easy to operate. The panel can be replaced as needed to achieve a variety of style matches.
Significant Functional Advantages​

It has multiple safety protection functions such as lightning protection, overload protection, short circuit protection, leakage protection, waterproof and dustproof. It supports charging, settlement and other operations through mobile APP, and is compatible with mobile payment methods such as WeChat Mini Program and Alipay. At the same time, it can realize diversified human-computer interaction through 4.3-inch touch screen and mobile APP, with user-friendly interaction design.​
Pulg And Charger
This DC EV charging station is compatible with both CCS2 and GBT DC standards, offering a broader array of flexible charging options.
App Control
The system links up with the customer's OCPP 1.6 application, enabling operations such as charging and settlement via mobile apps.
Ocpp System
With OCPP 1.6 compatibility, the system supports human-computer interaction, utilizing a 7-inch touch screen and the user’s exclusive OCPP application as interaction channels.

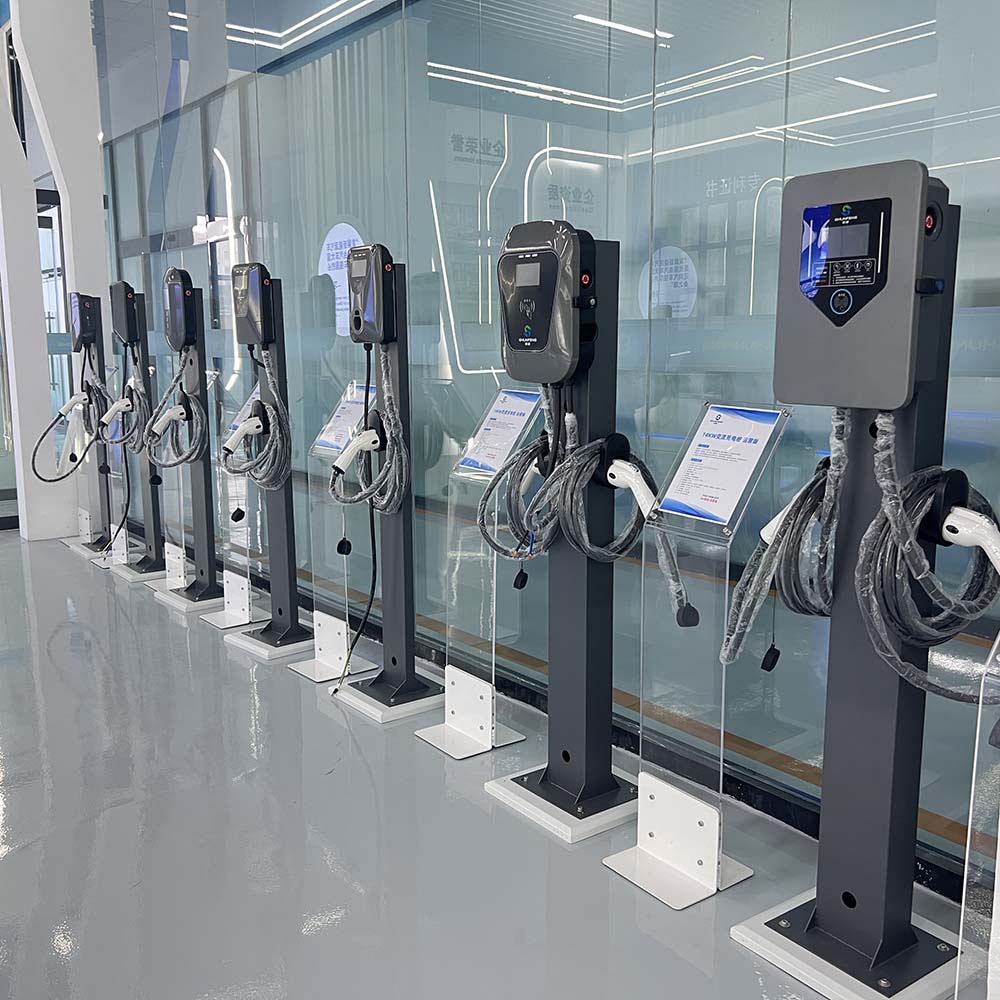

Application Scenario



About Us



Product Mod

HA2-007A/007B

Design standard

GB/T 18487.1-2015、GB/T 20234-2015

Input voltag

220Vac+20%

Charging gu

Single

Rated charging currentx

32A
Available colorsStar Grey

Display interface

4.3 inch LCD capacitive screen (optional)

Operating temperature / humidity

 -20~55°C/5%~95%

Protection grade

>lP54

Safety protection

over-voltage protection, under-voltage protection, over-current protection, adhesion protection, insulation protection, lightning protection, emergency stop protection;

Storage environment

no pollution, such as salt, acid, smoke and dust;

Storage temperatur

-40~80°C

Working altitude

 <2000m

Charging Cable Length

3.5 meters/5 meterss(optional)

Certification

Third party type test
