7kW Smart EV Charger with LCD Bluetooth for Home Fleet Charging

The Hipech Swift M1 7kW AC EV Charger delivers consistent single-phase charging output with integrated LCD display and Bluetooth connectivity, designed for deployment across residential, commercial, and fleet operations. Manufactured in an ISO 27001 certified facility with a dedicated EV R&D center, this charging station complies with OCPP 1.6 protocol and meets TÜV testing standards. The IP54-rated enclosure supports installation in indoor and outdoor locations, providing charging infrastructure solutions for property developers, retail operators, and transportation service providers.

Key Features of 7kW Smart EV Charger

LCD Display and Bluetooth Connectivity The charging station features an LCD interface that shows real-time charging status, voltage, current, and energy consumption data. Bluetooth connectivity enables direct pairing with mobile devices for local configuration and monitoring, eliminating the need for complex network setup during initial installation. Users can access charging history, adjust power output limits, and receive status notifications through the connected mobile application.

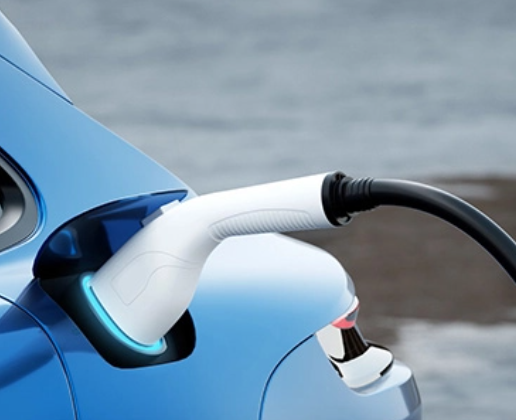

Comprehensive Electrical Protection Systems The charger incorporates multiple layers of protection: current leak protection, leakage ground monitoring, over current protection, over temperature protection, lightning protection, over voltage protection, short circuit protection, and voltage fluctuation protection. Each protection mechanism operates independently to ensure continuous safe operation during charging cycles. Plug and Charge Compatibility The charging connector supports standard EV charging interfaces, compatible with electric vehicles using CCS2 and GBT charging standards. The system automatically initiates charging upon connector insertion, requiring no additional user authentication for basic operation. Optional RFID authentication can be enabled for commercial access control requirements.

Technical Specifications for 7kW AC EV Charging Station

Plug and Charger	App Control	OCPP System

Commercial Applications for EV Charging Infrastructure

Residential and Property Installations

For residential buildings and property management companies, this charger provides EV charging capabilities for private parking spaces and visitor parking areas. Installation in garages and parking lots enhances property value while meeting the growing demand for electric vehicle infrastructure among residents and tenants.

Fleet and Logistics Operations

Transportation companies, delivery fleets, and corporate vehicle operators can deploy multiple units for centralized charging management. The charging stations support scheduled charging during off-peak electricity hours, reducing operational energy costs for commercial procurement departments. Remote monitoring capabilities enable fleet managers to track charging status across all vehicles in real time.

Commercial and Public Parking Facilities

Retail centers, office buildings, hotels, and public parking operators can install these chargers to offer EV charging as an amenity for customers and employees. The OCPP 1.6 compliance enables integration with existing payment systems and charging network platforms, supporting paid charging models for revenue generation.

Shared Mobility and Ride-Hailing Platforms

Ride-hailing services, car rental companies, and vehicle sharing platforms benefit from rapid deployment capabilities. The chargers support networked management for centralized billing, usage tracking, and maintenance scheduling, streamlining business operations for mobility service providers.

Smart Connectivity and OCPP 1.6 Integration

Mobile Application Control

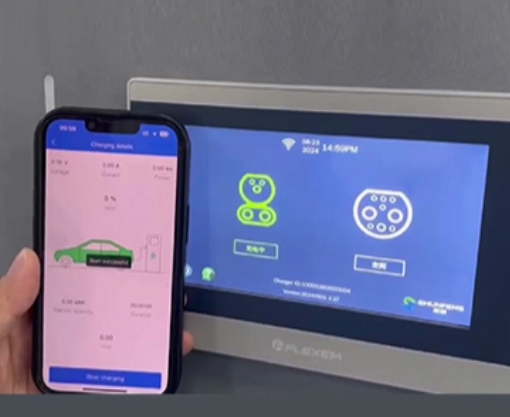

The charging system connects with customer OCPP 1.6 platforms and supports mobile application operations for charging initiation, payment processing, and session management. Users can remotely start or stop charging sessions, monitor energy consumption, and access historical charging data through the dedicated mobile interface.

Centralized Management System

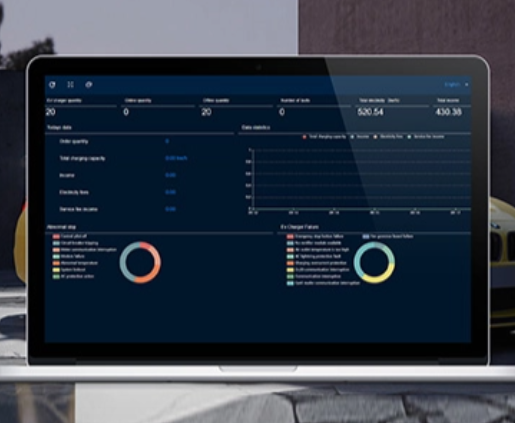

For multi-unit deployments, the OCPP 1.6 protocol enables integration with backend management platforms. Operators can monitor all charging stations through a web-based dashboard, displaying real-time status, energy usage statistics, revenue data, and fault alerts. The 7-inch touchscreen interface on each unit provides local control and configuration options.

Network Compatibility

The charging station supports multiple connectivity options for integration with different network environments. Bluetooth connectivity provides local access for on-site configuration, while network connectivity enables cloud-based management and remote monitoring capabilities required for large-scale commercial deployments.

FAQ about 7kW EV Chargers

What installation requirements apply to this charger?

The charger supports wall-mounted, ground-mounted, and pole-mounted installation options. Professional electrical installation is required according to local electrical codes. The unit operates on single-phase 220V power supply with a dedicated 32A circuit.

Which electric vehicles are compatible with this charger?

This AC charger works with all electric vehicles equipped with standard AC charging ports, supporting both CCS2 and GBT connector standards. The 7kW output matches the on-board charger capabilities of most passenger electric vehicles currently available on the market.

What warranty and certification does this product have?

The product has completed third-party type testing and meets GB/T 18487.1-2015 and GB/T 20234-2015 standards. Manufactured in an ISO 27001 certified facility, each unit undergoes full functional testing before shipment.

Can this charger integrate with existing charging management systems?

Yes, the charger fully complies with OCPP 1.6 protocol, enabling integration with most commercial charging network platforms and management systems. The open protocol supports custom integration for enterprise charging infrastructure deployments.
