How Do You Pump Out a Fuel Dispenser?

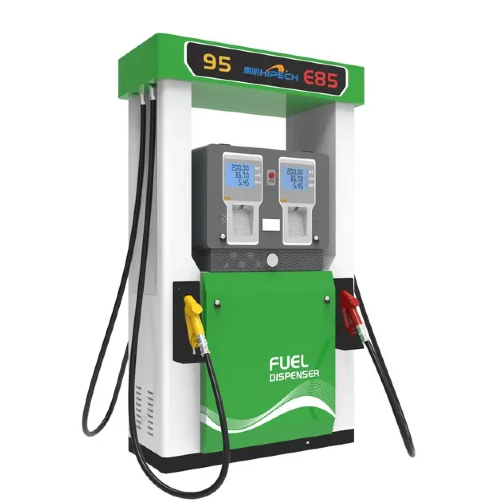

Is your fuel station equipment ready for its next inspection or a sudden emergency repair? Knowing how to safely evacuate a fuel dispenser is a critical skill for any site operator or technician. This technical guide explains the precise steps required to empty these complex systems without causing damage or safety hazards. You will learn about modern suction and submersible systems and the specialized tools needed for a clean extraction.

Key Takeaways

● Safety First: Always initiate emergency stops and isolate electrical power before beginning any extraction process to prevent sparks or accidental fuel flow.

● Method Matters: The technique for pumping out a fuel dispenser varies significantly between internal suction gear pumps and pressurized submersible turbine pump (STP) systems.

● Equipment Precision: Utilize specialized anti-static hoses and certified containers to manage residual fuel volume and comply with EPA and NFPA environmental standards.

● Smart Integration: Modern digital fuel dispenser technology allows for real-time flow monitoring and inventory reconciliation, ensuring every drop is accounted for during decommissioning.

● Maintenance Triggers: Regular system purges are essential for correcting meter drift, clearing water contamination, and addressing line restrictions that slow down service.

Comprehensive Step-by-Step Process for Pumping Out a Fuel Dispenser

Pre-Evacuation System Shutdown and Safety Locking

Before touching any mechanical components, safety must be the absolute priority. Technicians begin by activating the emergency stop (E-stop) to cut power to the entire forecourt. We isolate the digital fuel dispenser computer and relay boards to ensure no electronic signals accidentally trigger a valve during the process.

Once the power is off, you must locate and manually close the shear valves (impact valves) at the base of the unit. These valves act as a physical barrier. They prevent fuel from the underground storage tanks from backflowing into the dispenser cabinet while you work.

Note: Double-check that all lockout-tagout (LOTO) procedures are completed on the circuit breakers to prevent accidental re-energization by other staff members.

Connecting External Extraction Equipment to Check Valves

With the system isolated, the next step involves accessing the internal manifold. Technicians identify the primary connection points, usually found at the check valve or the filter manifold. This is where specialized fuel station equipment, such as a portable evacuation pump, is attached.

It is vital to use high-quality, anti-static hoses for this connection. High-volume fuel movement generates significant static electricity. Without proper bonding and anti-static materials, a single spark could lead to a catastrophic fire in the vapor-rich environment of the dispenser cabinet.

Managing the Internal Flow Meter and Residual Fuel Volume

Modern fuel dispenser units utilize high-precision four-piston positive-displacement meters. These components are sensitive to dry running. Technicians use specific gravity-drain or low-pressure suction techniques to clear these meters without spinning the internal gears at excessive speeds.

After the meter is clear, the solenoid valves must be addressed. These valves often trap a small but significant amount of fuel in the upper delivery lines. By manually overriding the solenoid or using a vacuum draw, we ensure that the "dead space" between the meter and the nozzle is completely empty.

Utilizing Suction Systems vs. Submersible Pump Extraction

The extraction strategy changes based on the dispenser type. In a suction-style fuel dispenser, the unit contains its own internal gear pump. Technicians can often leverage this pump to self-evacuate the lines into a testing prover or temporary tank.

In pressurized systems using a submersible turbine pump (STP), the process is different. Since the pump is located inside the underground tank, we must bypass the STP. We use an external suction device to pull fuel directly from the line, ensuring the manifold pressure is neutralized before the lines are disconnected.

Safe Disposal and Storage of Extracted Fuel Inventory

Extracted fuel is never just "waste." It must be transferred into certified containers that meet strict EPA and fire marshal standards. This is where smart fuel dispenser data becomes incredibly useful. Technicians compare the volume physically "pumped out" with the digital inventory logs. This reconciliation identifies hidden leaks or meter inaccuracies that may have gone unnoticed during normal operation.

Tip: Always label extraction containers with the specific fuel grade and date to prevent cross-contamination if the fuel is to be returned to the main tank later.

Final System Purge and Vapor Recovery Capture

The final step is the removal of hazardous vapors. As liquid fuel leaves the system, it is replaced by air and fumes. We activate the vapor recovery system—or use portable carbon scrubbers—to capture these VOCs (volatile organic compounds). Verifying a bone-dry system is essential if the equipment is being relocated or sent for off-site repair.

Essential Safety Protocols for Fuel Station Equipment Extraction

Static Electricity Mitigation and Grounding Practices

Static is the invisible enemy at the pump. We implement a rigorous bonding system where the extraction pump, the fuel dispenser chassis, and the receiving container are all linked to the same electrical potential. This "common ground" eliminates the risk of a static discharge jumping between components.

Environmental Containment and Spill Prevention

No matter how careful a technician is, small drips can occur. We set up secondary containment berms around the work area. If the extraction lines are moved suddenly, breakaway couplings on the service hoses prevent a major spill. We also take this time to inspect the double-walled piping for any signs of degradation.

Regulatory Compliance and NFPA Standards

Every pump-out must align with National Fire Protection Association (NFPA) guidelines. Documentation is not optional. We record the reasons for the evacuation and the final volume totals. These logs are often requested by state Weights and Measures agencies during routine audits or after a system recalibration.

Tip: Keep a digital copy of the extraction log synced with your station's management software for easy retrieval during insurance inspections.

Technical Differences: Pumping Out Suction vs. Submersible Systems

Internal Gear Pump Mechanics in Suction Dispensers

In older or smaller stations, the suction fuel dispenser creates its own vacuum to "lift" fuel from the tank. During a pump-out, this vacuum can be used to our advantage to pull residual fuel into a recovery tank. However, if the gear pump is worn, it may struggle to clear the final few liters of the delivery line.

Manifold Pressurization in Submersible Pump Configurations

Submersible systems are common in high-volume fuel station equipment setups. These systems share a pressurized manifold. If you are pumping out one dispenser while others are still operating, you must ensure the shared line is properly isolated. Failure to do so could result in the STP pumping fuel directly into your open work area.

Handling Solenoid and Check Valve Obstructions

Electronic valves are designed to stay closed when power is cut. This is great for safety but difficult for extraction. Technicians often use manual override tools—small magnets or mechanical levers—to keep these valves open during a non-powered pump-out. This ensures no fuel is "locked" inside a specific section of the pipework.

The Role of Smart Fuel Dispenser Technology in System Drainage

Remote Diagnostics and Real-Time Flow Monitoring

A smart fuel dispenser provides data that manual gauges simply cannot match. AI algorithms can detect "slow flow" patterns during the extraction process. If the flow rate fluctuates wildly, it usually indicates air pockets or a blockage in the vapor recovery line, allowing the technician to adjust their technique instantly.

Utilizing Digital Displays for Volume Verification

Precision is the hallmark of a high-quality digital fuel dispenser. By comparing the physical volume in the prover with the internal electronic totalizer, we can identify "meter creep." This ensures that when the system is put back into service, the customer and the station owner both get an honest measurement.

AI-Driven Leak Detection During Decommissioning

During a full system shutdown, AI-driven sensors monitor for pressure drops. If the pressure falls faster than expected while the lines are being emptied, it may indicate a breach in the primary or secondary piping. Catching these issues during a maintenance pump-out prevents future environmental fines.

Maintenance Indicators: When is a Pump-Out Necessary?

Identifying Clogged Filters and Line Restrictions

If you notice a 15–20% drop in flow rate across your fuel station equipment, a partial pump-out is likely needed. This allows technicians to clear the filter housings and check for debris or "tank sludge" that has migrated into the dispenser’s internal plumbing.

Correcting Meter Drift and Calibration Errors

Over time, even the best positive-displacement meters drift. To meet NIST Handbook 44 standards, the system must be drained and recalibrated. This process ensures the fuel dispenser remains accurate to within a fraction of a cubic inch, protecting your profit margins.

Addressing Water Contamination in Underground Tanks

Water is heavier than fuel and settles at the bottom of tanks. If water enters the delivery lines, it causes "phase separation" in ethanol blends. Pumping out the dispenser is the only way to clear this contaminated product from the lines and ensure the nozzles are delivering clean, high-quality fuel to vehicles.

Note: If you detect more than one inch of water in your tank via the ATG (Automatic Tank Gauge), a full system purge is usually mandatory to protect customer engines.

Selecting Specialized Service Providers for Professional Extraction

24/7 Field Support and Technician Networks

Fueling issues don't happen on a schedule. Choosing a provider with 24/7 support ensures that an emergency pump-out can be handled before a small leak becomes a massive environmental liability. Local technician networks minimize downtime and get your digital fuel dispenser back online faster.

Ensuring Compatibility Across Major Dispenser Brands

Not all fuel station equipment is built the same. A technician must understand the specific microprocessor layouts and relay board configurations of different brands. Misidentifying a wire or a valve override point can lead to expensive electronic damage.

Documentation for Regulatory and Insurance Compliance

After the extraction is complete and the system is refilled, you need a paper trail. Professional providers supply detailed logs of calibration seals and technician visits. This documentation is your best defense during an insurance claim or a regulatory inspection.

Conclusion

Safely pumping out a fuel dispenser requires a perfect blend of mechanical knowledge and digital precision. Operators must prioritize grounding and vapor recovery to maintain a secure environment. Modern hmhipech solutions simplify this process by integrating advanced flow monitoring and durable internal components. By following strict NFPA standards and using smart diagnostics, you ensure your fuel station equipment remains efficient. Trusting high-quality technology from hmhipech protects your inventory and ensures long-term operational success for every station.

FAQS

Q: What is the main reason to pump out a fuel dispenser?

A: Operators evacuate a fuel dispenser primarily for maintenance, meter recalibration, or to clear water contamination from the lines.

Q: How do you handle a digital fuel dispenser during extraction?

A: You must isolate the electronic relay boards and use the digital fuel dispenser data to reconcile the extracted volume.

Q: Is specialized fuel station equipment needed for this task?

A: Yes, you need anti-static hoses, portable suction pumps, and certified containers to safely empty a fuel dispenser.

Q: Can a smart fuel dispenser help detect leaks during a pump-out?

A: A smart fuel dispenser uses AI sensors to monitor pressure drops and flow inconsistencies, identifying potential breaches in the piping.
