Deploying a public EV charging station requires heavy capital expenditure and carries distinct operational risks. Without a rigorous, data-backed feasibility assessment, developers often build stranded assets. These are sites suffering from low utilization rates caused by poor location selection, mismatched hardware, or inadequate grid capacity. We must address these deployment challenges directly. This structured evaluation framework helps commercial real estate developers, municipal planners, and fleet operators systematically assess sites. You will learn how to select appropriate hardware and vet vendors for long-term viability. By following these evidence-based steps, you can ensure your infrastructure investments remain profitable and scalable.
Establishing clear performance metrics is the first step in deploying public EV charging infrastructure. You must define what constitutes a successful installation before breaking ground. Utilization rates serve as the primary indicator of site health. You need to calculate the required daily charging sessions to offset operational expenditures. Track the number of unique users visiting the site weekly. High session counts with low unique users indicate a localized, dependent customer base. High unique user counts suggest strong transient traffic. Both metrics help determine your operational break-even point without relying on guesswork.
Hardware selection relies entirely on user dwell time. You must match the power output of the equipment to how long visitors naturally stay at your facility. Installing fast chargers at a long-term parking garage wastes capital. Installing slow chargers at a highway rest stop frustrates drivers. We use a standardized matrix to align facility types with appropriate technology to maximize asset turnover.
| Facility Type | Average Dwell Time | Recommended Hardware | Primary Use Case |
|---|---|---|---|
| Highway Corridors | 15 - 45 Minutes | High-Power DCFC (150kW+) | Quick top-ups for long-distance travel. |
| Retail & Grocery | 45 - 90 Minutes | Medium-Power DCFC (50kW - 100kW) | Convenience charging during shopping trips. |
| Workplaces & Hotels | 4 - 8 Hours | Level 2 AC (7kW - 19kW) | Full battery replenishment over long durations. |
| Municipal Lots | 2 - 6 Hours | Level 2 AC / Low-Power DCFC | Support for local residents lacking home charging. |
Return on investment takes two distinct forms in this industry. Direct revenue generation comes from driver session fees. You charge users per kilowatt-hour or per minute of connection. Indirect value often outweighs direct revenue for retail operators. A well-placed installation increases retail foot traffic. EV drivers possess higher-than-average disposable income. They spend money inside your store while waiting for their vehicles to charge. Property managers use charging access as a tool for tenant retention. Municipalities leverage these installations to meet regional sustainability goals.
Site success requires alignment with community transportation strategies. You cannot operate in a vacuum. Integrating your station goals with municipal energy plans ensures long-term relevance. Cities actively publish EV uptake strategies. Review these documents to identify priority zones for infrastructure development. Aligning your site selection with city goals unlocks faster permitting approvals. It also generates stronger community support and drives higher baseline utilization from day one.
Basic traffic counts no longer guarantee site viability. You must move beyond simple vehicle-per-day metrics. Analyze local EV adoption rates within a five-mile radius. Examine specific vehicle ownership patterns. High rideshare density indicates a strong need for fast, accessible power. Evaluate existing competitor proximity. Placing a new station directly across the street from an established, highly-rated site dilutes your potential user base. Use demographic mapping tools to identify underserved corridors where demand outpaces current supply.
Home charging access dictates public infrastructure demand. Many drivers rely entirely on public networks. This is especially true in areas with high multi-unit dwelling (MUD) density. Apartment residents rarely have dedicated garage outlets. A community's lack of home access directly influences your site's viability. Calculate the local EV-to-charger ratio. A high ratio in a dense urban environment signals a lucrative opportunity for deployment. Target these charging deserts to capture a captive audience.
Grid capacity represents the hardest physical constraint in site selection. Power availability dictates your deployment timeline. You must engage local utility providers immediately. Request a site load analysis before signing lease agreements. The utility will determine if the existing transformer can handle the additional electrical load. Upgrading utility transformers introduces severe timeline risks. Equipment lead times can exceed a full calendar year. Early utility engagement prevents catastrophic project delays and unexpected infrastructure upgrade bills.
Physical footprint requirements extend beyond the parking stall lines. You must account for spatial accessibility. ADA compliance is a strict legal requirement. You need wider spaces for wheelchair access, typically requiring a minimum 9-foot parking stall with an adjacent 5-foot access aisle. Equipment screens must sit at accessible heights. Heavy liquid-cooled cables require management systems to prevent tripping hazards. Factor in vehicle turning radiuses. Large electric trucks towing trailers need pull-through charging lanes. Designing cramped sites leads to property damage and poor user experiences.
Choosing between alternating current (AC) and direct current (DC) equipment defines your operational model. Level 2 hardware utilizes AC power. It requires lower capital expenditure upfront. Installation is generally straightforward, often utilizing existing 208V or 240V electrical panels. Level 2 is ideal for locations where drivers park for two to eight hours. Workplaces, hotels, and commuter rail stations benefit most from this technology. It provides a slow, steady charge that matches the natural behavior of the visitors.

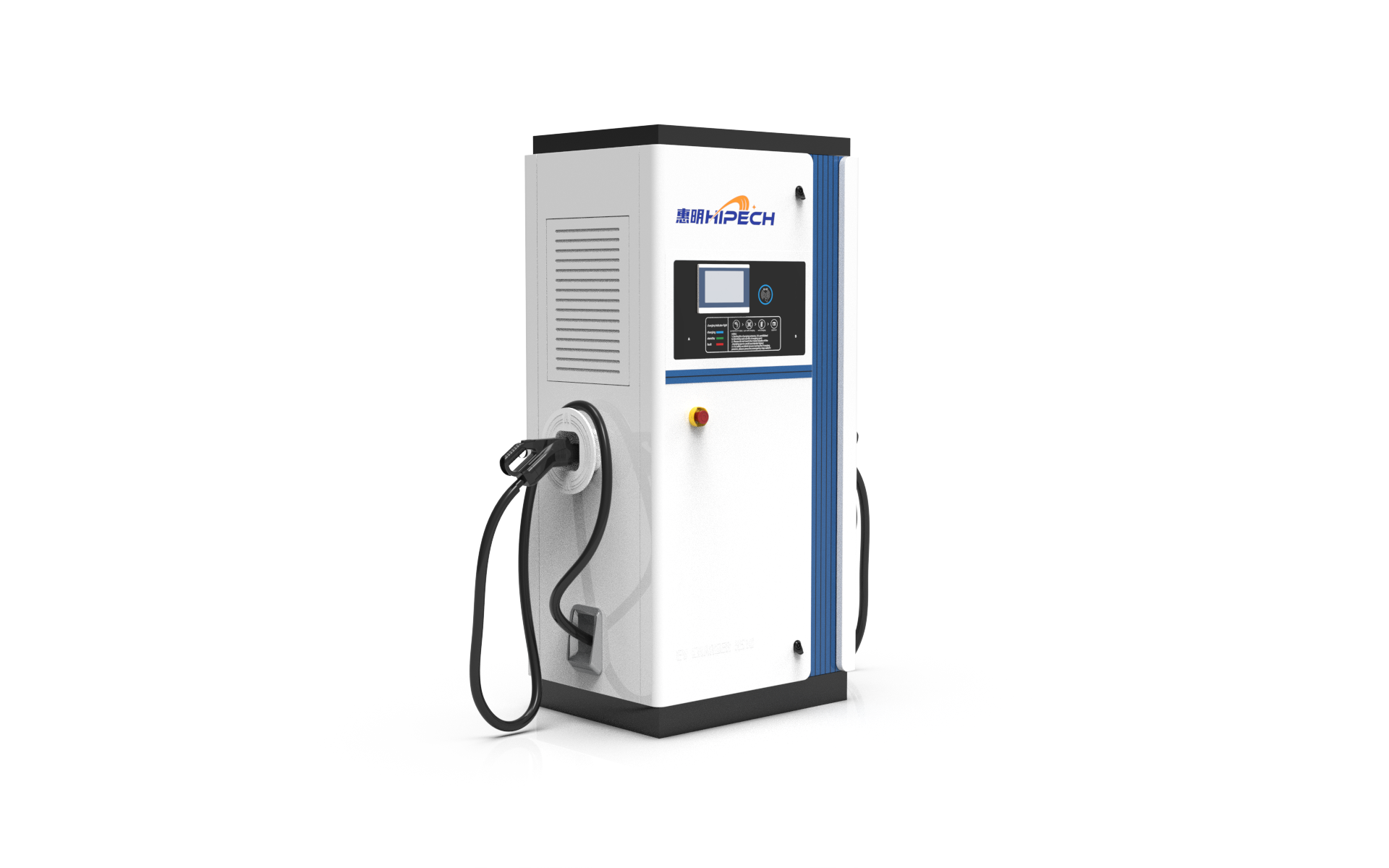

Conversely, a DC EV charger bypasses the vehicle's onboard converter. It delivers power directly to the battery. This requires high capital expenditure and massive electrical upgrades, often necessitating 480V three-phase power. However, it is essential for locations with 15 to 45-minute dwell times. Highway corridors and quick-service restaurants depend on this speed. Drivers expect rapid replenishment to continue their journeys. You must balance the high upfront costs against the premium session fees you can command.
| Specification | Level 2 AC Charger | DC Fast Charger (DCFC) |
|---|---|---|
| Power Output | 7kW - 19kW | 50kW - 350kW+ |
| Electrical Requirement | 208V / 240V Single Phase | 480V Three Phase |
| Installation Complexity | Low to Moderate | High (Requires heavy trenching and switchgear) |
| Target Dwell Time | 2 - 8 Hours | 15 - 45 Minutes |
Scalability protects your initial investment. Treat your site as an evolving ecosystem. Implement make-ready infrastructure during the first phase of construction. Lay oversized conduit and pour extra concrete pads now. Pulling wire for future expansion costs significantly less when the trenches are already open. Look for modular hardware designs. Modular units allow you to add power modules later. You can upgrade a 50kW unit to 150kW without replacing the entire outer casing.
Dynamic Load Management (DLM) software maximizes your existing electrical capacity. Smart hardware communicates with the local grid. DLM algorithms distribute available power across multiple active dispensers. If the site has 100kW of total capacity, DLM can give 50kW to two vehicles simultaneously. If a third vehicle plugs in, it adjusts the output dynamically. This prevents peak demand charges from the utility. It also allows you to install more plugs without triggering expensive transformer upgrades.
Hardware is useless without reliable software. The EV charging network you select controls the entire customer experience. Open Charge Point Protocol (OCPP) compliance is your strongest risk mitigation tool. OCPP is an open-source communication standard. It allows hardware from Manufacturer A to speak with software from Network B. Hardware-agnostic software prevents vendor lock-in. If your current network provider raises fees or suffers outages, OCPP allows you to migrate your hardware to a competing platform seamlessly.
User experience hinges on frictionless payment gateways. Drivers despise downloading a new mobile application for every station they visit. You must evaluate payment accessibility. Ensure the hardware includes standard credit card readers. Support RFID tap-to-pay functionality. App-based payments should remain an option, not a strict requirement. Investigate roaming agreements between networks. Roaming allows drivers using one network's app to activate stations on a different network, drastically increasing your site's accessibility.
Backend management tools give you operational control. You need robust telematics to monitor site health. The software dashboard must provide real-time uptime monitoring. If a unit goes offline, you need an instant alert. Dynamic pricing controls are also necessary. You should be able to adjust per-kWh rates based on time-of-day utility costs. Automated reporting features streamline your administrative burden. These reports are often required to claim carbon credits or maintain compliance with government grant programs.
Hardware reliability dictates your long-term profitability. You must rigorously assess your EV charger supplier before procurement. Demand proof of climate resilience testing. Review the IK ratings, which measure resistance to physical impacts and vandalism. A high IK rating ensures the screen survives deliberate strikes. Check the IP ratings for water and dust ingress. Equipment deployed in coastal areas requires different protective coatings than units installed in arid deserts. Extreme weather testing separates commercial-grade hardware from residential-grade plastic.
Procurement strategies vary based on internal resources. Turnkey providers handle the entire project lifecycle. They manage site design, hardware procurement, software integration, and physical installation. This single-point-of-contact approach reduces administrative friction. Fragmented procurement involves hiring specialized vendors for each phase. You buy hardware from a manufacturer, hire a local electrician for installation, and license software separately. This approach often reduces upfront costs but requires intensive project management on your end.
Operations and Maintenance (O&M) realities dictate site uptime. Define what constitutes an acceptable Service Level Agreement (SLA) during contract negotiations. Do not accept vague promises of support. Discuss physical parts availability. Ask where the supplier warehouses replacement cables and cooling fans. Guarantee technician response times in writing. Establish financial penalties for the supplier if they fail to meet the industry-standard 97% uptime guarantee. A broken charger generates zero revenue and actively damages your brand reputation.
Offsetting initial capital expenditure requires aggressive pursuit of external funding. Federal programs provide massive financial leverage. In the United States, NEVI funding targets highway corridor deployments. State-level environmental agencies offer substantial hardware rebates. Utility companies frequently run make-ready incentive programs. These programs cover the cost of bringing electrical infrastructure from the street to the parking pad. Leverage community infrastructure playbooks to identify local grant opportunities. Combining multiple funding streams drastically reduces your out-of-pocket expenses when building a commercial charging station.
Regulatory compliance introduces significant project risks. Permitting delays routinely derail deployment schedules. Local zoning boards often lack experience with high-power electrical infrastructure. They may raise concerns about noise from cooling fans or light pollution from digital screens. You must prepare mitigation strategies early. Submit comprehensive environmental reviews. Provide acoustic data from the hardware manufacturer. Proactively address traffic flow concerns in your site plan. Educating local officials speeds up the approval process.
Grant compliance requires strict operational adherence. Accepting public funds comes with strings attached. Programs often mandate specific payment methods, such as requiring physical credit card readers. They enforce strict uptime requirements. Failing to maintain a 97% operational rate can trigger clawback provisions, forcing you to return grant money. You must build these compliance costs into your operational budget. Ensure your software platform can automatically generate the specific reports required by your funding agencies.
Successful deployment requires treating the site as an integrated ecosystem. Power availability, hardware capabilities, and software management must work in unison. A simple hardware purchase will not yield commercial success. You must align your technology choices with user behavior and grid realities.
Take the following actionable steps to advance your deployment:
A: Costs vary based on technology and site conditions. Level 2 installations require lower capital expenditure and minimal electrical upgrades. Fast chargers demand significantly higher investment due to heavy-duty hardware, liquid-cooled cables, and extensive utility transformer upgrades. Trenching through concrete, laying heavy-gauge conduit, and upgrading electrical panels represent the largest variable expenses in any deployment. Site operators must also factor in permitting fees, ADA compliance upgrades, and potential utility interconnection charges.
A: Level 2 units deliver alternating current (AC) to the vehicle, relying on the car's onboard converter. This provides a slower charge ideal for long dwell times. DC fast chargers convert power internally, delivering direct current (DC) straight to the battery. This enables rapid replenishment, making it essential for highway corridors and quick-turnaround locations.
A: Operators utilize multiple pricing models. Direct revenue comes from per-kWh energy fees, per-minute connection rates, or flat session initiation fees. Indirect revenue is generated through increased foot traffic. Drivers waiting for their vehicles frequently spend money at adjacent retail stores, restaurants, or amenities, boosting overall property profitability.
A: Open Charge Point Protocol (OCPP) is an open-source communication standard. It allows hardware from one manufacturer to communicate seamlessly with software from a different provider. This interoperability prevents vendor lock-in, allowing operators to switch network management platforms without having to rip and replace their physical hardware.
A: Deployment timelines range from a few months to over a year. While physical installation takes only weeks, external factors dictate the schedule. Permitting approvals, zoning reviews, and environmental studies cause initial delays. The most significant bottleneck is typically utility engagement, as upgrading grid transformers often involves extensive equipment lead times.
A: Routine maintenance ensures high uptime. Tasks include inspecting cables for physical wear, testing connector latches, and cleaning digital screens. High-power DC units require filter replacements and fluid checks for liquid-cooled cable systems. Software maintenance involves pushing over-the-air (OTA) firmware updates to ensure compatibility with new vehicle models.
A: Yes. Network management software allows operators to control site accessibility. You can toggle the station to be fully open to the public. Alternatively, you can restrict access to private fleets, specific employees, or paying tenants. Access is typically gated using RFID cards, specific mobile apps, or authorized vehicle MAC addresses.
