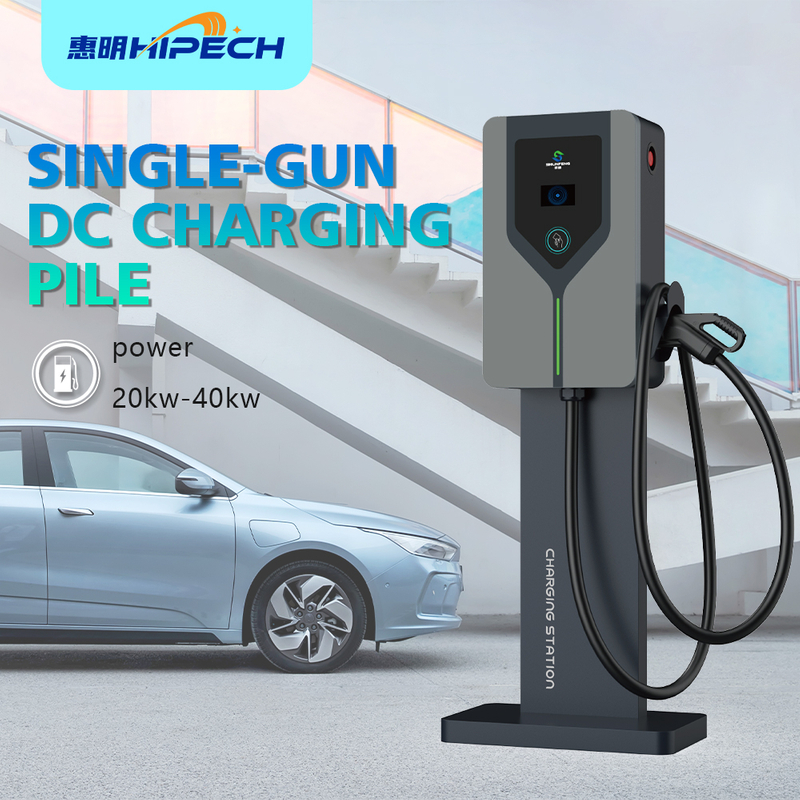

SWIFT EV DC Charger Electric Car Charging Station Fast 40kW Ev Charge Pile

Product Overview​
The YHDC40KW is manufactured to national standards like GB/T 18487, GB/T20234, etc. It’s a single - gun charger with a 40A rated charging current, running on an input voltage of 400Vac+10%.​
Key Features​

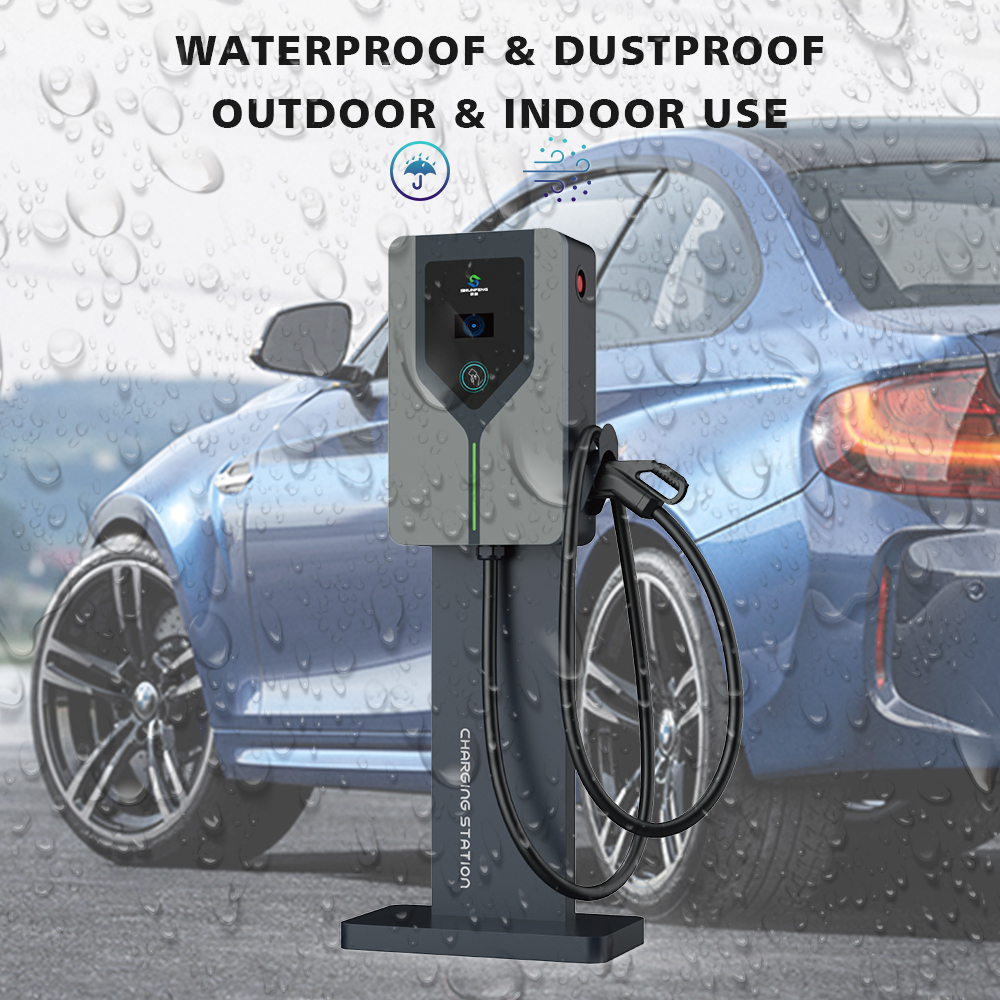

Colored in Star Grey, it has a 4.3 - inch LCD capacitive screen for easy operation. The product performs stably in - 20~55°C temperature and 5%~95% humidity, with a protection level over lP54.​
Customization Service​
With our own factory and professional design, pre - sales, and after - sales teams, we provide customization for logo, color, size, etc., catering to various customer requirements.
  • SWIFT

  • hmhipech

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

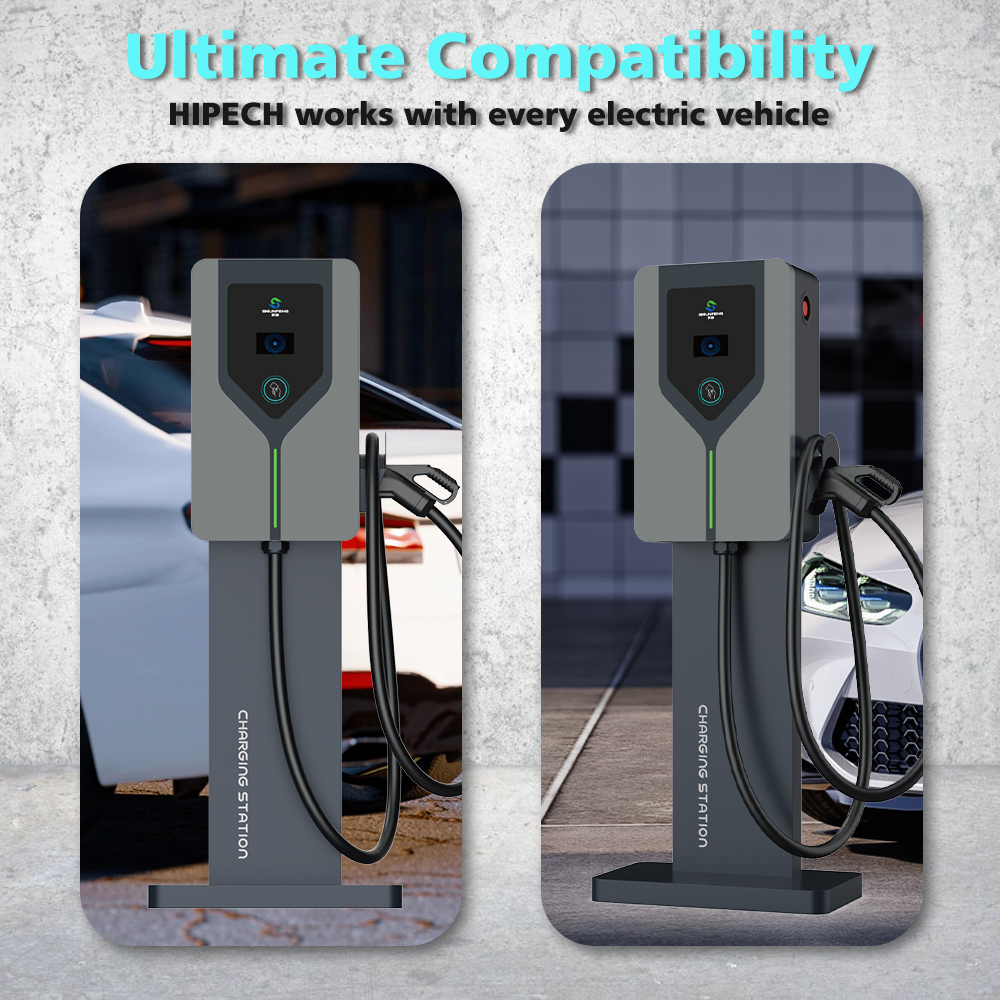

SWIFT Column Type with Single Gun 40KW Small DC EV Charger

It is simple and featured with smallfootprint, convenient installation and easy operation.
The charging stations are equipped with big charger base,logistics,intelligent controls,back-end support and operations management,surveillance systems to cater a most efficient and safe one stop charging solution for growing public transport system and fleet support.

Product Video
How to use EV Charger?

Step1:Insert the gun to the car
Step2:Swipe the RFID card to start
Step3:Swipe RFID card to stop
Step4:pull out the gun to the hplster
Notice

1. During the charging process, it is forbidden to forcibly pull out the charging nozzle!
2. Please do not touch the metal pin of the charging nozzle to avoid accidental injury!
3. If a safety accident occurs during charging, please press the emergency stop switch!
Pulg And Charger
CCS2/GBT DC standard, offering more flexible charging options
App Control
OCPP 1.6 app and also supports cell phone apps for charging, settlement, and other operations.
Ocpp System
via a 7-inch touch screen and their own OCPP app, enabling human-computer interaction

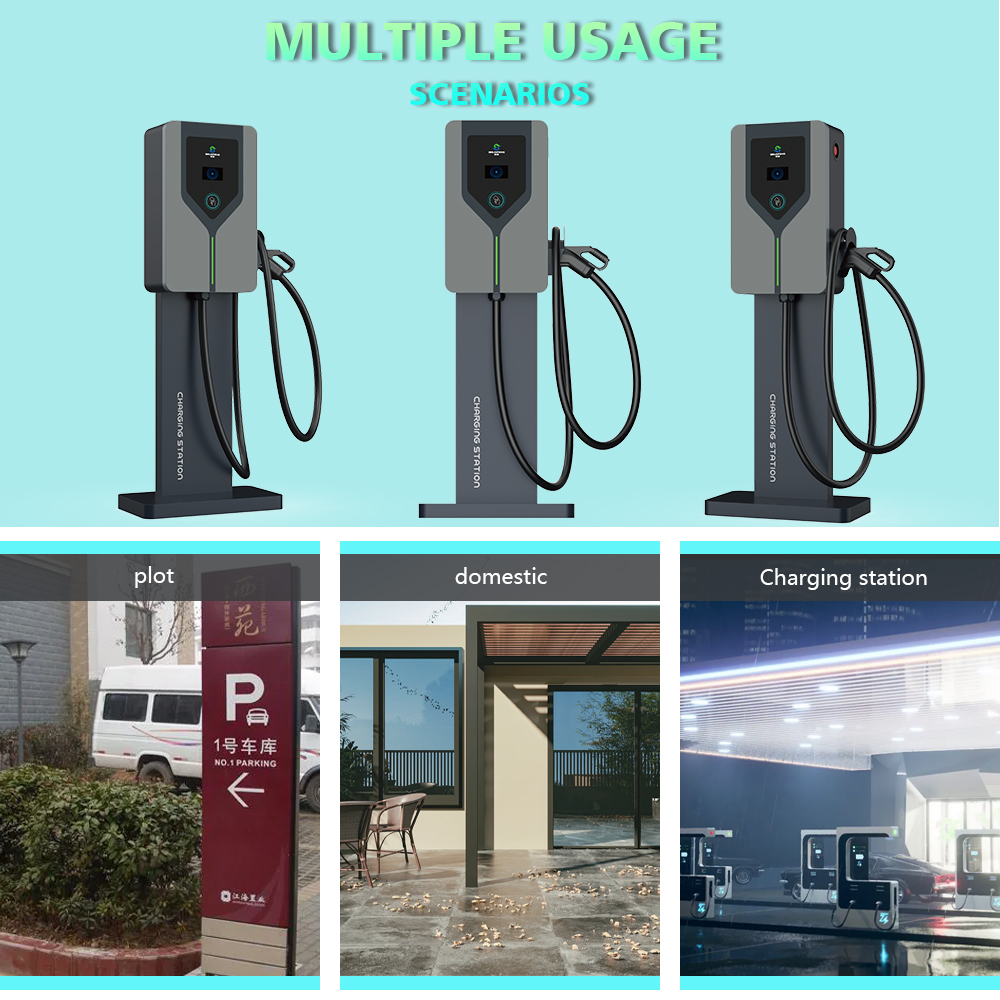

Application Scenario



About Us

Product model
SF4-080-2
SF4-120-2
SF4-160-2
SF4-180-2
SF4-240-2
Rated power
80kw
120kw
160kw
180kw
240kw
output current range
0-160A
0-230A
0-320A
0-360A
0-480A
Input voltage
380Vac±15%
380Vac±15%
380Vac±15%
380Vac±15%
380Vac±15%
Storage environment
pollution-free
pollution-free
pollution-free
pollution-free
pollution-free
Product size
650*530*1600
768*665*1800
768*665*1800
768*665*1800
1900*1420*945
Protection level
≥IP54
≥IP54
≥IP54
≥IP54
≥IP54

Product Mod

YHDC40KW

Design standard

GB/T 18487 GB/T20234 GB/T34657 NB/T33008

Input voltag

400Vac+10%

Charging gu

single

Rated charging currentx

40A
Available colorsStar Grey

Operating temperature / humidity

 -20~55°C/5%~95%

Protection grade

>lP54

Safety protection

over-voltage protection, under-voltage protection, over-current protection,adhesion protection, insulation protection, lightning protection, emergency stop protection

Storage environment

no pollution, such as salt, acid, soot, etc

Storage temperatur

-40~80°C

Working altitude

 <2000m

Charging Cable Length

5m(Customizable)
Product size1650*586*420mm
Product weight125KG (including column)

Certification

Third party type test
