Waterproof 60KW to 240KW Portable EV Charging Emergency Solution

SMART DC Electric Vehicle Charging Station Product Details
Core Parameters and Performance
Product Name: SMART DC Electric Vehicle Charging Station
Application Scenario: Fast charging facility specially designed for electric vehicles
Output Current: 160A for basic model, 230A, 320A, 360A, 480A and other specifications are also available
Charging Mode: DC fast charging technology, which significantly shortens charging time
Service and Delivery Information
Warranty: 1 year professional after-sales protection
Delivery cycle: 10-30 days flexible delivery (adjusted according to the order demand)
Appearance customization: the standard color is white, gray, support for customized color and appearance design
Advantages of the company and customized services
Relying on its own production plant and mature design, pre-sales and after-sales team, we can provide a full range of personalized customization:

Brand identity customization (e.g. logo engraving)
Exclusive adjustment of appearance color and size
Functional modules on-demand adaptation (to meet the charging needs of different models)

Model:
SMART
Brand:
hmhipech

Quantity:
Availability:





Inquire Add to Basket

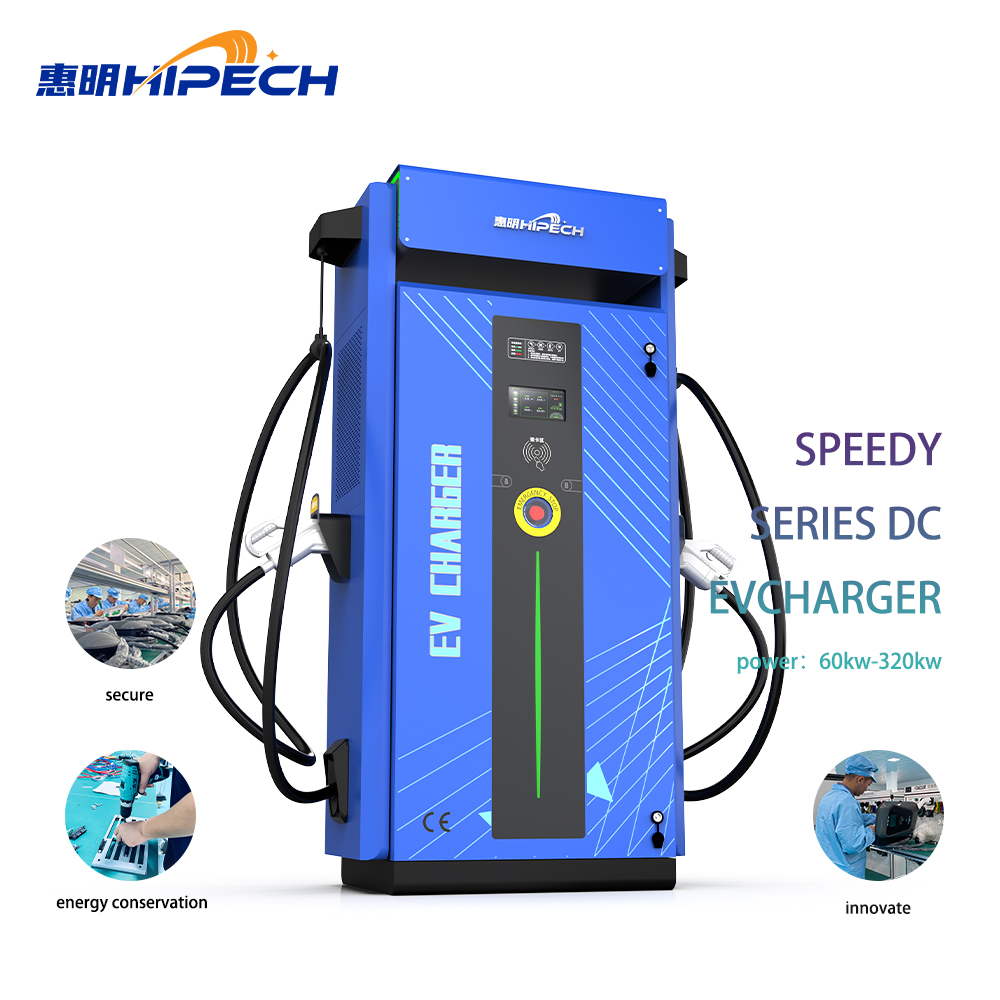

60KW-320KW SMART DC EV Charger

The device adopts a modularized architecture and covers a power range of 60KW to 320KW, which facilitates rapid on-site deployment as well as flexible capacity upgrading. The product is compatible with both CCS2/GBT DC and TYPE2/GBT AC charging standards, and integrates one to three charging guns to meet diversified charging needs. Customized for overseas high-end markets, the innovative sheet metal process ensures a solid and durable structure with IP65 protection, which can be adapted to a variety of complex environments. It is equipped with industrial-grade electrical components and multiple safety protection mechanisms. In addition, it is equipped with a cable reel device as standard, which effectively solves the problem of charging cable storage and keeps the scene of use neat and orderly.

Product Video

Current Leak Protection

First-rate >
Leakage Ground

First-rate >
Over Current Protection

First-rate >
Over Temperature Protection

First-rate >

Lightning Protection

First-rate >
Over Voltage Protection

First-rate >
Short Circuit Protection

First-rate >
Voltage Fluctuation Protection

First-rate >

Fast Charging

Wide output voltage range, adapting to a variety of equipment scenarios;
High energy conversion efficiency, reducing power loss;
Low standby power consumption, reducing energy consumption in idle state;
Comprehensive optimization of operating costs, achieving long-term energy-saving benefits.

60KW-320KW SMART DC EV Charger

High-quality appearance
adopts the unique design of Zhenxuan series, simple and fashionable, finely polished, taking into account the quality and value.
Safe and reliable
Multiple protections for short circuit / overheat / emergency stop
Double shells of galvanized steel + anti-rust spraying

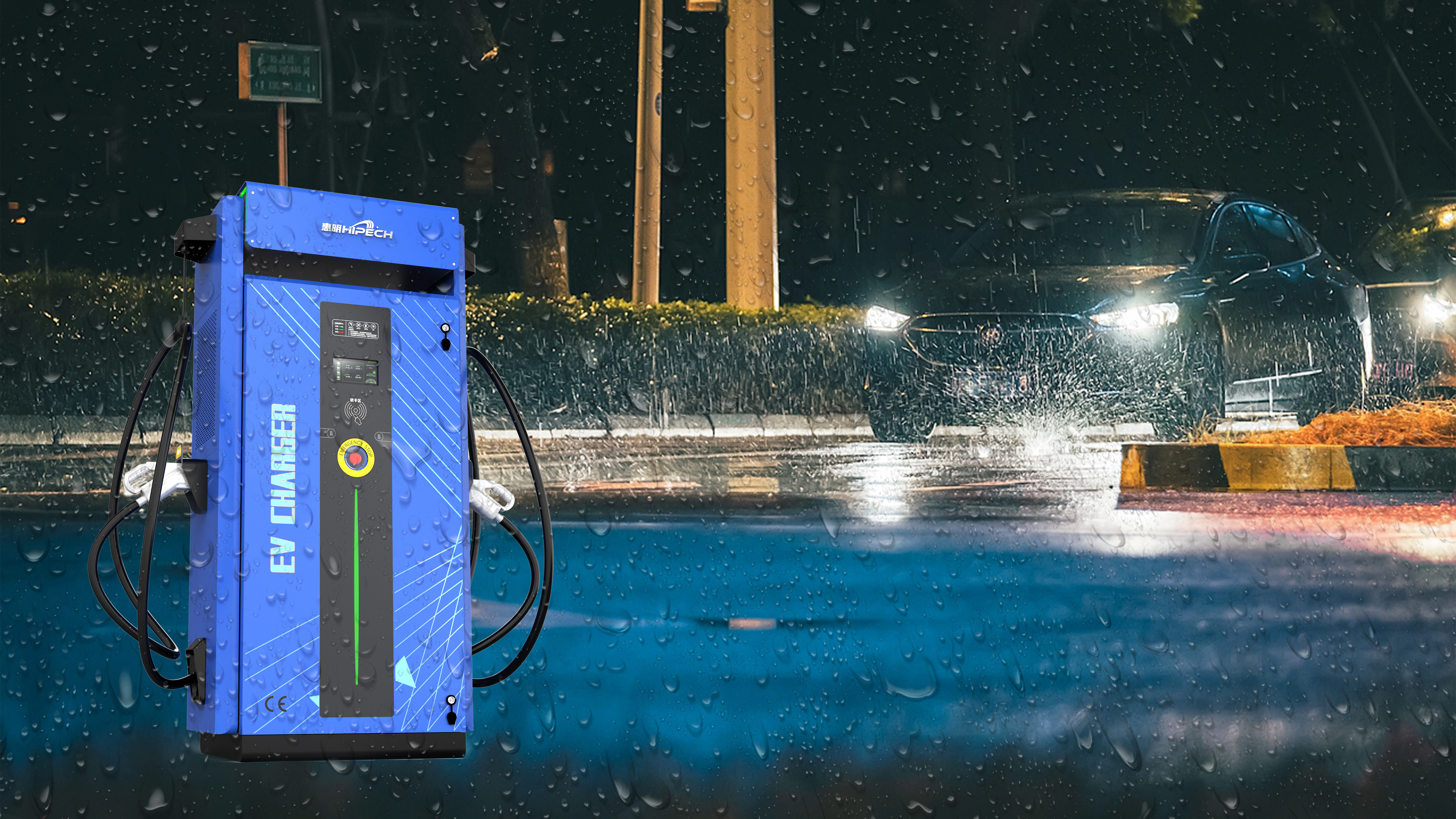

IP54 protection, adapting to outdoor environments
Reasonable layout + unique air ducts, low failure rate
Intelligent Interaction
7-inch color screen, easy to operate
Ethernet/4G communication
Sweeping / swiping / ViN, etc., multiple start-up modes
Charging modes such as auto charging / charging according to the amount of electricity

Pulg And Charger

Supports CCS2/GBT DC standard, more flexible charging!

App Control

Support to connect with customer's ocpp 1.6 APP. Support cell phone APP for charging, settlement and other operations.

Ocpp System

Support OCPP1.6 system, user interaction can be controlled and managed through 7-inch touch screen and their own OCPP APP, which can realize human-computer interaction.

Application Scenario

About Us

EV Charging Emergency Solution DC EC Charger Station Smart 60KW-240KW DC EV charger 60KW to 240KW Portable EV Charging Applied to charging piles in highway service areas DC EV Charger

Related Products

Dc Charger Ev Fast 240kw 250kw 300kw 360kw 400kw Charging Station with Advertising Screen

60KW-320KW THUNDER DC Ev Charger Station Two Guns Type Electric Car Charging Station

Fuel Dispenser with tank for Gas Stations and Commercial Use and Fuel Pump Dispenser

7kw AC EV Charger Station with Screen Bluetooth

SWIFT Column Type with Single Gun 40KW Small DC EV Charger

360KW-480KW Split flexible charging stack

Speedy 60KW-240KW DC EV Charger Station

For any additional inqueries feel free to write us at :

vickie@hipech.com

Quick Links

Charging Solutions

Product Category

Contact Us

+8618668973639

+86-15650062517

vickie@hipech.com

Room 610, Building 8, Shangang Xintiandi, No. 61, Gongye South Road, Jinan Area, China (shandong) Pilot Free Trade Zone1

Product model	SF4-080-2	SF4-120-2	SF4-160-2	SF4-180-2	SF4-240-2
Rated power	40kw	60kw	80kw	100kw	120kw
output current range	0-100A	0-125A	0-200A	0-250A	0-250A
Input voltage	380Vac±15%	380Vac±15%	380Vac±15%	380Vac±15%	380Vac±15%

Model	HM60DCD1、HM80DCE1、HM120DCF1、HM160DCG1、HM180DCH1、HM240DCI1
Prower	380Vac+10%(L1+L2+L3+N+PE)
Current	60~240A
Color	White , gray
Temperature	-20~50℃/5%~95%
Protection level	≥IP54
Protection	Overvoltage, undervoltage, overcurrent, adhesion detection, insulation , lightning , emergency stop
Environment	No pollution, such as salt, acid, smoke, etc
Storage temperature	-40~80℃
Altitude	<2000m
Cable length	5m(Optional)
Size	768mm665mm1800mm
Weight	325KG
Authentication	Third party type testing

Product model	SF4-080-2	SF4-120-2	SF4-160-2	SF4-180-2	SF4-240-2
Rated power	40kw	60kw	80kw	100kw	120kw
output current range	0-100A	0-125A	0-200A	0-250A	0-250A
Input voltage	380Vac±15%	380Vac±15%	380Vac±15%	380Vac±15%	380Vac±15%

Model	HM60DCD1、HM80DCE1、HM120DCF1、HM160DCG1、HM180DCH1、HM240DCI1
Prower	380Vac+10%(L1+L2+L3+N+PE)
Current	60~240A
Color	White , gray
Temperature	-20~50℃/5%~95%
Protection level	≥IP54
Protection	Overvoltage, undervoltage, overcurrent, adhesion detection, insulation , lightning , emergency stop
Environment	No pollution, such as salt, acid, smoke, etc
Storage temperature	-40~80℃
Altitude	<2000m
Cable length	5m(Optional)
Size	768mm665mm1800mm
Weight	325KG
Authentication	Third party type testing
