Speedy 60kw/90kw/120kw/150kw/180kw/240kw Electric Car Charger Dc Ev Charger Fast Charging Station

We are proud to introduce our DC EV Charging Station, specifically designed for electric car charging.
It features a standard output current of 160A, with optional higher currents of 230A, 320A, 360A, and 480A to meet various charging needs.
The charging mode is DC Fast, ensuring efficient and rapid charging.
Our product comes with a 1-year warranty and a lead time of 10-30 days.
It is available in white and gray, and we also offer customized colors.
As we have our own production factory and a mature design, pre-sales, and after-sales team, we can provide customization according to customer requirements, such as logo, color, size, etc.
  • Speedy

  • hmhipech

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

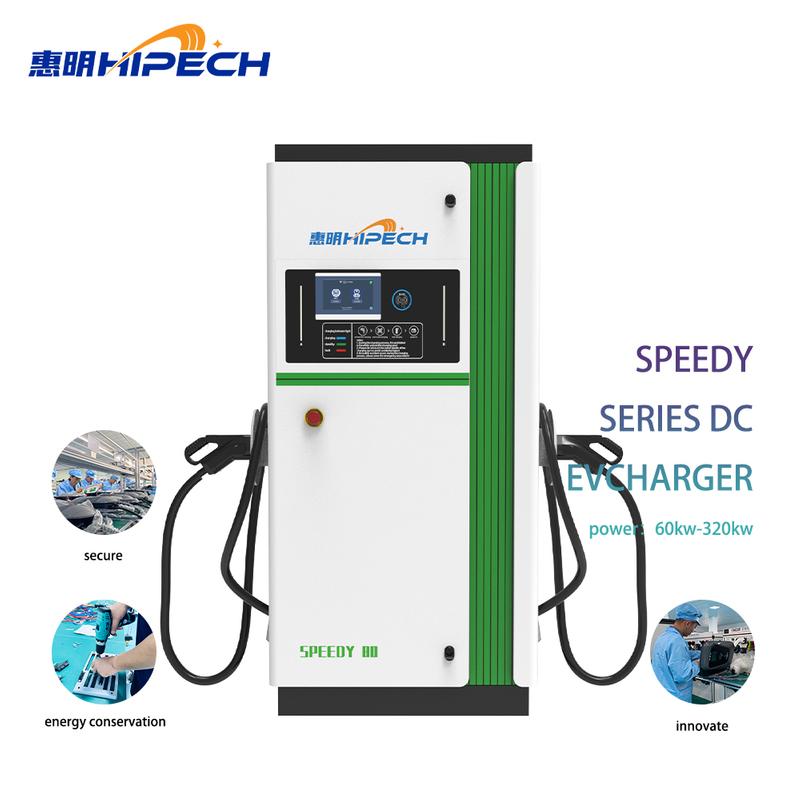

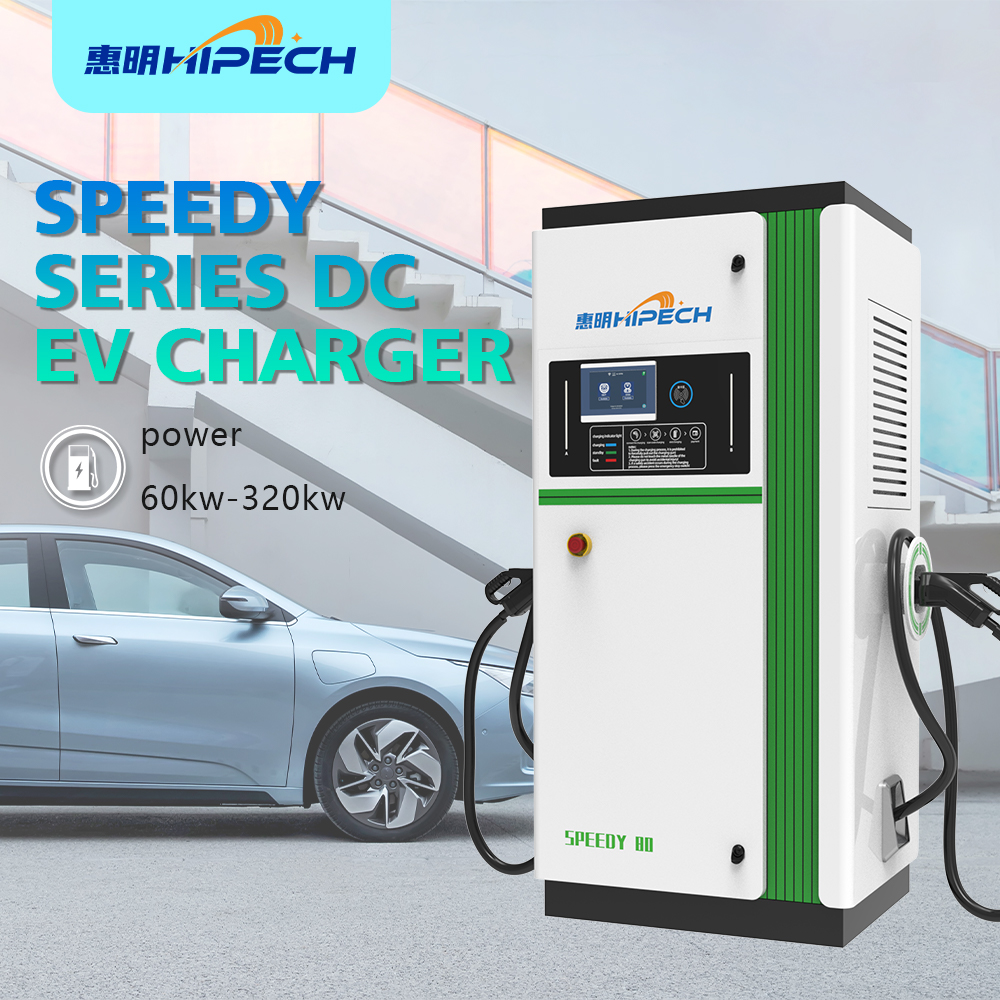

Speedy 60KW-240KW DC EV Charger Station
      The product boasts the distinctive design features of the Zhenxuan series. It is characterized by its simplicity, trendiness, and meticulous finishing, achieving a harmonious blend of superior quality and attractive appearance.

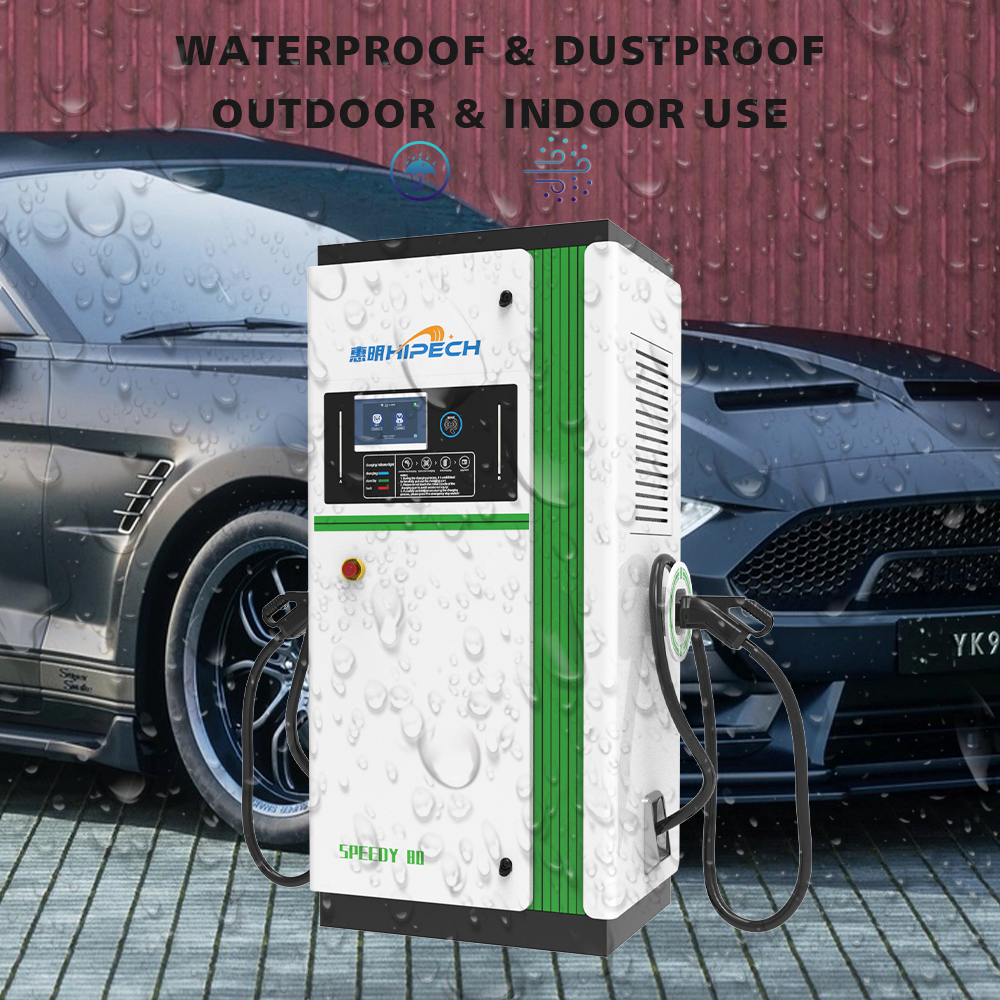

      In terms of safety and reliability, it is equipped with multiple safeguard functions, including protection against short circuits, overheating, and an emergency stop mechanism, offering comprehensive protection. The product features a dual-shell protective design, combining high-quality galvanized steel plates with anti-rust spray treatment. It has an IP54 protection rating, making it well-suited to handle complex outdoor weather conditions. Additionally, the product benefits from a rational structural layout, a unique air duct design, and a low failure rate.

Product Video
Energy saving and high efficiency

Wide output voltage range, high output efficiency, low standby power consumption, reduce operating costs.
Safe and Reliable

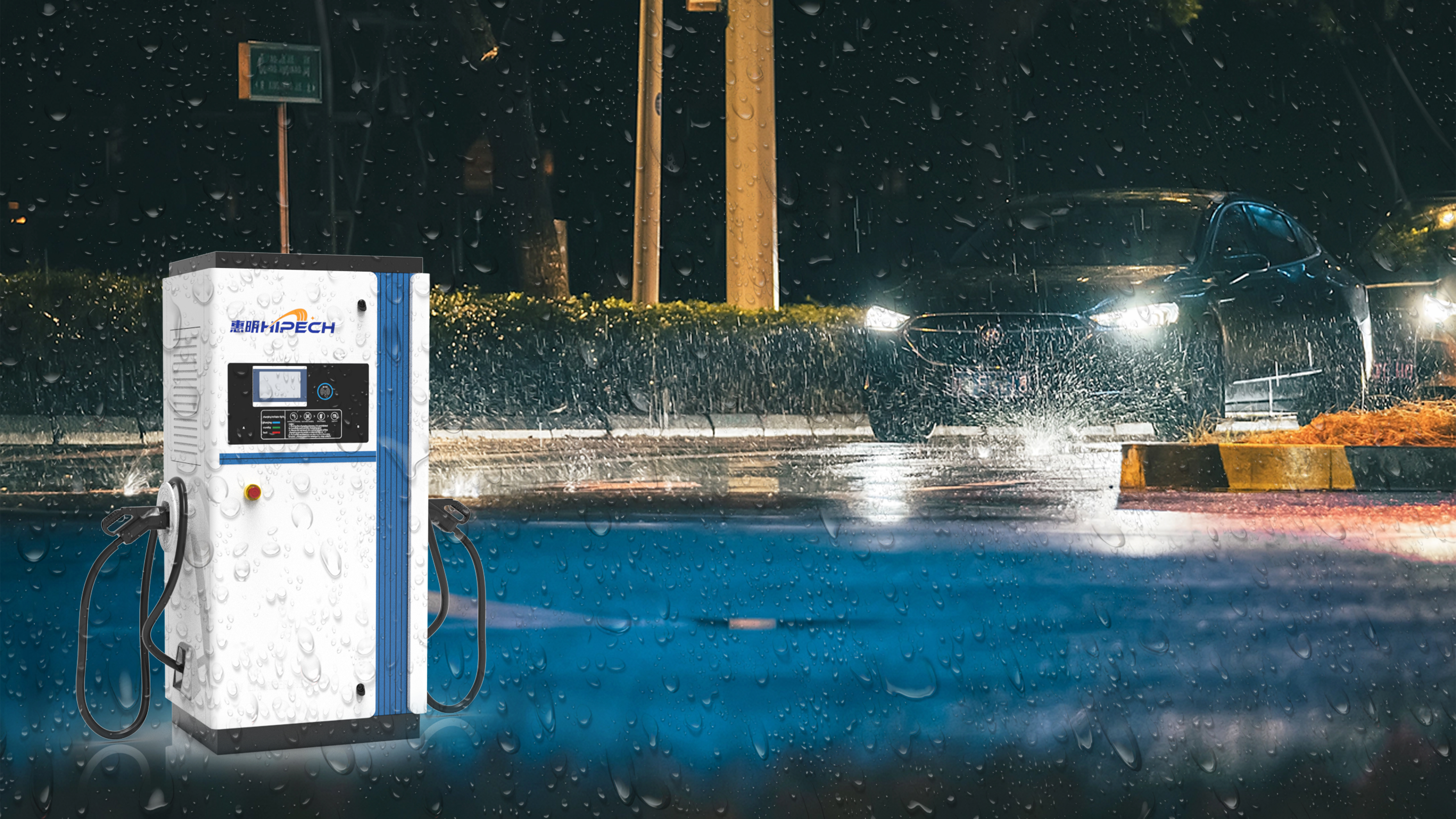

It is equipped with a variety of protection functions such as short circuit, overheating, emergency stop, etc. to provide a full range of protection;High-quality galvanized steel + anti-rust spraying double-layer shell protection design;Protection level of IP55, good adaptability to complex outdoor climatic environments;Reasonable structural layout, unique air duct design to reduce the failure rate.
Pulg And Charger
The DC EV Charging Station supports the CCS2/GBT DC standard, offering more flexible charging options.
App Control
It supports connection with the customer's OCPP 1.6 app and also supports cell phone apps for charging, settlement, and other operations.
Ocpp System
The system supports OCPP 1.6 and allows for user interaction to be controlled and managed via a 7-inch touch screen and their own OCPP app, enabling human-computer interaction.


Application Scenario



About Us



ModelHM60DCD1、HM80DCE1、HM120DCF1、HM160DCG1、HM180DCH1、HM240DCI1
Prower380Vac+10%(L1+L2+L3+N+PE)
Current60~240A
ColorWhite , gray
Temperature-20~50℃/5%~95%
Protection level≥IP54
ProtectionOvervoltage, undervoltage, overcurrent, adhesion detection, insulation , lightning , emergency stop
EnvironmentNo pollution, such as salt, acid, smoke, etc
Storage temperature-40~80℃
Altitude<2000m
Cable length5m(Optional)
Size768mm*665mm*1800mm
Weight325KG
AuthenticationThird party type testing

Input Current Rating AC 290A (AC 240A for 150kW output and AC 190A for 120kW output)
Power Factor ≥0.98 @ Full Load
Efficiency95%
Grid Type TN-S, TN-C, TN-C-S, TT, IT
Output Interface CCS2+CCS2 or CCS2+CHAdeMO
Output Power60KW-360KW
Output Voltage CCS2: 200-1000Vdc, CHAdeMO: 200-500Vdc
Output Current CCS2: 300A max., CHAdeMO: 125A max.
