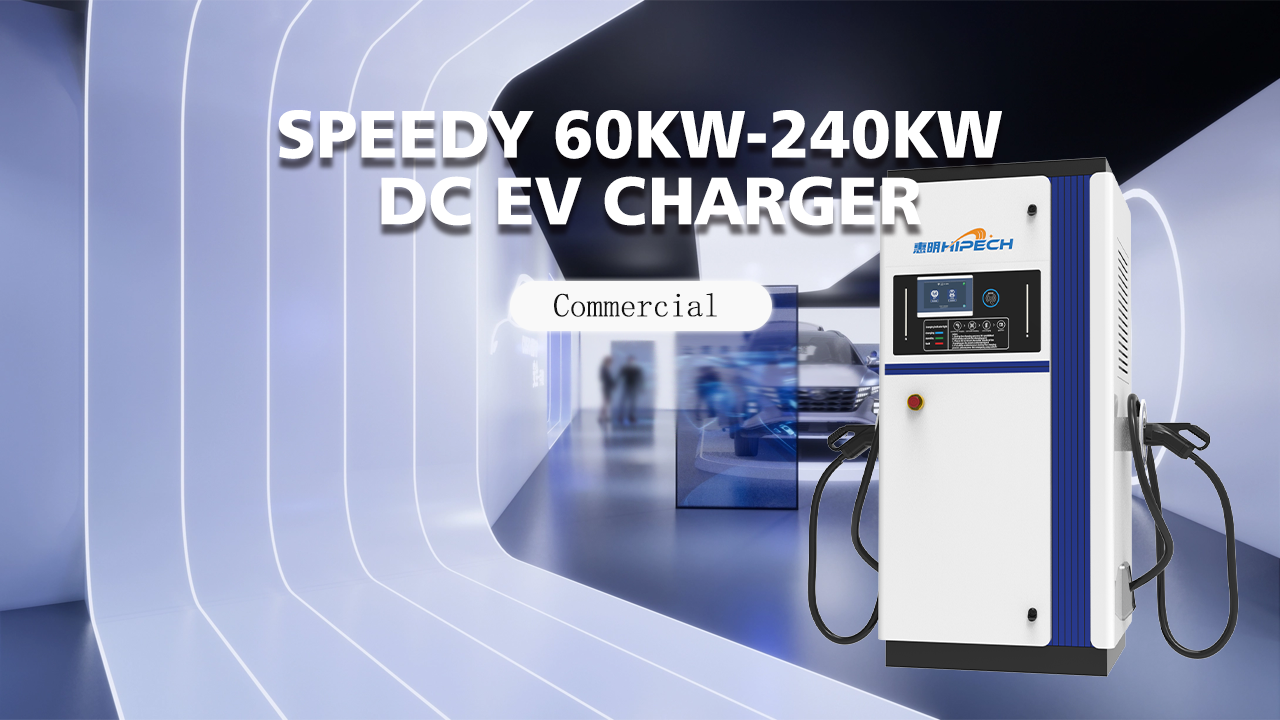

Speedy 60–240kW Dual‑Gun DC EV Charging Station | Fast Commercial EV Charger

The Speedy 60–240 kW DC EV Charging Station is a high-power, dual-gun fast charger designed for public parking lots, highway service areas, commercial garages, and fleet depots. Delivering scalable output from 60 kW to 240 kW, it allows two vehicles to charge simultaneously, improving throughput and operational efficiency.
It supports mainstream DC protocols (CCS2 / GB/T, optional CHAdeMO) for broad compatibility with global EV models. Built for continuous high-load operation, it features industrial-grade cooling, durable weatherproof enclosure, and full safety protections, suitable for indoor or outdoor installation.
  • Speedy

  • HMHIPECH

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Speedy 60–240kW Dual‑Gun DC EV Charging Station | Fast Commercial EV Charger
FAQ
Q1: Can two vehicles charge simultaneously?
A1: Yes, dual-gun design allows simultaneous charging.
Q2: Which charging standards are supported?
A2: CCS2, GB/T standard; CHAdeMO optional.
Q3: Can it be installed outdoors?
A3: Yes, IP54/IP55 rated, durable for outdoor conditions.
Q4: What payment and authentication methods are supported?
A4: Plug-and-charge, RFID card, QR code, app, card, backend system integration.
Q5: Is the power customizable?
A5: Yes, 60–240 kW output and all options can be customized to meet customer needs.
Product Video
Application Scenarios
Public parking lots — Quick charging for visitors, enhance service experience.
Highway service areas  — Support long-distance travel with fast charging.
Fleet depots  — High-frequency, simultaneous charging for multiple vehicles.
Commercial buildings — Centralized charging management and payment.
Urban EV infrastructure — Support smart city green transportation initiatives.
Why Choose Speedy 60–240kW
 High flexibility and power scalability
 Dual-gun design for efficient simultaneous charging
 Supports global EV standards and international deployment
 Industrial-grade reliability, suitable for outdoor and continuous operation
Smart OCPP connectivity, backend integration, flexible payment options
Cost-effective for commercial and public EV charging applications
Pulg And Charger
Built to support CCS2 and GBT DC charging standards, this charger delivers broader EV compatibility and a more flexible fast-charging experience for users.
App Control
Fully supports OCPP 1.6 and mobile APP control, giving users convenient access to charging, payment, and more smart features anytime, anywhere.
Ocpp System
Built with OCPP 1.6 support, the charger allows intuitive operation through its 7-inch touch screen and full remote management via the user’s OCPP APP, delivering a smarter and more connected charging experience.


Application Scenario



About Us



ModelHM60DCD1、HM80DCE1、HM120DCF1、HM160DCG1、HM180DCH1、HM240DCI1
Prower380Vac+10%(L1+L2+L3+N+PE)
Current60~240A
ColorWhite , gray
Temperature-20~50℃/5%~95%
Protection level≥IP54
ProtectionOvervoltage, undervoltage, overcurrent, adhesion detection, insulation , lightning , emergency stop
EnvironmentNo pollution, such as salt, acid, smoke, etc
Storage temperature-40~80℃
Altitude<2000m
Cable length5m(Optional)
Size768mm*665mm*1800mm
Weight325KG
AuthenticationThird party type testing
