4-Nozzle LCD Fuel Dispenser Machine for Gas Station Operations

Core Features of 4-Nozzle LCD Fuel Dispenser for Commercial Operations

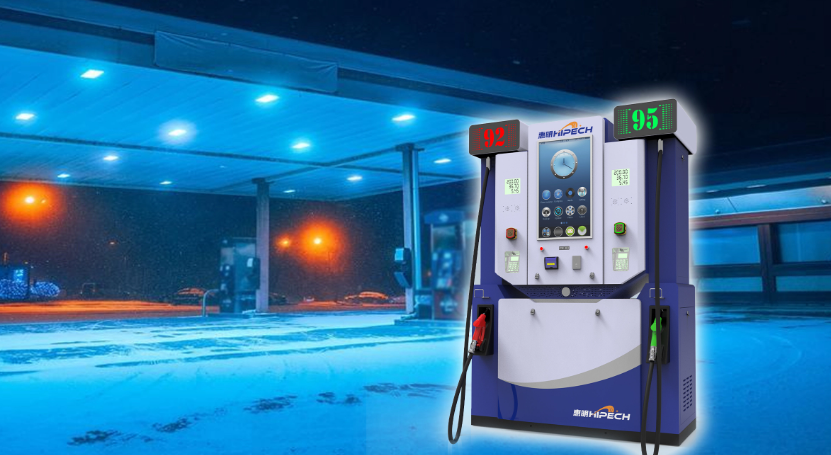

The H8 fuel dispenser integrates a high-definition LCD display interface that presents transaction data, fuel volume measurements, and pricing information in a structured visual format. The central display panel supports multi-function operation through an icon-based interface, allowing station attendants to monitor multiple fueling sessions simultaneously. This configuration supports simultaneous fuel delivery for up to four vehicles, reducing wait times during peak service hours for commercial fueling locations.

LCD Display Interface for Real-Time Transaction Monitoring Each fueling position includes a secondary digital display showing volume dispensed, unit price, and total transaction amount. The main LCD screen provides centralized control over all four nozzles, with dedicated function buttons for mode selection, transaction management, and system diagnostics. Display units show measurements in liters with corresponding monetary values, supporting transparent transaction recording for business operations.

4-Nozzle Dual-Product Fuel Delivery Architecture This unit supports two distinct fuel products through four independent dispensing nozzles, with dedicated product displays (92 and 95 grade indicators) mounted above each fueling position. Each nozzle connects to a 4.5-meter hose, providing sufficient reach for vehicle positioning within standard fueling bays. The dual-product configuration enables stations to serve different fuel grade requirements without requiring separate dispensing units. Flow Stabilization Technology Integration The system incorporates flow regulation technology that maintains consistent delivery rates across varying pressure conditions. Each nozzle operates independently, allowing concurrent fueling sessions without cross-interference in measurement accuracy. The flow metering system records volume dispensed with precision tracking for each transaction.

Technical Specifications for 4-Nozzle Fuel Dispensing Unit

Flow Meter	Fuel Pump System	Automatic Nozzle

Safety Protection Systems for Industrial Fuel Dispensing

Electrical Safety Mechanisms

The electrical system includes current leak protection that detects abnormal current flow to ground. Over current protection activates when electrical load exceeds rated thresholds. Additional protection includes over voltage safeguards, short circuit detection, voltage fluctuation compensation, and over temperature monitoring. Lightning protection circuitry mitigates damage from electrical surges caused by atmospheric conditions.

Physical Safety Components

Each nozzle assembly includes breakaway couplings that separate under excessive force, preventing hose rupture and fuel spillage if a vehicle drives away with the nozzle inserted. An emergency stop switch provides immediate manual shutdown capability for all dispensing functions. The ESD (Electrostatic Discharge) system dissipates static electricity buildup during fuel transfer operations.

Pump Configuration Options for Gas Station Infrastructure

Three pump configurations are available to match different station infrastructure requirements, each designed for specific installation conditions and volume demands.

The gear pump configuration uses interlocking gear mechanisms for fluid transfer, suitable for stations with above-ground storage tanks where suction lift requirements fall within standard operating ranges. This configuration supports consistent flow rates for standard volume fueling operations.

The submersible pump option places the pumping mechanism within the storage tank, eliminating suction lift limitations and supporting higher volume delivery rates. This configuration reduces noise levels at the dispenser unit and supports longer piping distances between tank and dispensing position.

The combined pump configuration integrates multiple pumping functions into a single assembly, providing a compact solution for stations with limited equipment space. This configuration supports both suction and delivery capabilities within a unified mechanical assembly.

Target Applications for Commercial Fuel Operations

This 4-nozzle fuel dispenser serves multiple commercial fueling scenarios. For standalone gas stations and multi-site fuel station networks, the four-nozzle configuration increases service capacity per dispensing unit, supporting higher customer throughput during peak operating hours. Dual-product capability allows stations to offer multiple fuel grades from a single footprint.

For fleet operators with centralized fueling facilities, the system supports simultaneous fueling for multiple commercial vehicles, reducing fleet downtime during refueling operations. Transaction tracking capabilities support fleet management record-keeping and cost allocation.

For industrial and commercial facilities with on-site fueling infrastructure, the dispenser supports bulk fueling for heavy equipment, delivery fleets, and facility vehicles. The multiple protection systems support continuous operation in industrial environment conditions.

FAQ about 4-Nozzle Fuel Dispensers

What pump configurations are compatible with this fuel dispenser model?

Three pump configurations are available: gear pump, submersible pump, and combined pump. Selection depends on storage tank placement, piping distance, and volume requirements for each specific installation.

What safety mechanisms are included in the standard configuration?

Standard safety features include breakaway couplings, emergency stop switch, ESD device, current leak protection, over current protection, over voltage protection, short circuit protection, lightning protection, over temperature protection, and voltage fluctuation protection.

What are the installation dimensions and weight specifications?

The unit measures 1780 × 900 × 2540 mm with a gross weight of 380 kg. Installation requires standard concrete pad preparation and electrical connection to station power systems.

Which commercial operations can deploy this fuel dispensing equipment?

This dispenser serves gas station operations, fleet management facilities, industrial on-site fueling centers, and commercial fuel distribution locations requiring multi-product, multi-nozzle fuel delivery capability.
