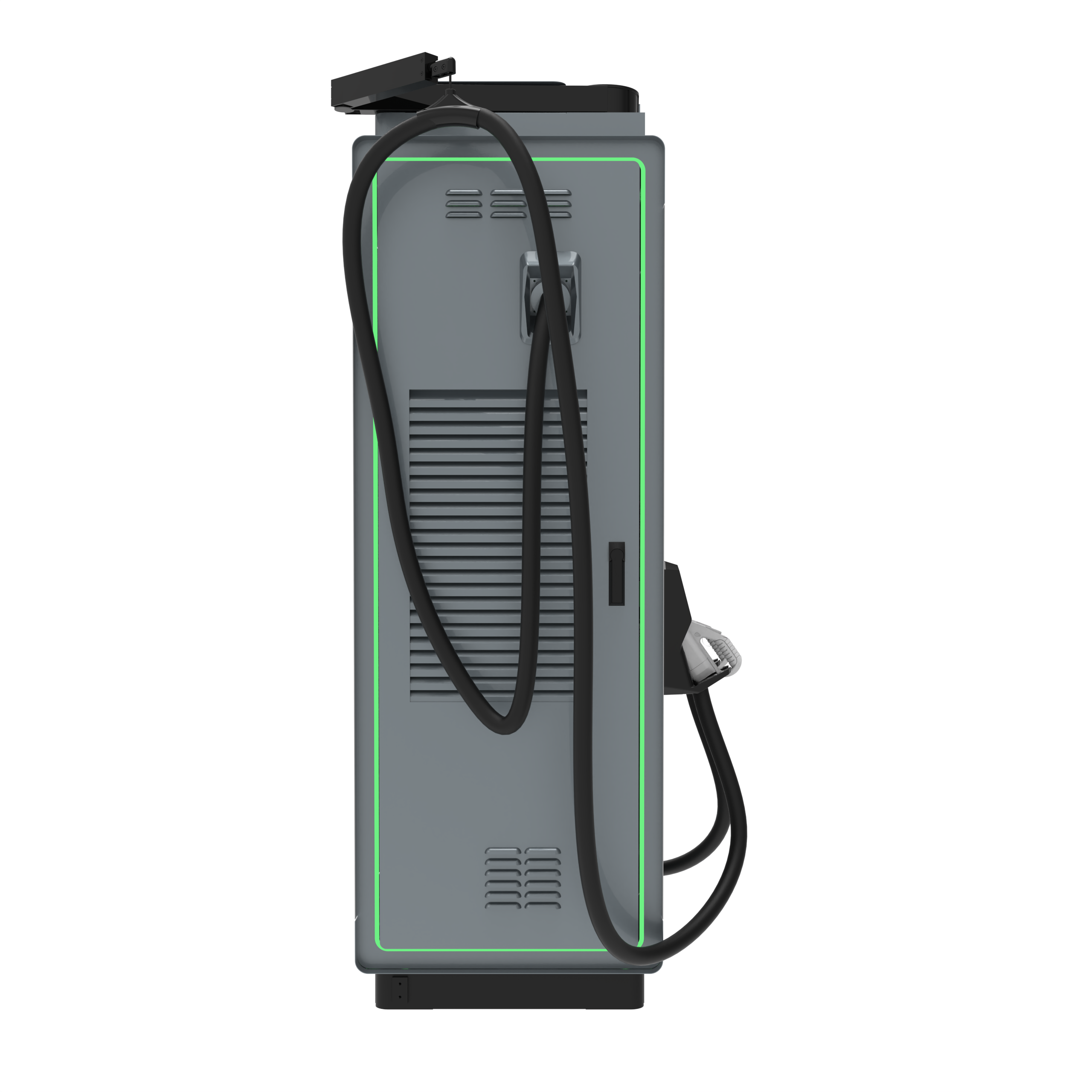

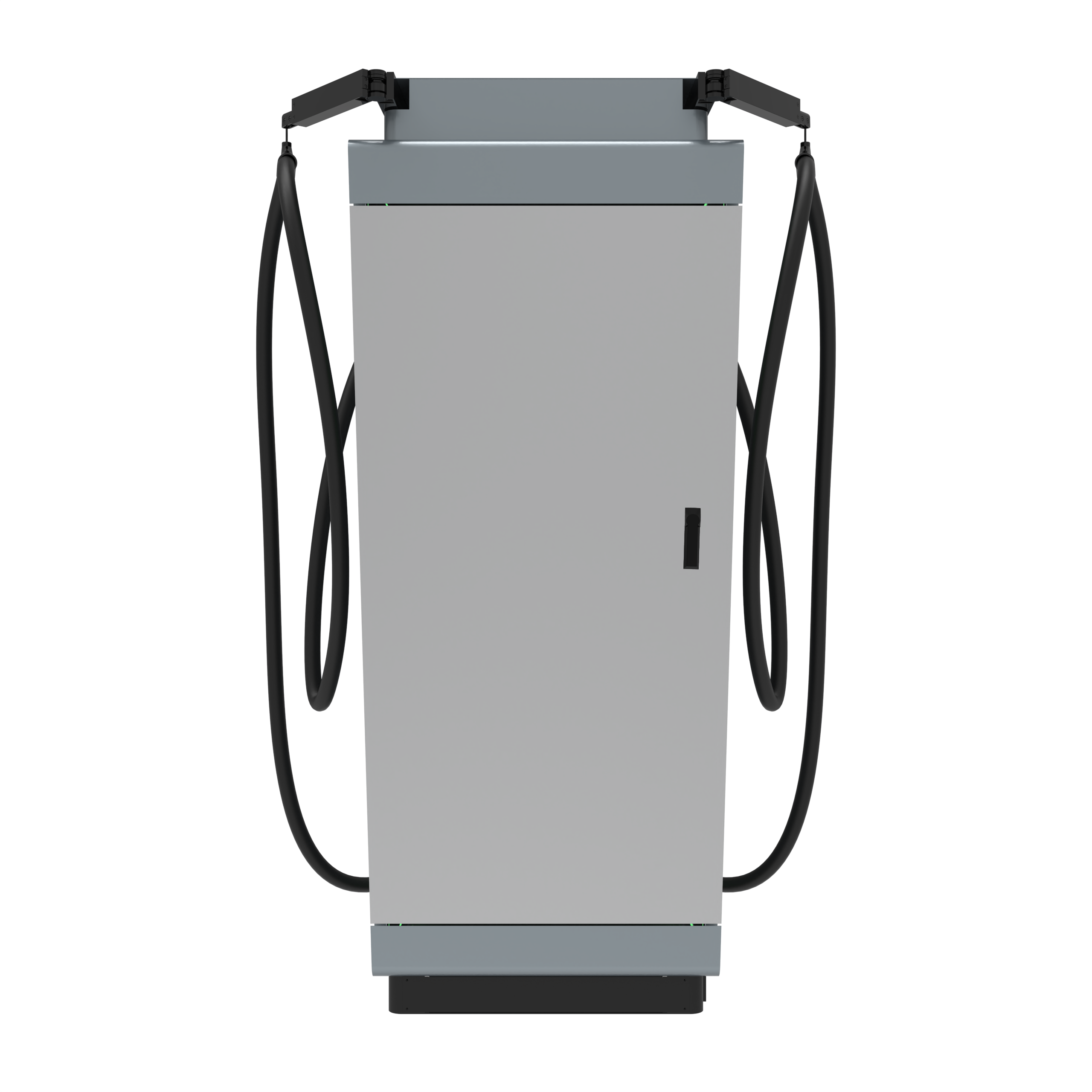

THUNDER PRO 60–240kW DC EV Charging Station Ev Charger with OCPP 1.6, CCS2 & GB/T Support Car Charger

THUNDER PRO 60–240 kW DC EV Charging Station – Key Features

  • Power Range: Adjustable DC output from 60 kW to 240 kW, suitable for various EV charging demands

  • Dual-Gun Design: Supports simultaneous charging of two vehicles, improving station efficiency

  • Wide Compatibility: Supports CCS2 and GB/T DC standards, CHAdeMO optional

  • User Interface: Equipped with a 7-inch touch display for clear and intuitive operation

  • Cable Length: 7-meter charging cables for flexible parking and easy installation

  • Reliable Performance: Industrial-grade components with advanced cooling system

  • Outdoor Ready: Weather-resistant enclosure for long-term, stable operation

  • THUNDER PRO

  • HMHIPECH

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
THUNDER PRO 60–240kW DC EV Charging Station Ev Charger with OCPP 1.6, CCS2 & GB/T Support Car Charger

Manufacturer Description

We are a professional manufacturer specializing in DC EV charging stations and integrated charging solutions, with strong capabilities in sheet metal fabrication, electrical assembly, and system integration.

Our factory adopts industrial-grade production standards and strict quality control processes, ensuring stable performance, high safety, and long service life of each charging station. With extensive experience in overseas markets, our products are widely used in commercial, public, and infrastructure EV charging projects worldwide.

We provide OEM & ODM services, flexible configurations, and reliable technical support to meet the diverse requirements of global partners.

Applications

  • Public EV charging stations

  • Highway service areas and rest stops

  • Commercial parking lots and shopping centers

  • Fleet depots and logistics hubs

  • Industrial parks and business campuses

  • Urban and suburban EV charging infrastructure projects

Product Video
Product Advantages:
Wide Power Range & Modular Design
Supports 60 kW to 320 kW DC output, modular architecture allows easy installation and flexible capacity expansion.

Multi-Standard Compatibility
Supports CCS2 / GB-T DC standards and Type 2 / GB-T AC standards, with integrated 1–3 gun design for flexible charging scenarios.

High-End Structural Design
Designed for overseas high-end markets, featuring a unique sheet metal manufacturing process for enhanced structural stability.

Reliable Outdoor Operation
IP54 protection level with industrial-grade electrical components, ensuring safe and stable operation in harsh environments.

Comprehensive Safety Protection
Built-in protections including overvoltage, undervoltage, overcurrent, insulation detection, lightning protection, adhesion detection, and emergency stop.

User-Friendly Cable Management
Standard gun cable reel design, keeping cables clean, organized, and convenient for daily use.
Pulg And Charger
This DC EV charging station supports CCS2 and GB/T DC charging standards, ensuring wide compatibility with electric vehicles and offering flexible, reliable charging solutions for different markets and applications.
App Control
Supports OCPP 1.6 protocol, enabling seamless connection with the customer’s mobile app for remote charging control, monitoring, and payment processing.
Ocpp System
Fully compatible with OCPP 1.6, supporting user interaction via a 7-inch touch screen and the customer’s OCPP mobile app for efficient charging management and control.

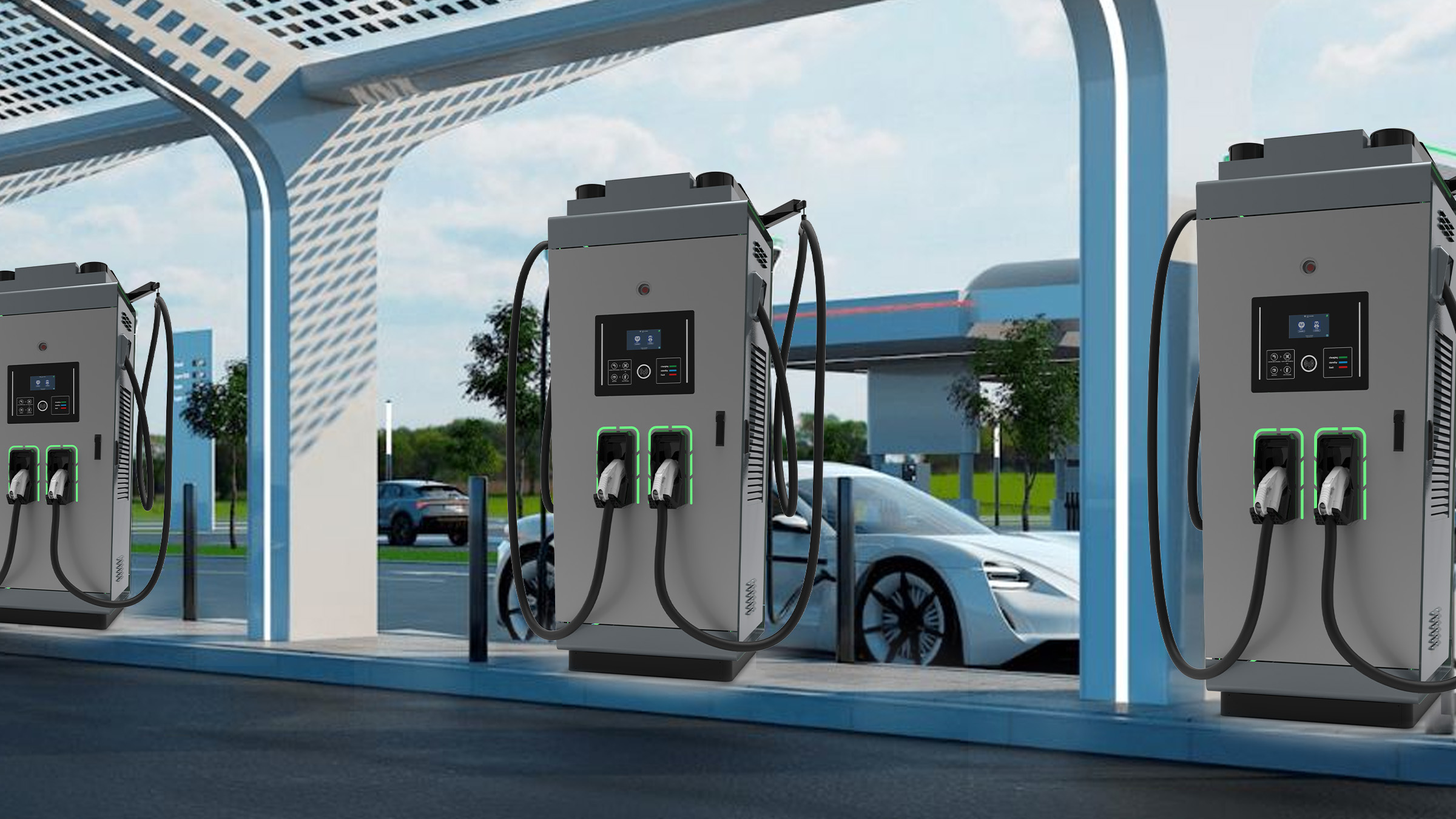

Application Scenario

  • Public Parking
  • Office Buding
  • Home Using
  • Commercial Using
  • Charging Station
  • Shopping Mall


About Us

Product model
SF4-060-2
SF4-080-2
SF4-120-2
SF4-160-2
SF4-280-2
SF4-240-2
Rated power
60kw
80kw
120kw
160kw
180kw
240kw
output current range
0-100A
0-125A
0-200A
0-250A
0-250A
0-250A
Input voltage
380Vac±15%
380Vac±15%
380Vac±15%
380Vac±15%
380Vac±15%
380Vac±15%
ModelYH60DCD1、YH80DCE1、YH120DCF1、YH160DCG1、YH180DCH1、YH240DCI1
Prower380Vac+10%(L1+L2+L3+N+PE)
Current60~240A
ColorWhite , gray
Temperature-20~50℃/5%~95%
Protection level≥IP54
ProtectionOvervoltage, undervoltage, overcurrent, adhesion detection, insulation , lightning , emergency stop
EnvironmentNo pollution, such as salt, acid, smoke, etc
Storage temperature-40~80℃
Altitude<2000m
Cable length5m(Optional)
Size768mm*665mm*1800mm
Weight325KG
AuthenticationThird party type testing


DC EV charging station 60kW 120kW 180kW 240kW EV charger OCPP 1.6 fast charging station CCS2 and GB/T DC charger dual gun DC fast charger commercial EV charging station
