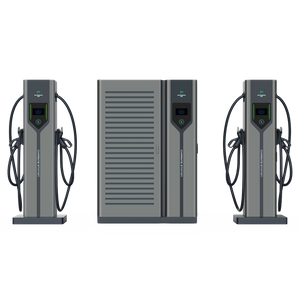

360KW-480KW Split flexible charging stack

1. Product name: DC EV Charging Station
2. Application:Electric Car Charging
3. Output Current:160A(230A/320A/360A/480A optional)
4. Charging Mode:Dc Fast
5. Warranty:1 years
6. Lead time:10-30 days
7. Color:White, gray, Customized Color
We have our own production factory and a mature design and pre-sales and after-sales team. We can provide customization according to customer requirements, such as logo, color, size, etc.
  • swift+

  • HMHIPECH

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


360KW-480KW Split flexible charging stack

High quality and high appearance: The productadopts the unique design elements of the Zhenxuan series, which is simple, fashionable, and finely polished,balancing quality and appearance.
Safe and reliable: With multiple protection functions such as short circuit, overheating, and emergency stop, it provides comprehensive protection; High qualitygalvanized steel plate+ anti rust spray dual shell protection design; lP54 protection level, well able tocope with complex outdoor climate environments; Reasonablestructural layout, unique air duct design, and low failure rate.

Product Video
Fast Charger

Energy efficiency highlights: a broad output voltage range, high operational efficiency, minimal standby power usage, and lowered running costs.
360KW-480KW Split flexible charging stack

Smart interaction features: a 7-inch color touchscreen for easy, intelligent human-machine interaction; various communication options like Ethernet and 4G; multiple startup ways including QR code scanning, card swiping, POS, and VIN; and diverse charging modes such as automatic full charge and battery-level-based charging.
Pulg And Charger
This DC electric vehicle charging station is compatible with both CCS2 and GBT DC standards, offering more flexible charging options.
App Control
The system links to the client's OCPP 1.6 application, enabling mobile apps to carry out operations such as starting charging and handling payments.
Ocpp System
Compatible with OCPP 1.6, the system enables human-computer interaction via two methods: a 7-inch touchscreen and the user's specific OCPP app.


Application Scenario



About Us



ModelYH360DCJ1、YH480DCK1
Prower380Vac+10%(L1+L2+L3+N+PE)
GunOne drag six, one drag eight, one drag twelve, one super fast, many super fast
Current60~240A
ColorWhite , gray
Temperature-20~50℃/5%~95%
Protection level≥IP54
ProtectionOvervoltage, undervoltage, overcurrent, adhesion detection, insulation , lightning , emergency stop
EnvironmentNo pollution, such as salt, acid, smoke, etc
Storage temperature-40~80℃
Altitude<2000m
Cable length5m(Optional)
Body Size1900mm*1420mm*945mm
Split sizet1500*672*270mm
